VIII-1-10 Traffic Graph
VIII-1-10 Traffic Graph

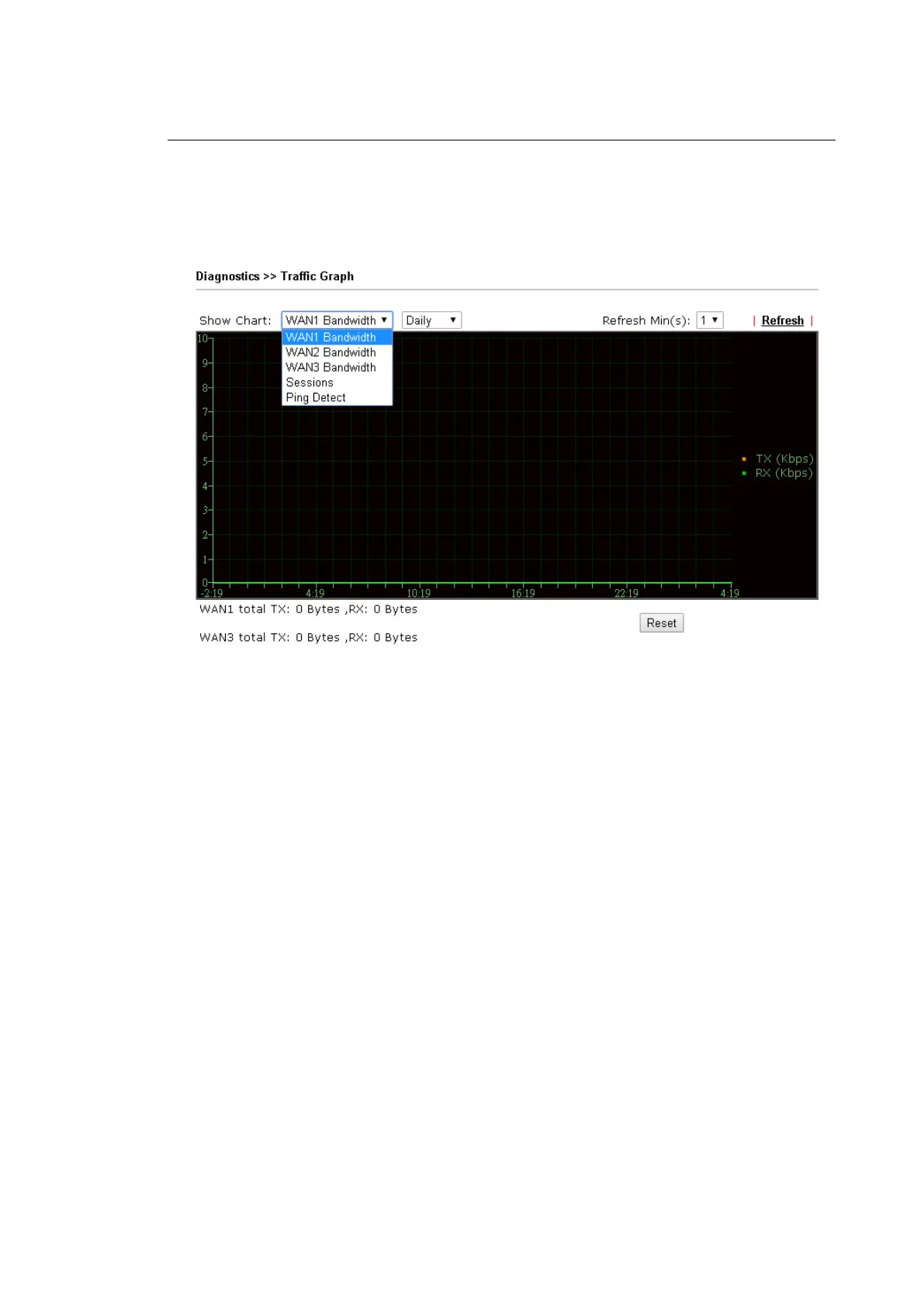

Click Diagnostics and click Traffic Graph to open the web page. Choose WAN1/WAN2/WAN3
Bandwidth, Sessions, daily or weekly for viewing different traffic graph. Click Reset to zero
the accumulated RX/TX (received and transmitted) data of WAN. Click Refresh to renew the
graph at any time.
The horizontal axis represents time. Yet the vertical axis has different meanings. For WAN1/
WAN2/WAN3 Bandwidth chart, the numbers displayed on vertical axis represent the
numbers of the transmitted and received packets in the past.
For Sessions chart, the numbers displayed on vertical axis represent the numbers of the NAT
sessions during the past.
Vigor2762 Series User’s Guide
411
