I-5 Dashboard
I-5 Dashboard

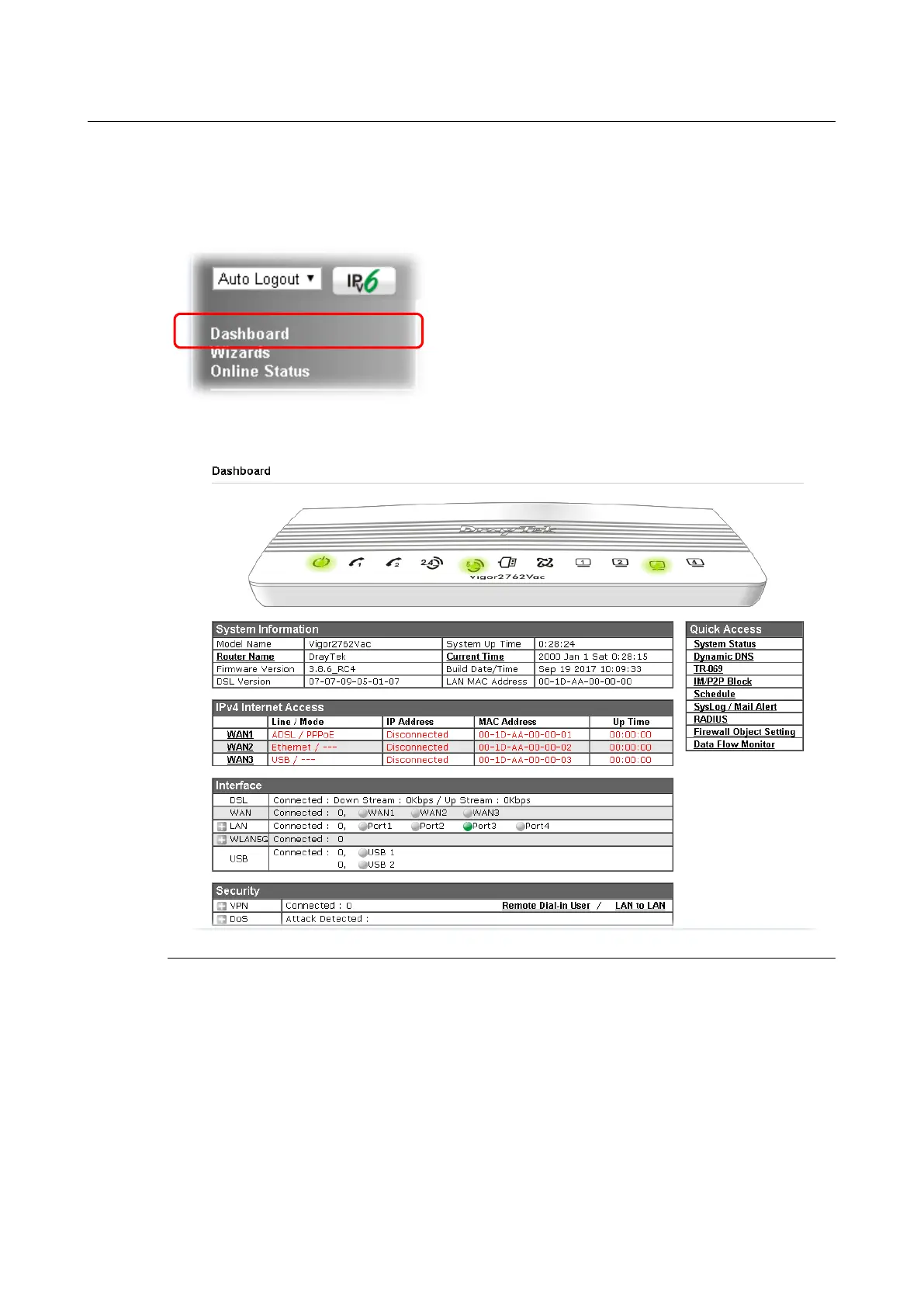

Dashboard shows the connection status including System Information, IPv4 Internet Access,
IPv6 Internet Access, Interface (physical connection), Security and Quick Access.
Click Dashboard from the main menu on the left side of the main page.
A web page with default selections will be displayed on the screen. Refer to the following
figure:
I-5-1 Virtual Panel
I-5-1 Virtual Panel
On the top of the Dashboard, a virtual panel (simulating the physical panel of the router)
displays the physical interface connection. It will be refreshed every five seconds. When you
move and click the mouse cursor on LEDs (except ACT), USB ports, LAN, or WAN, related
web setting page will be open for you to configure if required.
Vigor2762 Series User’s Guide
