Draytek Vigor2762 series User Manual

VIII-1-16 Route Policy Diagnosis
VIII-1-16 Route Policy Diagnosis

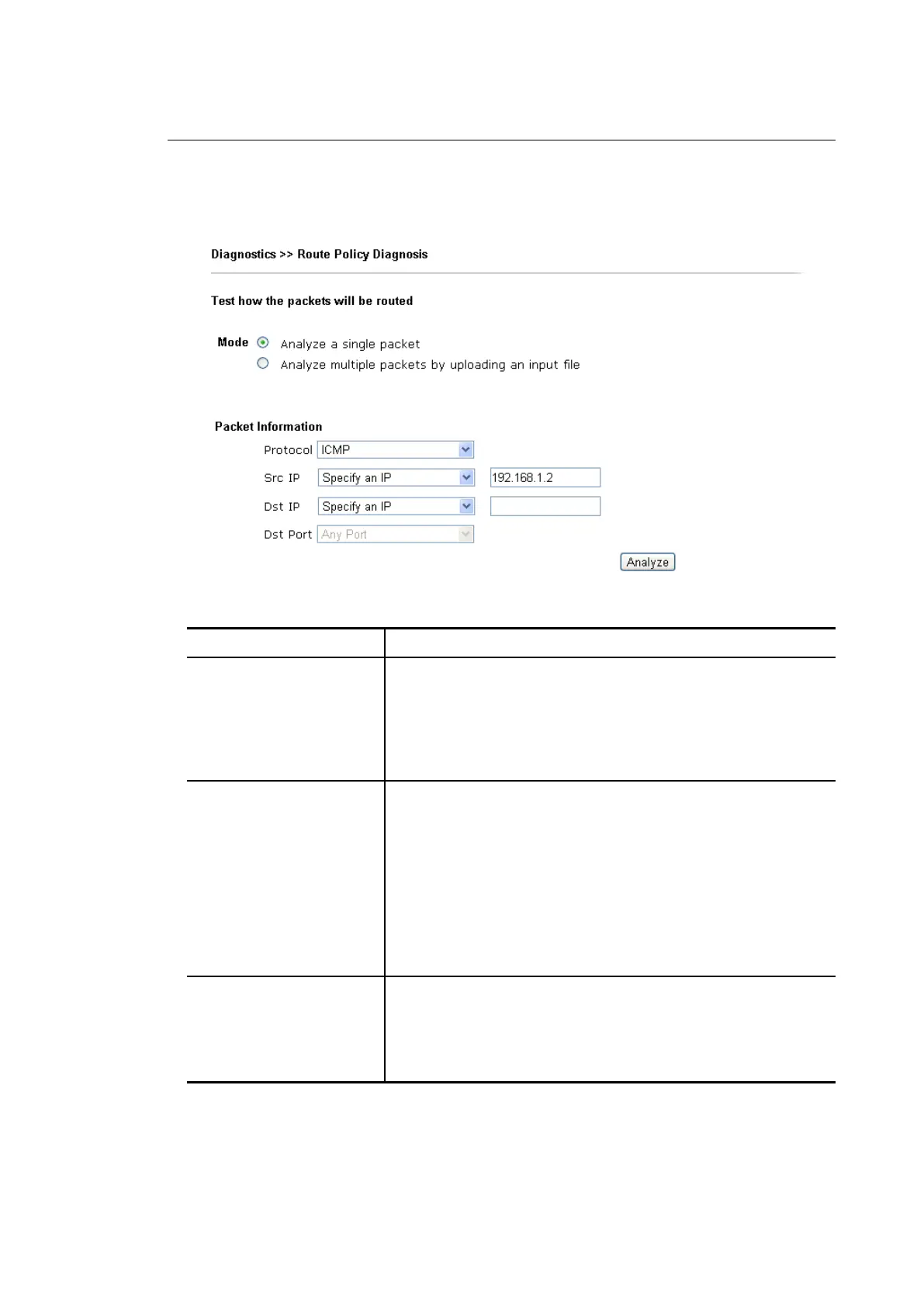

With the analysis done by such page, possible path (static route, routing table or policy
route) of the packets sent out of the router can be traced.
Available settings are explained as follows:
Item Description
Mode Analyze a single packet – Choose such mode to make Vigor
router analyze how a single packet will be sent by a route
policy.
Analyze multiple packets… - Choose such mode to make
Vigor router analyze how multiple packets in a specified file
will be sent by a route policy.
Packet Information Specify the nature of the packets to be analyzed by Vigor
router.
ICMP/UDP/TCP/ANY- Specify a protocol for diagnosis.
Src IP – Type an IP address as the source IP.
Dst IP – Type an IP address as the destination IP.
Dst Port – Use the drop down list to specify the destination
port.
Analyze – Click it to perform the job of analyzing. The
analyzed result will be shown on the page.
Input File It is available when Analyze multiple packets.. is selected as
Mode.
Select – Click the download link to get a blank example file.
Then, click such button to select that blank “.csv” file for
saving the result of analysis.
Vigor2762 Series User’s Guide
418
