Daily Maintenance
Daily Maintenance

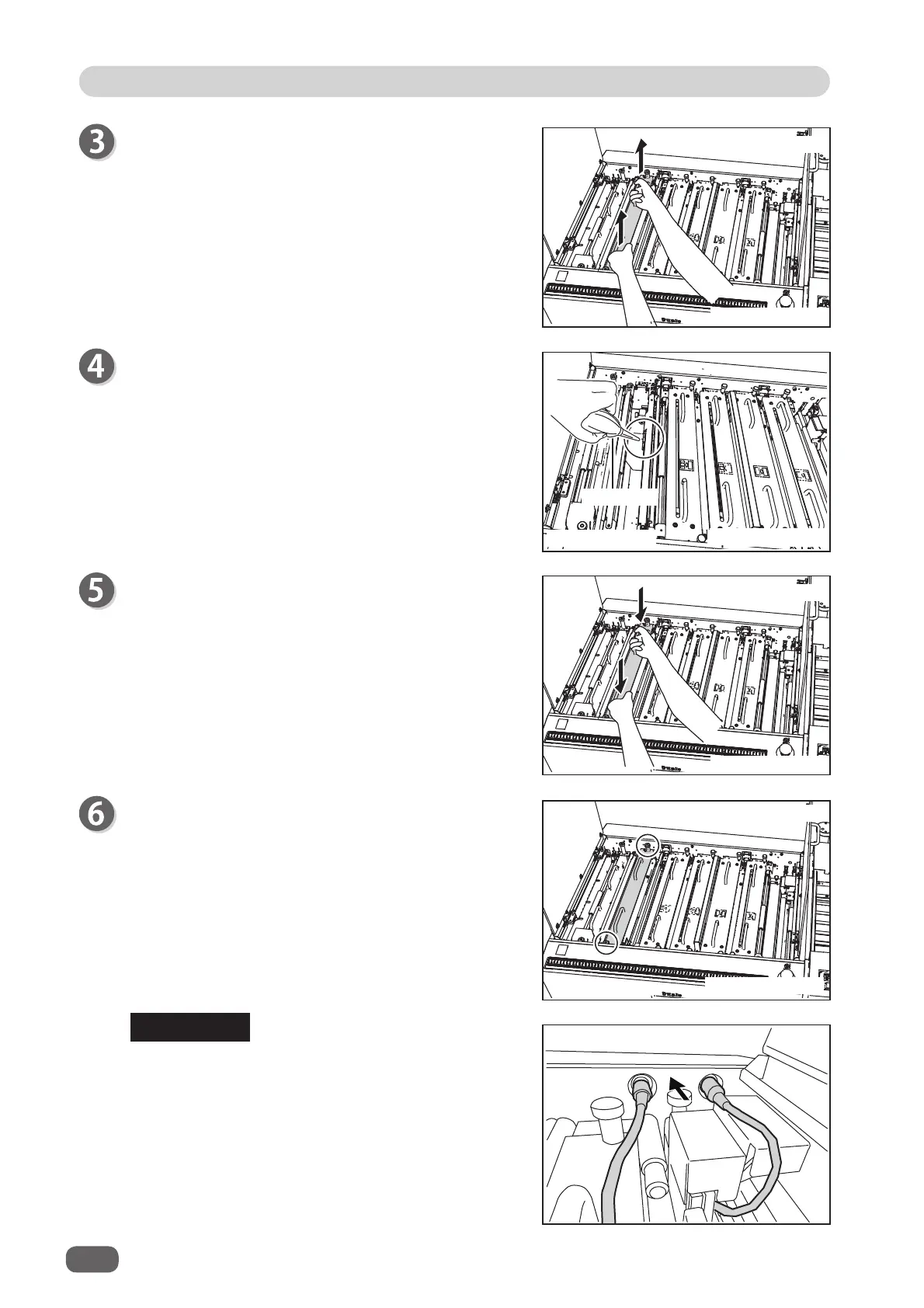

Grasp the handles to take out the
creaser module
by lifting it up.
Clean the sensor on the right side of the
creaser
module
with an air blower.
Slowly lower the
creaser module
in its position.
Check to see that the pins on both sides are
securely fi tted in the module.
Tighten the two fi xing screws of the
creaser
module
.
REFERENCE
Operator’s side
Connect the connector of the
creaser module
.
(The fi gure on the right shows a view from the
non-operator’s side;
• Left side connector:
Creaser module)
Air blower
Enlarged view
Creaser module
Operator’s side
Creaser module
Operator’s side
Creaser module
Operator’s side
Operator’s side
