Duplo DC-646 User Manual

8
Part Names and Their Functions

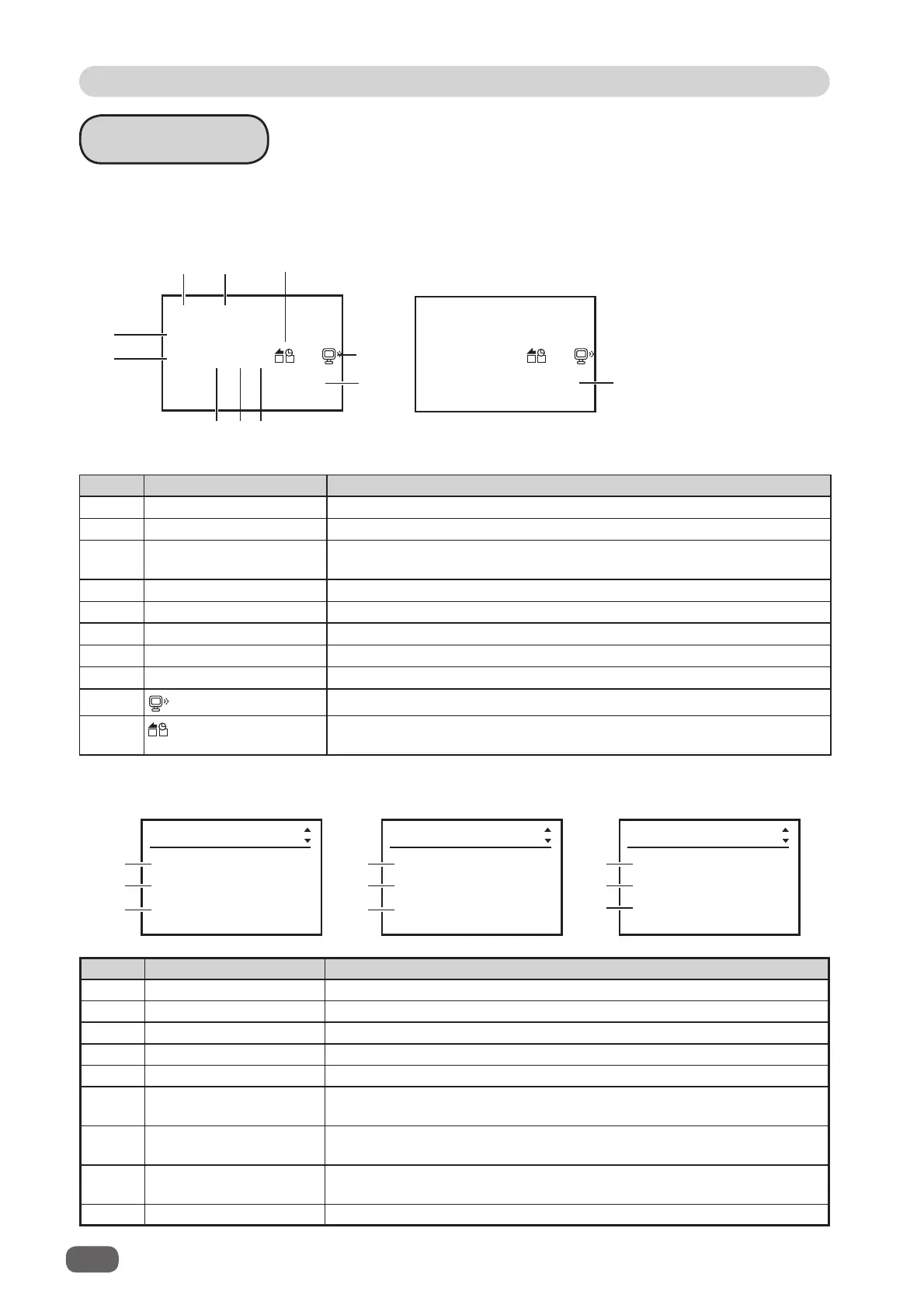

LCD Panel
No. Name Function
1 Retrieve JOB Retrieves saved JOB.
2 Enter JOB Enters and changes JOB.
3 Settings1 Changes functions of the machine.
4 Settings2 Changes functions of the machine.
5 Settings3 Changes functions of the machine.
6 STACKER Changes setting for
STACKER
. (Displayed only when
IFS off
is
activated).
7 Adjust All Corrects the document position in a vertical and a horizontal
direction against the JOB set.
8 Cleaning mode Retrieves
Cleaning mode
to clean the conveyance belt /
conveyance roller.
9 Return Returns to standby screen.
●
Select menu screen
●
Standby screen
Count-up
Preset count
21 10
001:**********
9999

Sheets 999/999
REG BC %
********
********
Sheets
↓
↓
↓
↓
5
4
6
3
3
78
9
REG BC %
↓
↓
↓
↓
IFS
OFF
No. Name Function
1 JOB No. Displays the JOB number currently selected.
2 JOB Name Displays the JOB name currently selected.
3 Counter Displays the number of document sheets processed with the JOB
currently set.
4
Status Displays the machine status.
5 REG Displayed when
Read REG mark
(REG mark reading) is
ON
.
6 BC Displayed when
Read Barcode
(barcode reading) is
ON
.
7%
Displayed when
Apply Shrinkage
is set in
Settings3
.
8
Displayed when
Adjust All
is set.
9
Displayed when the DC-646 is connected to the PC Controller.
10
Displayed when
Batch separation
is set. (Displayed only
when
IFS off
is activated).
↓
↓
↓
↓
Select menu Select menu Select menu
Retrieve JOB
Enter JOB
Settings1
Settings2
Settings3
STACKER
Adjust ALL
Cleaning mode
Return
1
2
3
4
5
6
7
8
9
