Daily Maintenance
6
About Protection of Press Rollers
If the
press rollers
stay
at the same position for a long time, they may be deformed by the
pressure from the
back-up rollers
. To prevent them from being deformed, if the machine does
not operate for one hour with the power on, the rollers automatically rotate at low speed.
When you do not operate the machine for a long period of time (approx. two weeks), release the
contact of the
back-up rollers
and the
press rollers
according to the following procedure.
The hexagon socket head cap screws releasing the contact of the
back-up rollers
and the
press
rollers

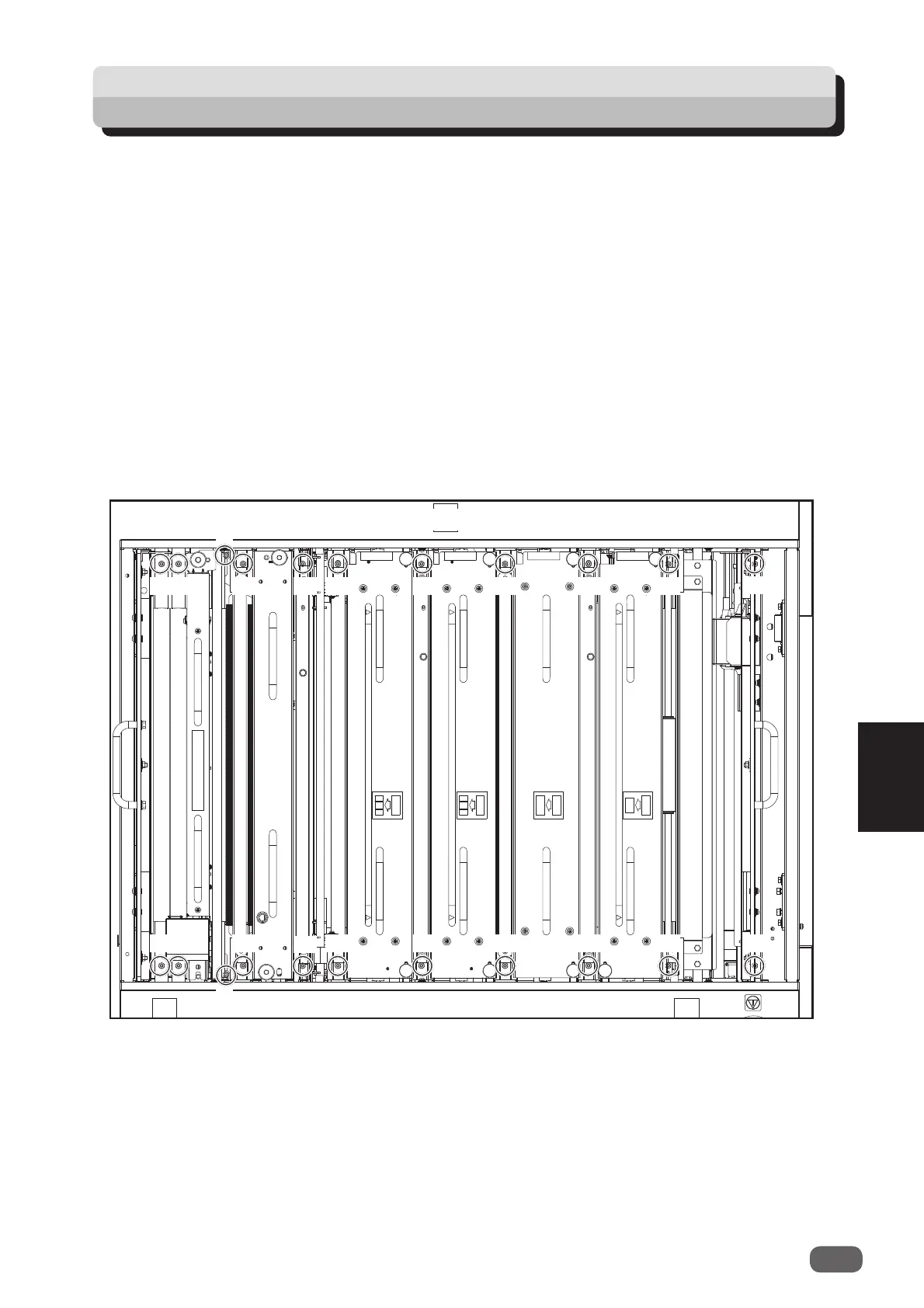

are located at 11 places on the operator’s side and the non-operator’s side shown in the
fi gure below.
Loosen them by using the supplied hexagon wrench.
The screws
1
to
8
, and
10
to
11
are located at the upper side and can be loosened directly. The
screw
9
is located at the lower side.
Non-operator’s side
Ejection side Document feed side
Operator’s side
12456
7
8
9
1011 3
1
2
34567
8
1110
9
