18
Before Preparing a Document
The DC-646 can save up to 250 patterns of JOB. JOB contents can be programmed either via
computer or on the control panel. This section describes items required to program a JOB.
SLIT: The DC-646 has six slitters. Two slitters (1, 2) are for the margins and the remaining four
slitters are for the center area of the document.
CUT: There is a guillotine cutter that performs cuts perpendicular to the document feed direction.
The DC-646 can cut up to 30 cuts on one document.
CREASE: There is a creaser that performs creases perpendicular to the document feed direction.
The DC-646 can crease up to 20 creases on one document.
No. Name Function
A
1
Slot 1
(for Margin slitter module)
Cuts o the margin of the operator’s side and the
non-operator’s side.
2
B
Slot 2
(for Standard module / Slitter
module / Cross tool module / Rotary
tool module)
Cuts or perforates a document parallel to the document
feed direction.
* Cuts or perforates a document perpendicularly to the
document feed direction with the
cross tool module
installed.
C
3
Slot 3
(for Standard module / Sliter
module / Rotary tool module)
Cuts or perforates a document parallel to the document
feed direction.
4
D
5
Slot 4
(
for Standard module / Slitter
module / Rotary tool module
)
Cuts or perforates a document parallel to the document
feed direction.
6
E- Gutter de ector
Waste cut o by module A, B, C and D is dropped into the
waste box.
F- Creaser module
Creases a document perpendicularly to the document feed
direction.
G- Cutter module
Cuts a document perpendicularly to the document feed
direction.
When removing various modules of this machine, always re-install the modules properly as
shown in the above gure. It is especially important that the
slitter modules
are installed
in correct positions with correct orientation when module B, C, and D are iinstalled again.
Slitter modules for the DC-645 cannot be used in the DC-646.
IMPORTANT
FG
35
46
1
F
G
3
5
6
4
2
B A
E
DC
1
2
: Crease
: Cut
: Slit 1
: Slit 2
: Slit 3
: Slit 4
: Slit 5
: Slit 6
Document
feed
direction

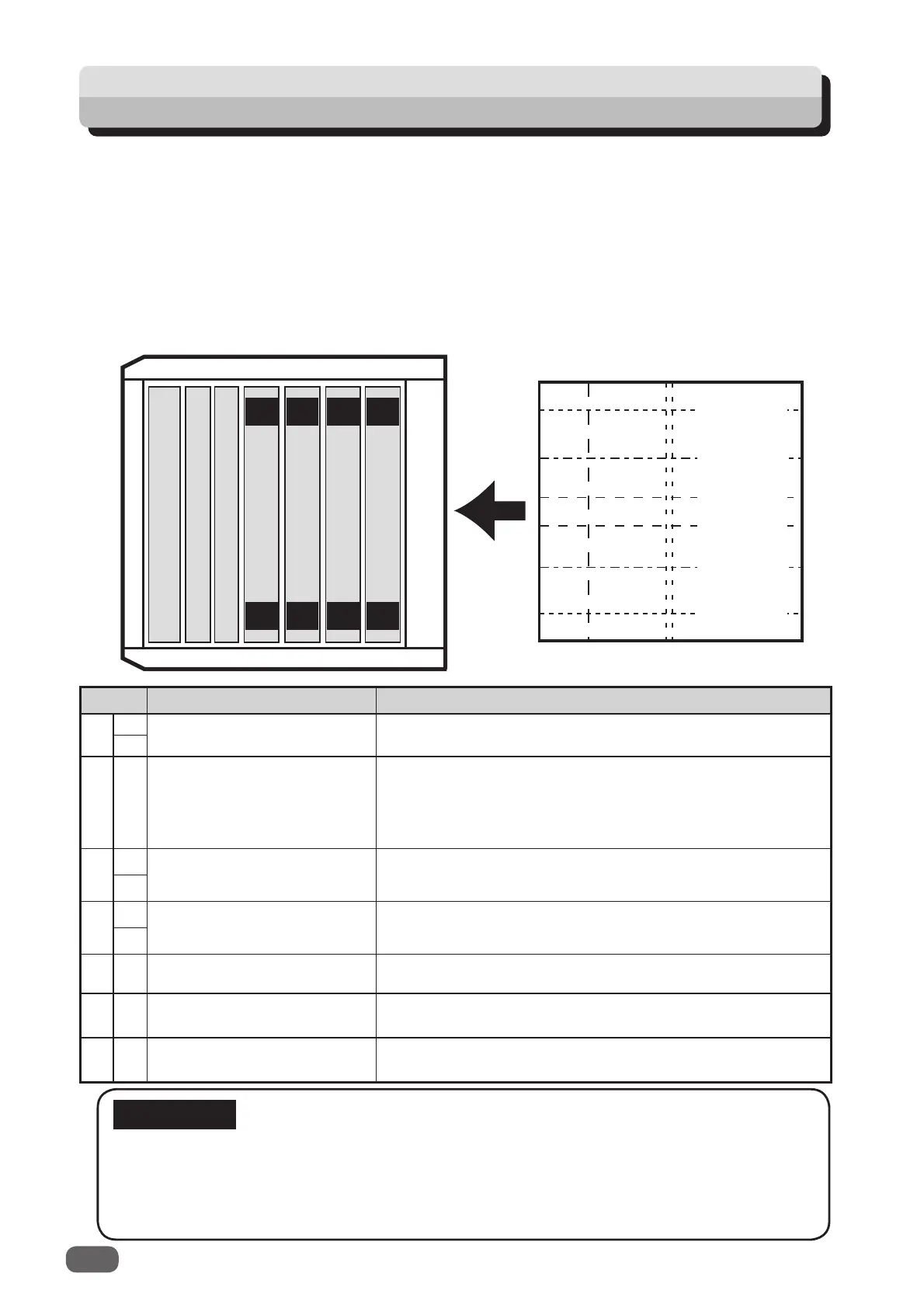

Document and processing position
