Duplo DC-646 - Ejection Side (with card stacker attached)

4

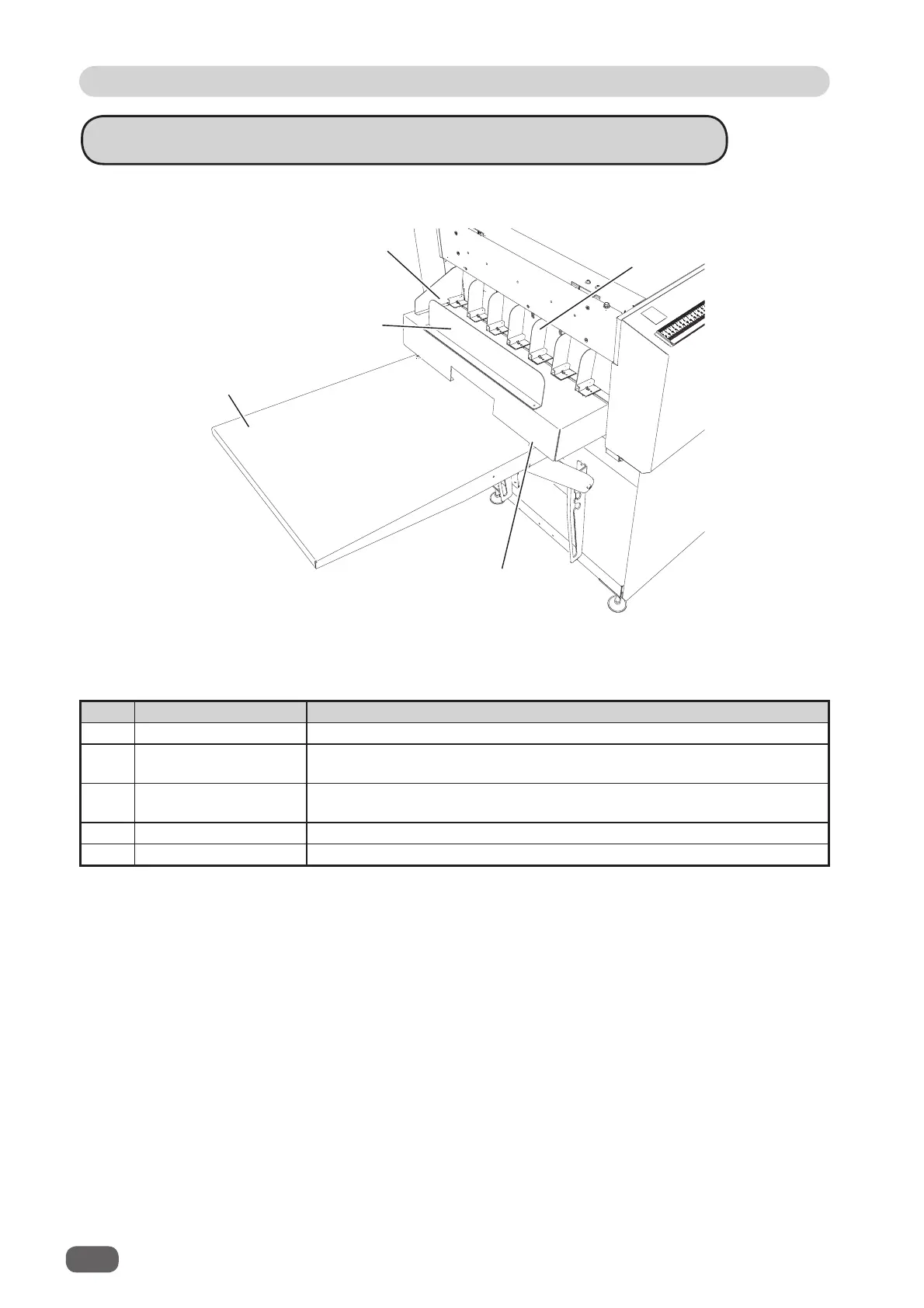

Part Names and Their Functions
Ejection Side (with card stacker attached)
No. Name Function
1 Guide Set this according to the card width.
2 Support guide
(for card stacker)
Set this when document alignment is poor.
3 Guide assy
(for card stacker)
Set this according to the card length.
4 Card stacker Receives card-sized fi nished products.
5 Exit tray Receives fi nished products.
1
2
3
4
5
