Duplo DC-646 User Manual

2
213

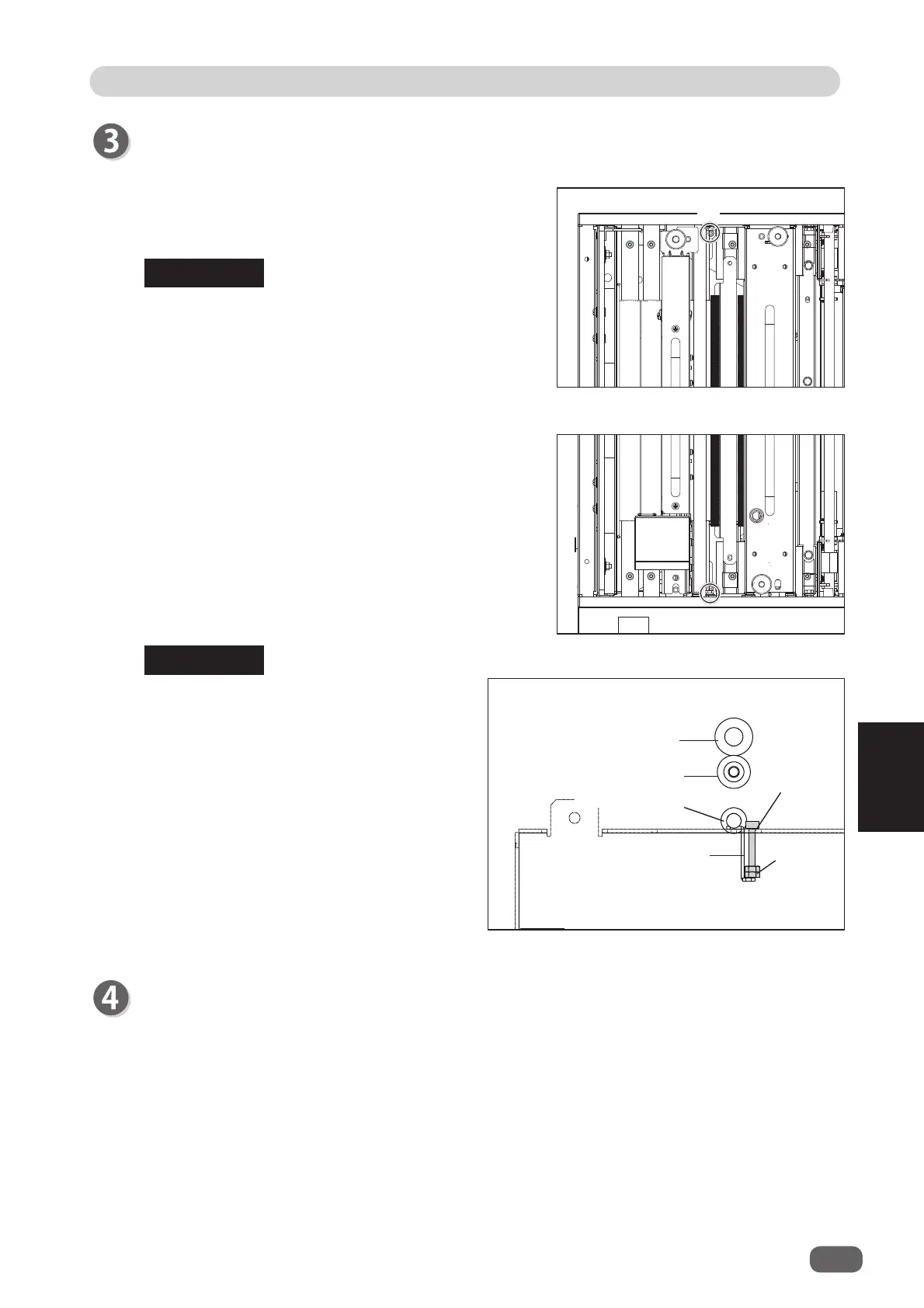

About Protection of Press Rollers
Daily Maintenance
6
Releasing the
back-up roller
pressure of
9
Turn the hexagon socket head cap screw (of
9
)
adjusting the
back-up roller
pressure clockwise by
using the supplied hexagon wrench.
REFERENCE
You can turn the hexagon socket head cap
screws without removing the
cover
.
REFERENCE
When using the machine again, be sure to bring
the
back-up rollers
into contact with the
press
r
ollers
by tightening the loosened hexagon
socket head gap screws.
Non-operator’s side
9
Operator’s side
9
Turn the hexagon socket head cap screws
clockwise until they stop to loosen them.
Nut
Frame
Press roller
Back-up roller
Hexagon
socket
head cap
screw
Driving roller
9
9
Pressure release angle
