Before Preparing a Document
Before Using This Machine
1
20 mm
3 mm
3 mm
20 mm
5 mm or more
2 mm
or more
5 mm or more
5 mm
or
more
End mark
printing range
Document
feed direction
0.4 mm
or
more

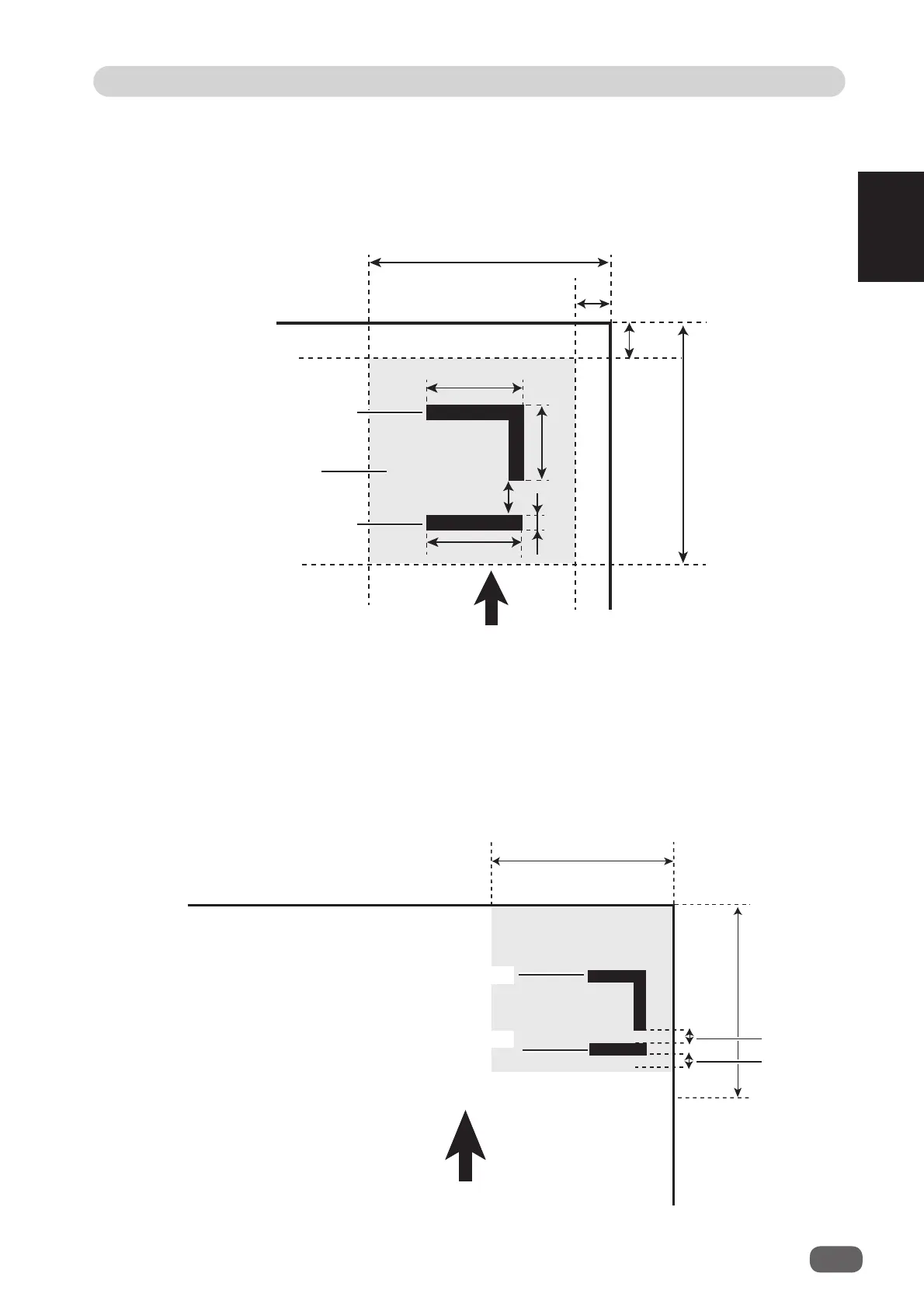

End mark consists of a REG mark from the document lead edge and a horizontal line A as
shown in the fi gure below.
If end mark is not printed properly, the machine does not operate normally.
● Shape and position of end mark
Nothing should be printed in the following range:
• between the document lead edge and the REG mark
• between the REG mark and the horizontal line A (2 mm or more)
• 1 mm or more after the horizontal line A
No printing should enter into the gray-colored area.
● Notes on end mark printing area
Document
feed direction
20 mm
2 mm
or more
1 mm
or more
End mark
printing range
Horizontal
line A
REG mark
20 mm
REG mark
Horizontal
line A
