Maintenance - 500h
ICC424HF-CN1EN2.pdf2012-11-23
Maintenance - 500h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Diesel engine
Oil change
The engine's oil drain plug is located under the rear
frame on the machine on the right side.The drain plug
is accessed by first removing the rubber plug on the
underside of the frame.

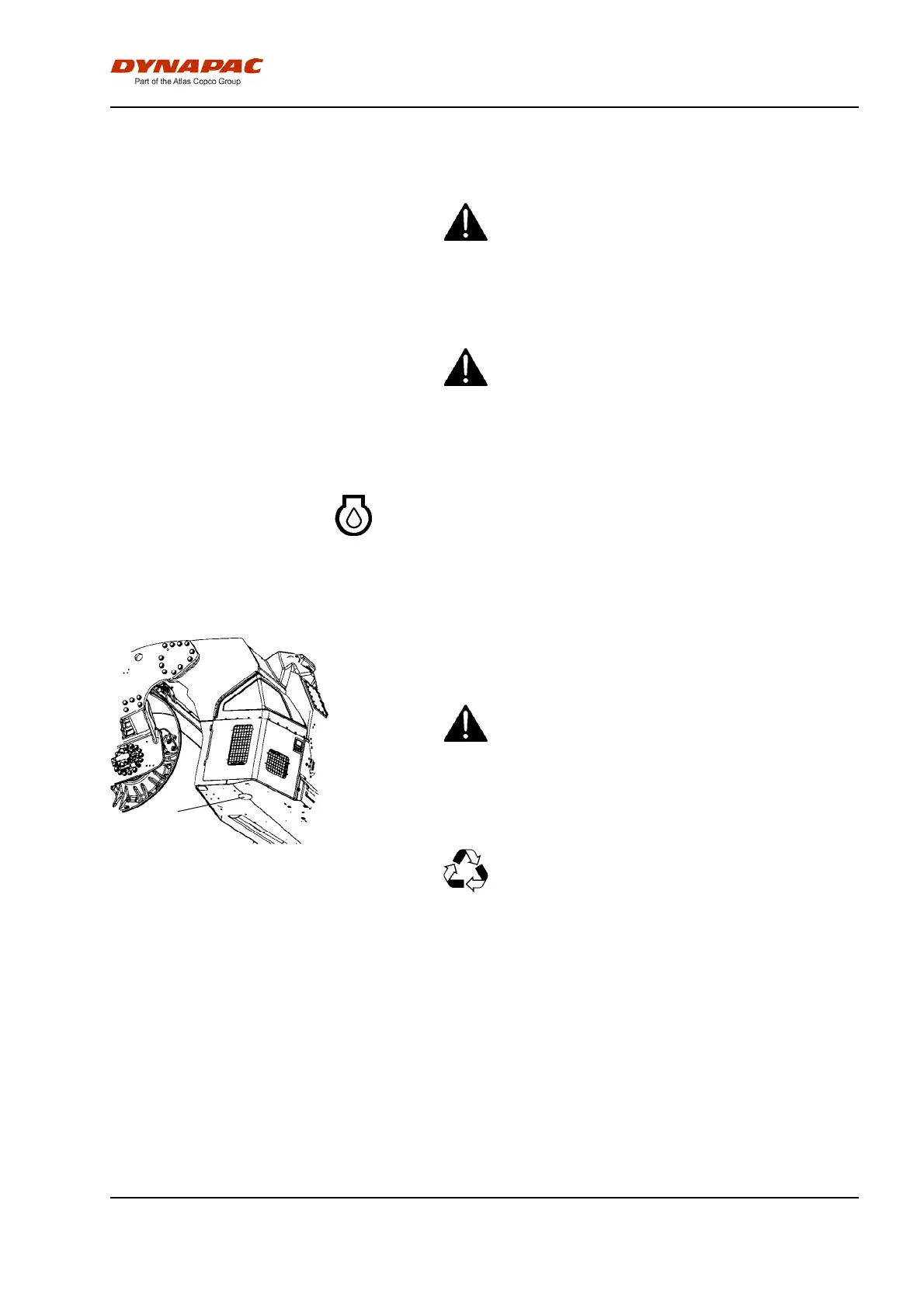

Figure. Underside of rear frame
1. Oil draining of diesel engine
1
Drain the oil when the engine is warm. Place a
receptacle that holds at least 14 liters (15 qts) under
the drain plugs.
Take great care when draining engine oil. Wear
protective gloves and goggles.
Take great care when draining engine oil. Wear
protective gloves and goggles.
Unscrew the drain plug (1). Allow all the oil to drain out
and refit the plug.
Deliver the drain oil for environmentally correct
handling.
Deliver the drain oil for environmentally correct
handling.
Fill with fresh engine oil, see Lubricant specification or
the engine manual for the correct grade of oil.
Fill with the requisite volume of engine oil. See
technical specifications before starting the machine.
Allow the engine to idle for a few minutes, and then
switch off the engine.
Check the dipstick to ensure that the engine oil level is
correct. Refer to the engine manual for details. Top up
with oil if necessary to the max mark on the dipstick.
93
