Weight: refer to the hoisting plate on the
roller
1

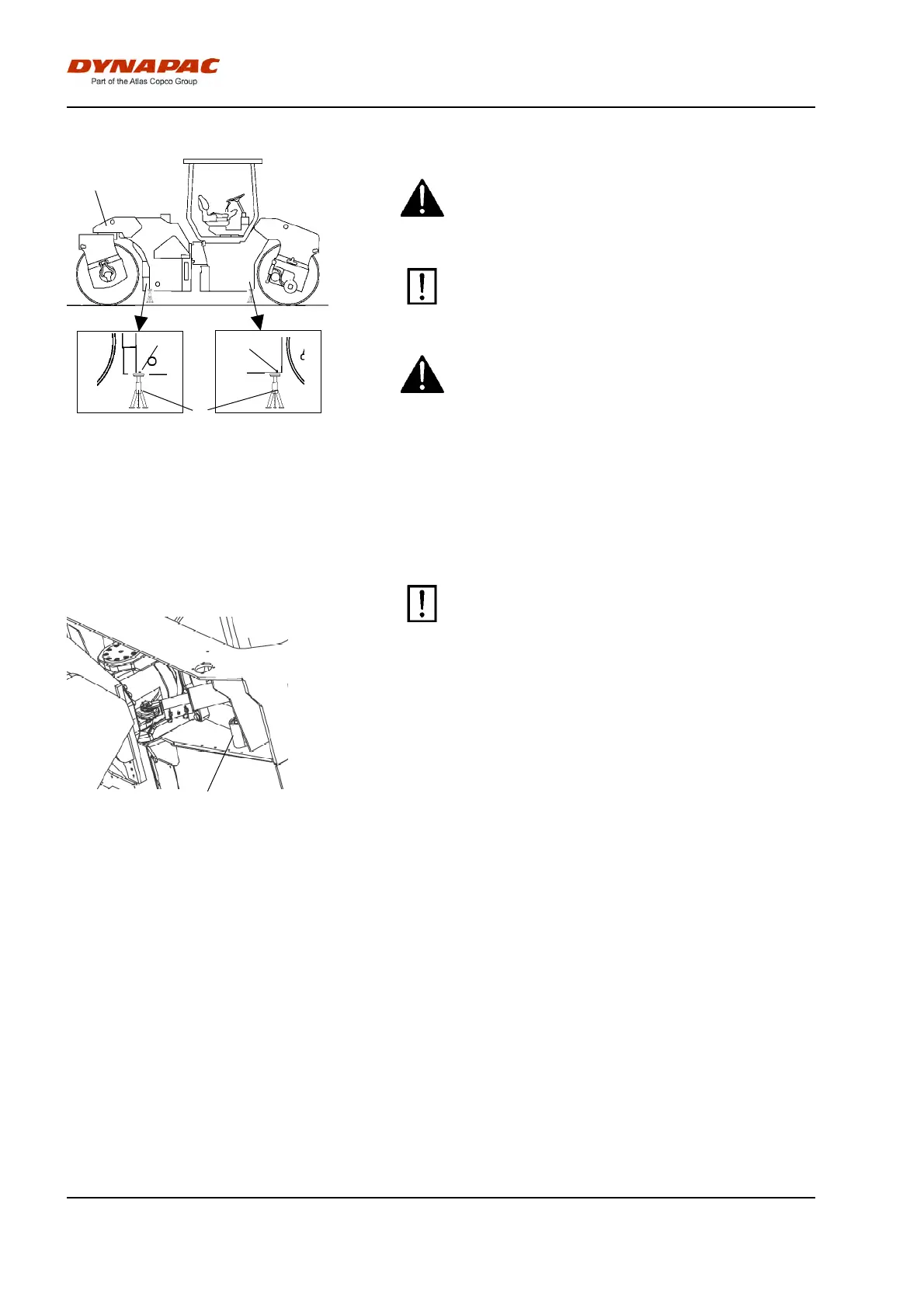

Figure. Roller lifted with jack
1. Lifting plate
2. Jack
3. Marking
2
3
3
Lifting the roller with jack:
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
The lifting device such as a jack (2), or
equivalent, must be dimensioned according to the
safety regulations for lifting devices.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
Do not go under a lifted load! Make sure that the
lifting device is secure in its position, and on a
level and stable suface.
The machine must only be lifted with a jack, or the
like, positioned as per the markings (3). The frame is
reinforced at these points to withstand the tension.
Lifting at any other place can result in damage to the
machine or personal injury.
Unlocking the articulation
2
Figure. Articulation in open position
2. Lock
Remember to unlock the articulation before
operating.
Remember to unlock the articulation before
operating.
Insecure and remove the locking devices and put them
in the storing place.
Towing/Recovering
The roller can be moved up to 300 meters (1,000 ft)
using the instructions below.
