Maintenance - 500h
ICC424HF-CN1EN2.pdf2012-11-23
Drum - oil level
Inspection - filling

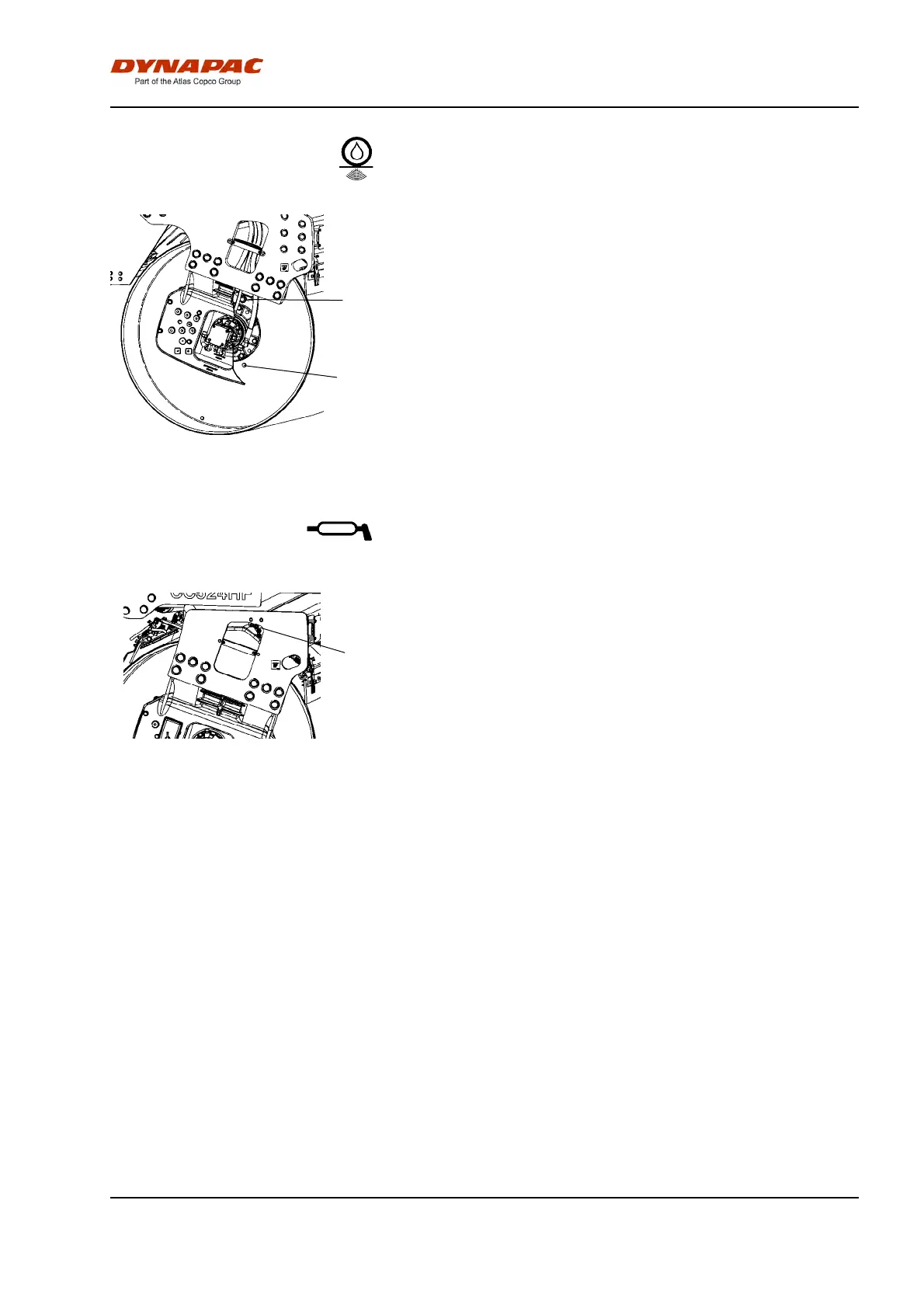

Fig. Drum, vibration side
1. Filler plug
2. Level plug
2
1
Position the roller with the filler plug (1), the large plug,
at the highest point in its rotation.
Wipe clean around the level plug (2), the small plug,
and remove the plug.
Make sure that the oil level is up to the lower edge of
the hole. Top off with fresh oil if the level is low. Use oil
as specified in the lubricants specification.
When removing the filler plug, wipe any metal
accumulated on the plug magnet off. Make sure that
plug seals are intact and replace with new seals if not.
Refit the plugs and check that they are tight by driving
the roller and then rechecking.
Pivot bearing (Optional) - Lubrication
Fig. Rear drum
1. Grease nipples x 4
1
Grease each nipple (1) with five strokes of a
hand-operated grease gun.
Use grease as specified in the lubricant specification.
95
