Miscellaneous
Lifting
Locking the articulation
1
2

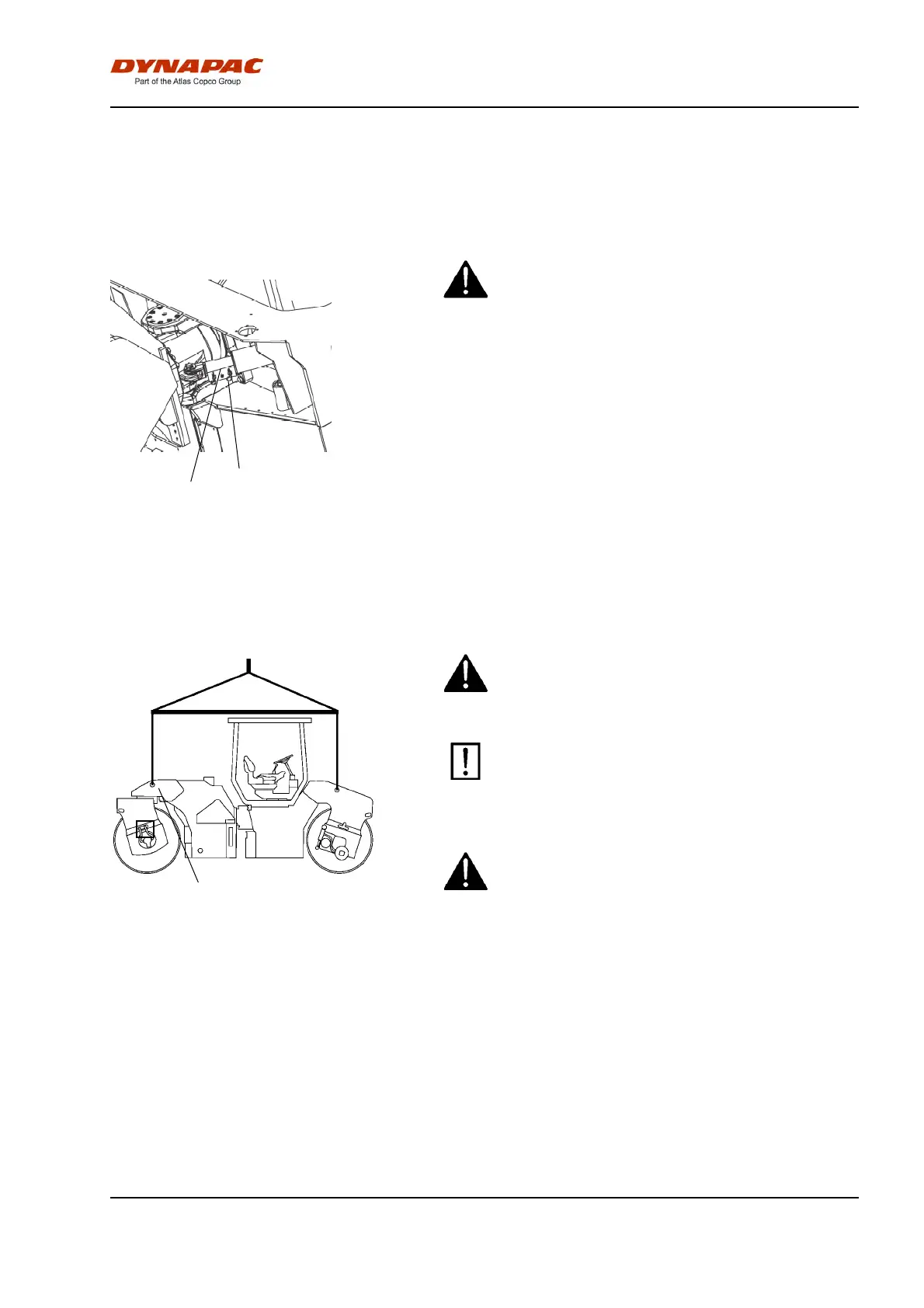

Figure. Articulation in locked position
1. Cotter pin
2. Lock
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Turn the steering wheel so the roller is straight forward.
Press down the parking brake button and switch off
the machine.
Put the locks on the guide cylinder piston rods and
lock them.
Weight: refer to the
hoisting plate on the
roller
1
Fig. Roller prepared for lifting
1. Hoisting plate
Lifting the roller
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
61
