Towing the roller
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.
The roller must be towed slowly, max. 3 km/h (2
mph) and only towed short distances, max. 300 m
(1000 ft).
The roller must be towed slowly, max. 3 km/h (2
mph) and only towed short distances, max. 300 m
(1000 ft).

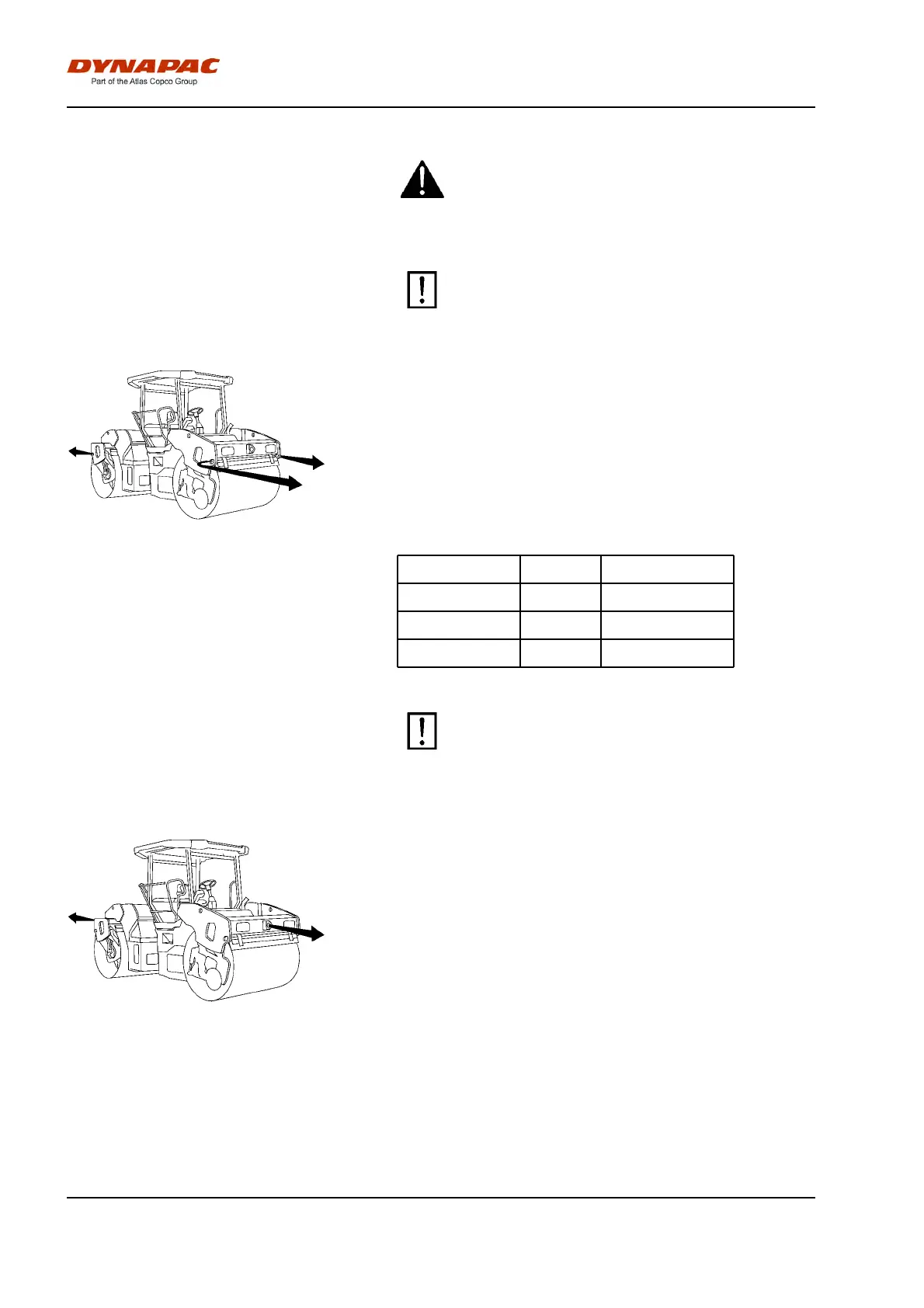

Fig. Towing
When towing/retrieving a machine, the towing device
must be connected to both lifting holes in the diagram.
Pulling forces should act parallel to the machine's
longitudinal axis, as illustrated. See table below for
maximum permitted pulling force for machine model.
Model kN lbfModel kN lbf
CC424HF 150 33 750CC424HF 150 33 750
CC524HF 180 40 500CC524HF 180 40 500
CC624HF 190 42 750CC624HF 190 42 750
Reverse the towing preparations made to the
hydraulic pump and/or the motor.
Reverse the towing preparations made to the
hydraulic pump and/or the motor.
Trailer eye
Fig. Trailer eye
The roller can be fitted with a trailer eye.
The trailer eye is not designed to be used for
towing/recovering. It is designed for trailers and other
towed objects weighing no more than 2 600 kg (5 750
lbs).
