Dynapac CC424HF - Dimensions, Side View

118 pages

Save Page as PDF

To Next Page

To Previous Page

Technical specifications

ICC424HF-CN1EN2.pdf 2012-11-23

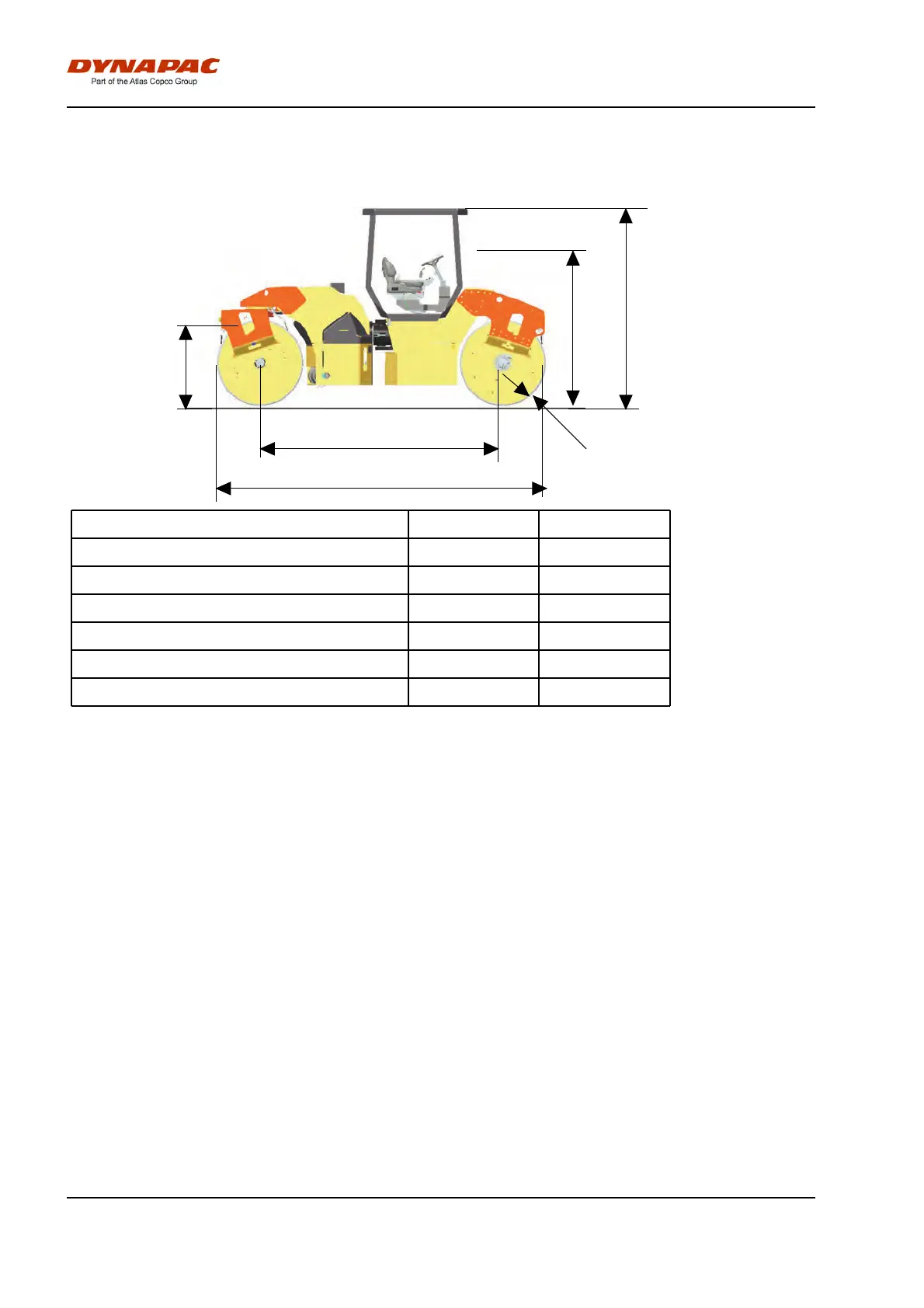

Dimensions, side view

Dimensions mm inDimensions mm in

A 3690 145A 3690 145

D 1300 51D 1300 51

h 2275 90h 2275 90

H 2990 118H 2990 118

L 4990 196L 4990 196

S 18 0.71S 18 0.71
