Dynapac CC424HF - Drum - Oil Change; Drum Gear - Oil Change

Maintenance - 1000h
ICC424HF-CN1EN2.pdf2012-11-23
Drum - Oil change

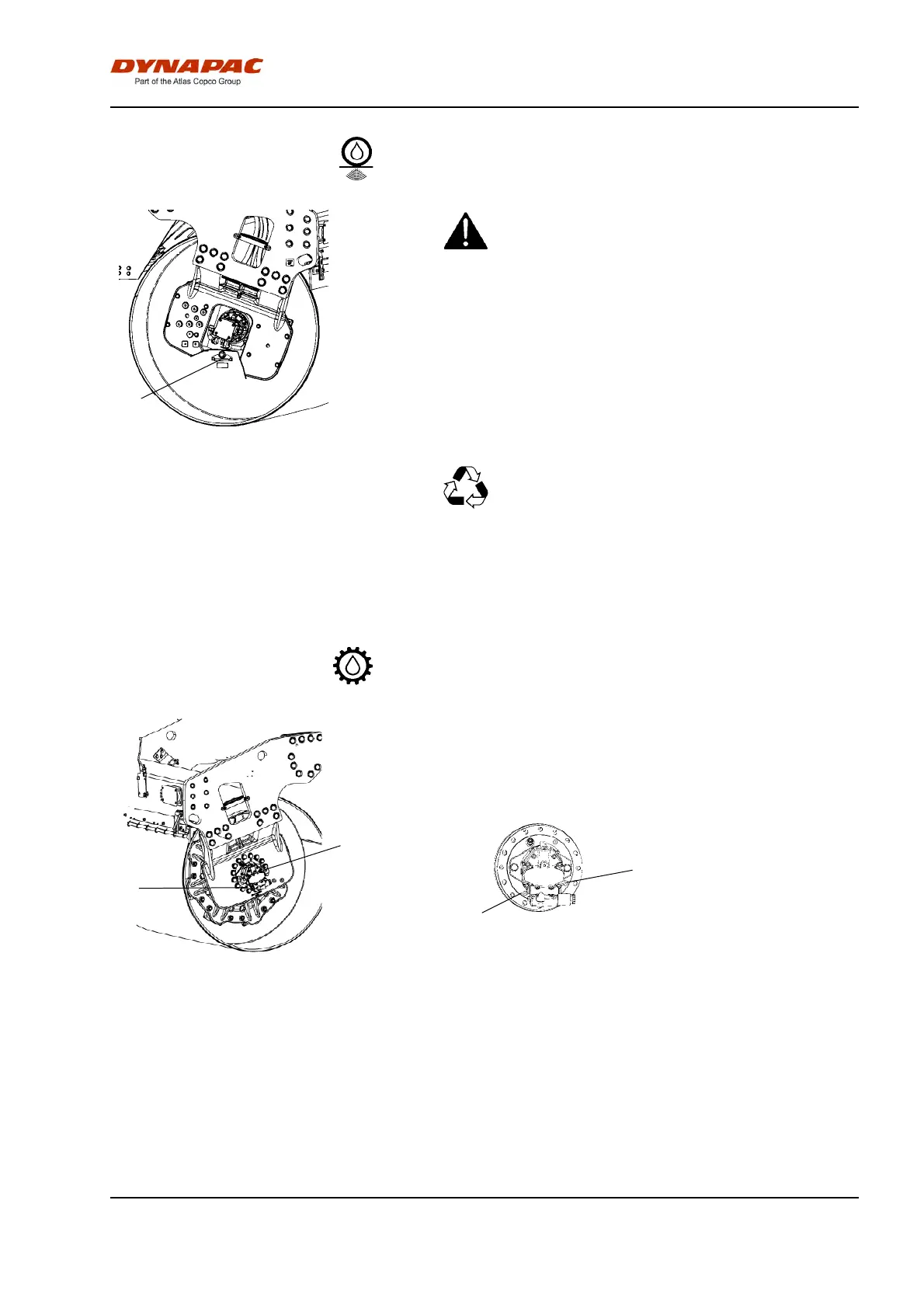

Fig. Drum, vibration side
1. Drain plug
1
Take great care when draining the fluid. Wear
protective gloves and goggles.
Take great care when draining the fluid. Wear
protective gloves and goggles.
Set the roller so that the drain plug (1), the large plug,
is at the lowest position in its rotation.
Place a receptacle that holds at least 20 liters (5.3 gal)
under the drain plug.
Remove the drain plug (1). Allow all the oil to drain out
and refit the plug.
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
See under the heading 'Every 500 hours of operation'
for filling oil.
Drum gear - Oil change
Fig. Drum gear
1. Drain plug
2. Ventilating plug
1
2
Place the roller on a level surface.
Wipe clean, unscrew the plugs (1, 2) and drain the oil
into a suitable receptacle, capacity about 2 liters (0.5
gal.).
Fig. Drum gear
1
2
101
