Dynapac CC424HF - Drum Gear - Checking the Oil Level; Cab; Fresh Air Filter - Replacing

Maintenance - 1000h
ICC424HF-CN1EN2.pdf 2012-11-23
Drum gear - Checking the oil level

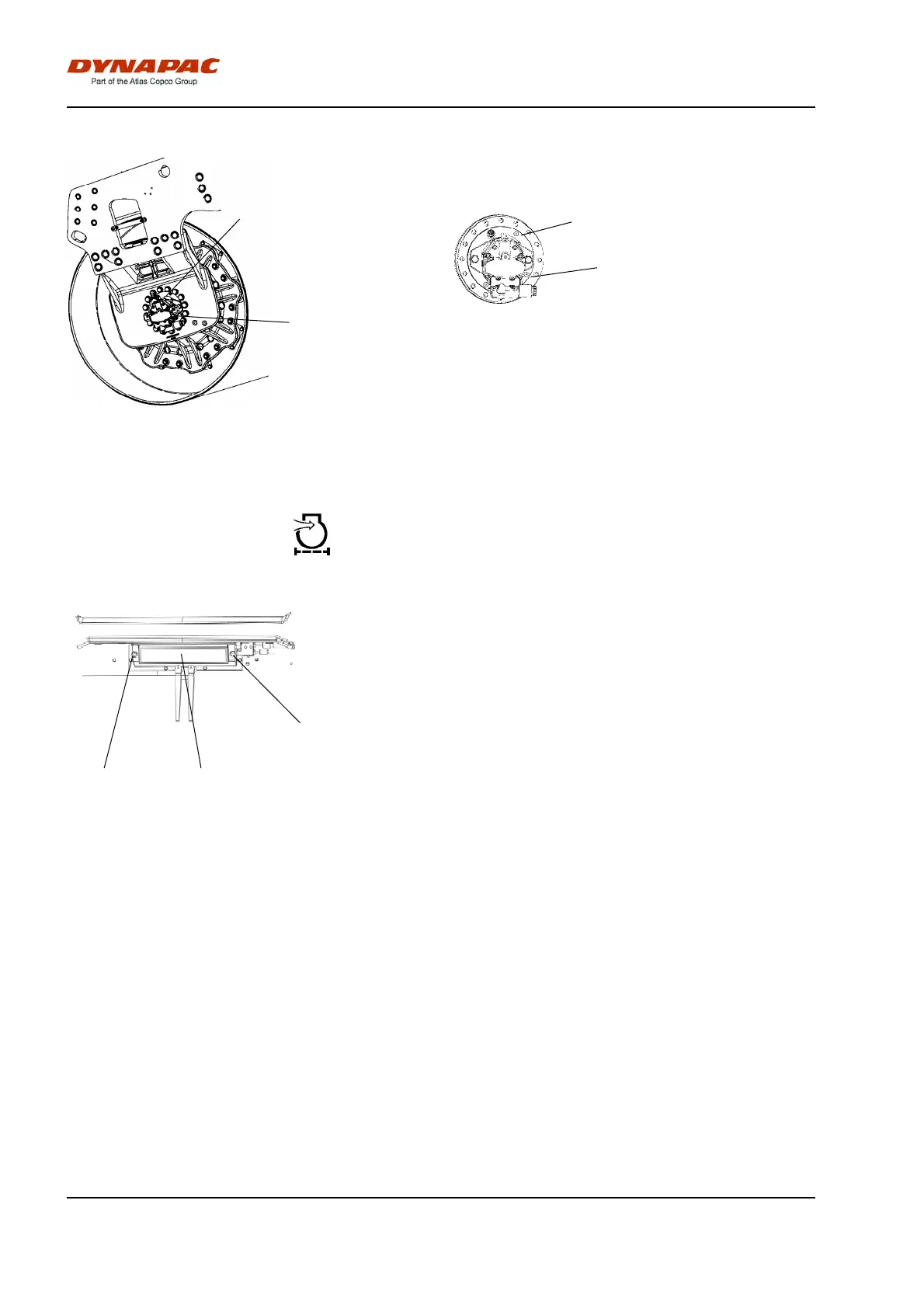

Fig. Oil level check - drum gear
1. Level plug
2. Filling plug
1
2
Move the machine until the inspection/filling holes are
in position for filling.
1
Fig. Drum gear
2
Fill with the requisite volume of new oil. See technical
specifications. Use transmission oil, see lubricant
specifications.
Ensure that the oil level reaches up to the lower edge
of the plug hole.
Clean and refit the plugs.
Cab
Fresh air filter - Replacing
Figure. Cab, front
1. Fresh air filter (x1)
2. Screw (x2)
2
2
1
There is one fresh air filter (1), placed on the front of
the cab.
Remove the protective cover.
Undo the screws (2) and remove the complete holder.
Remove the filter insert and replace with a new filter.
The filter may need to be changed more often if the
machine is operated in a dusty environment.
102
