Maintenance - 50h
ICC424HF-CN1EN2.pdf2012-11-23
Maintenance - 50h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Fuel filter - Draining

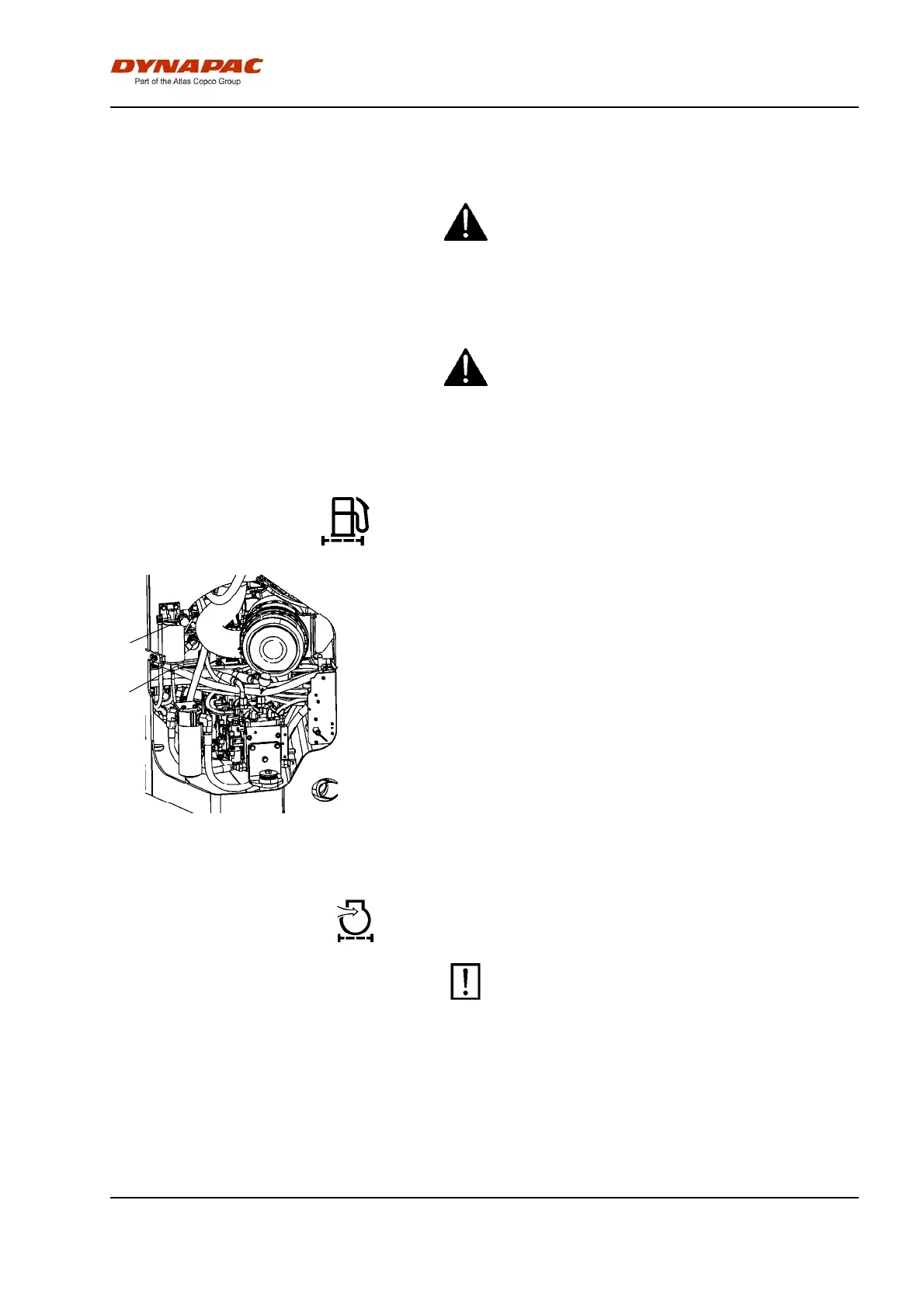

Figure. Fuel filter
1. Drain plug
2. Hand pump
1
2
Unscrew the drain plug (1) at the bottom of the fuel
filter.
With the aid of the secondary hand-operated pump,
make certain that all sediment comes out. See
Cummins service manual.
Tighten the drain plug as soon as uncontaminated fuel
runs out.
Air cleaner
Checking - Change the main air filter
Change the air cleaner's main filter when the
warning lamp on the display lights when the
diesel engine is operating at full speed.
Change the air cleaner's main filter when the
warning lamp on the display lights when the
diesel engine is operating at full speed.
85
