Maintenance, 10h
ICC424HF-CN1EN2.pdf2012-11-23
Hydraulic reservoir - Check fluid level
2

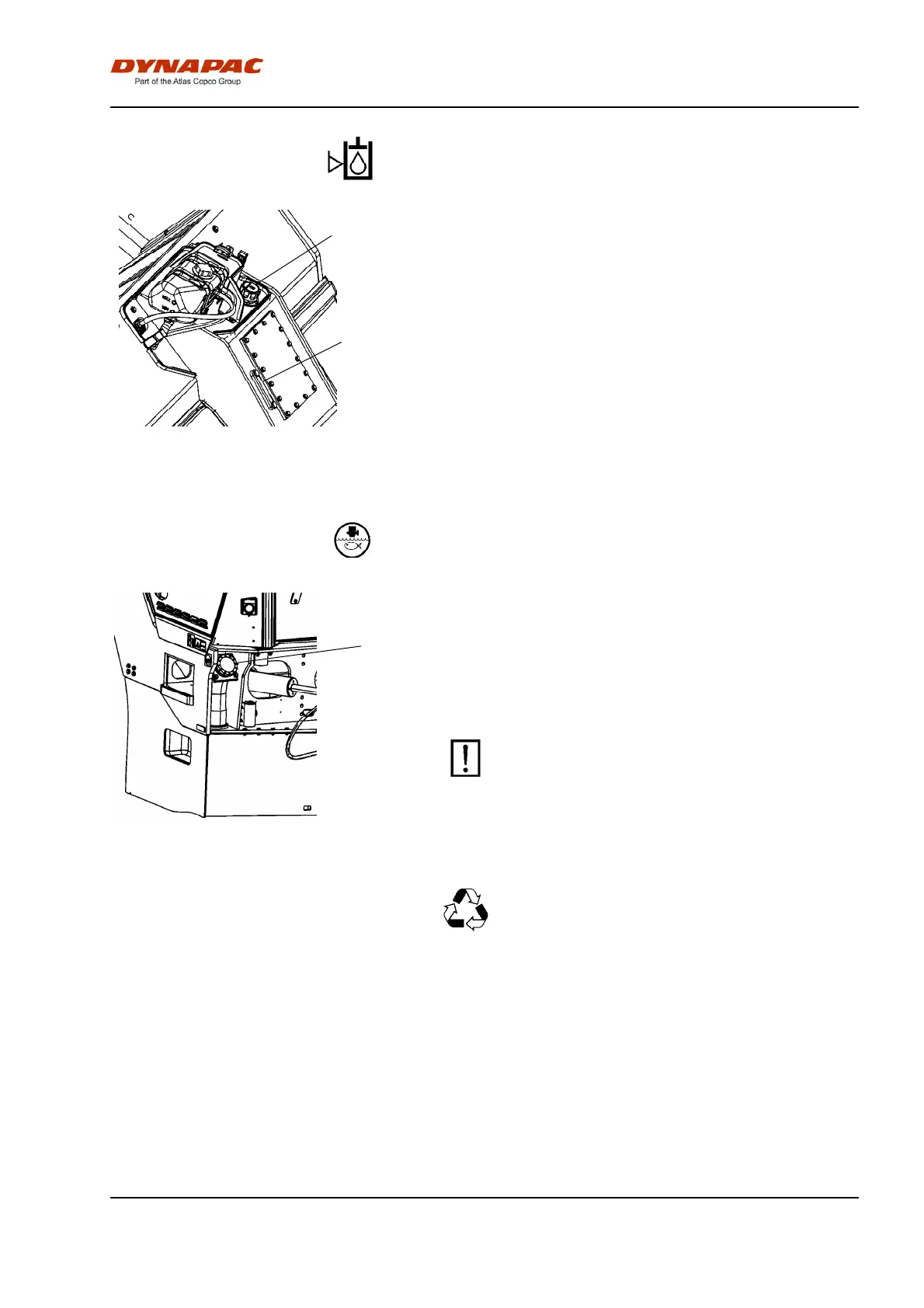

Figure. Hydraulic reservoir
1. Oil sight glass
2. Filler cap
1
Place the roller on a level surface and check that the
oil level in the sight glass (1) is between the max and
min markings. Top up with the type of hydraulic fluid
specified in the lubricant specification, if the level is too
low.
Water tank, Std - Filling
Figure. Standard water tank
1. Tank cap
1
The filler cap is on the rear left side of the front frame.
The machine can also be fitted with refilling on both
sides.
When quick-filling on a machine with two filling pipes,
loosen the filler cap on the nonfilling side to ventilate
the water tank.
Unscrew the tank cap (1) and fill with clean
water. Do not remove the strainer (2).
Unscrew the tank cap (1) and fill with clean
water. Do not remove the strainer (2).
Fill the central (standard) tank, it holds 900 liters (238
gal).
Only additive: A small amount of
environment-friendly antifreeze.
Only additive: A small amount of
environment-friendly antifreeze.
79
