Operation
ICC424HF-CN1EN2.pdf2012-11-23
Operator position
1
2
3
4
5
2
3

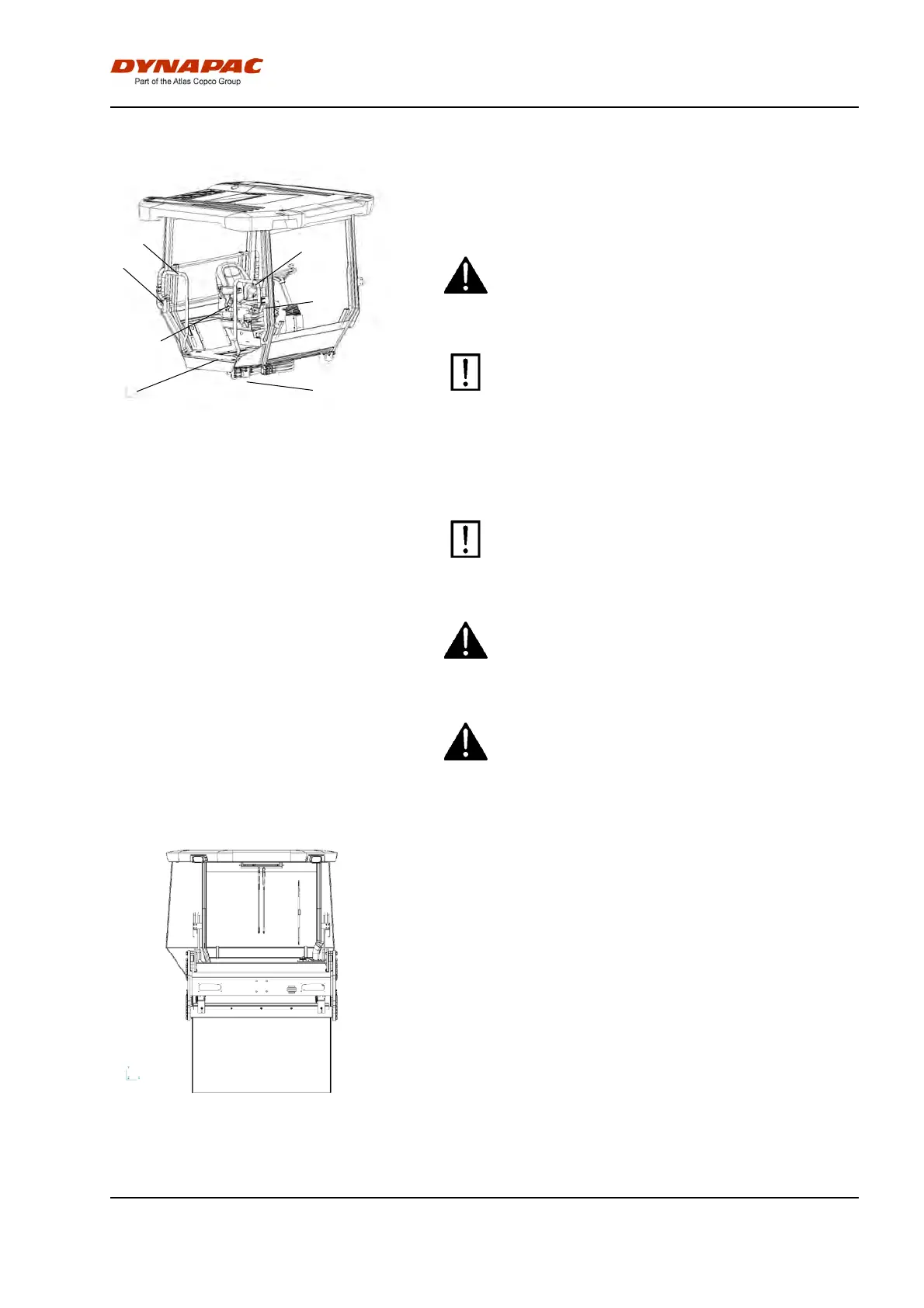

Fig. Operator position
1. Seat belt
2. Safety railing
3. Locking knob
4. Rubber element
5. Anti-slip
If a ROPS (Roll Over Protective Structure) or a cab is
fitted to the roller, always wear the seat belt (1)
provided and wear a protective helmet.
Replace the seat belt (1) if it shows signs of
wear or has been subjected to high levels of
force.
Replace the seat belt (1) if it shows signs of
wear or has been subjected to high levels of
force.
The safety rails (2) around the cab are adjustable
in the inner and the outer positions. Pull in the
rails when driving close to walls or other
obstacles, and when transporting the machine.
The safety rails (2) around the cab are adjustable
in the inner and the outer positions. Pull in the
rails when driving close to walls or other
obstacles, and when transporting the machine.
Release the locking knob (3), set the the railings in the
required position and relock in position.
Check that the rubber elements (4) on the
platform are intact. Worn elements will reduce
comfort.
Check that the rubber elements (4) on the
platform are intact. Worn elements will reduce
comfort.
Ensure that the anti-slip (5) on the platform is in
good condition. Replace where anti-slip friction is
poor.
Ensure that the anti-slip (5) on the platform is in
good condition. Replace where anti-slip friction is
poor.
If the machine is fitted with a cab, make sure that
the door is closed when in motion.
If the machine is fitted with a cab, make sure that
the door is closed when in motion.
View
Fig. View
Before starting, make sure that the view forwards and
backwards is unobstructed.
All cab windows should be clean and the rear view
mirrors should be correctly adjusted.
47
