Maintenance - 2000h
ICC424HF-CN1EN2.pdf2012-11-23
Maintenance - 2000h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Hydraulic reservoir
Fluid change

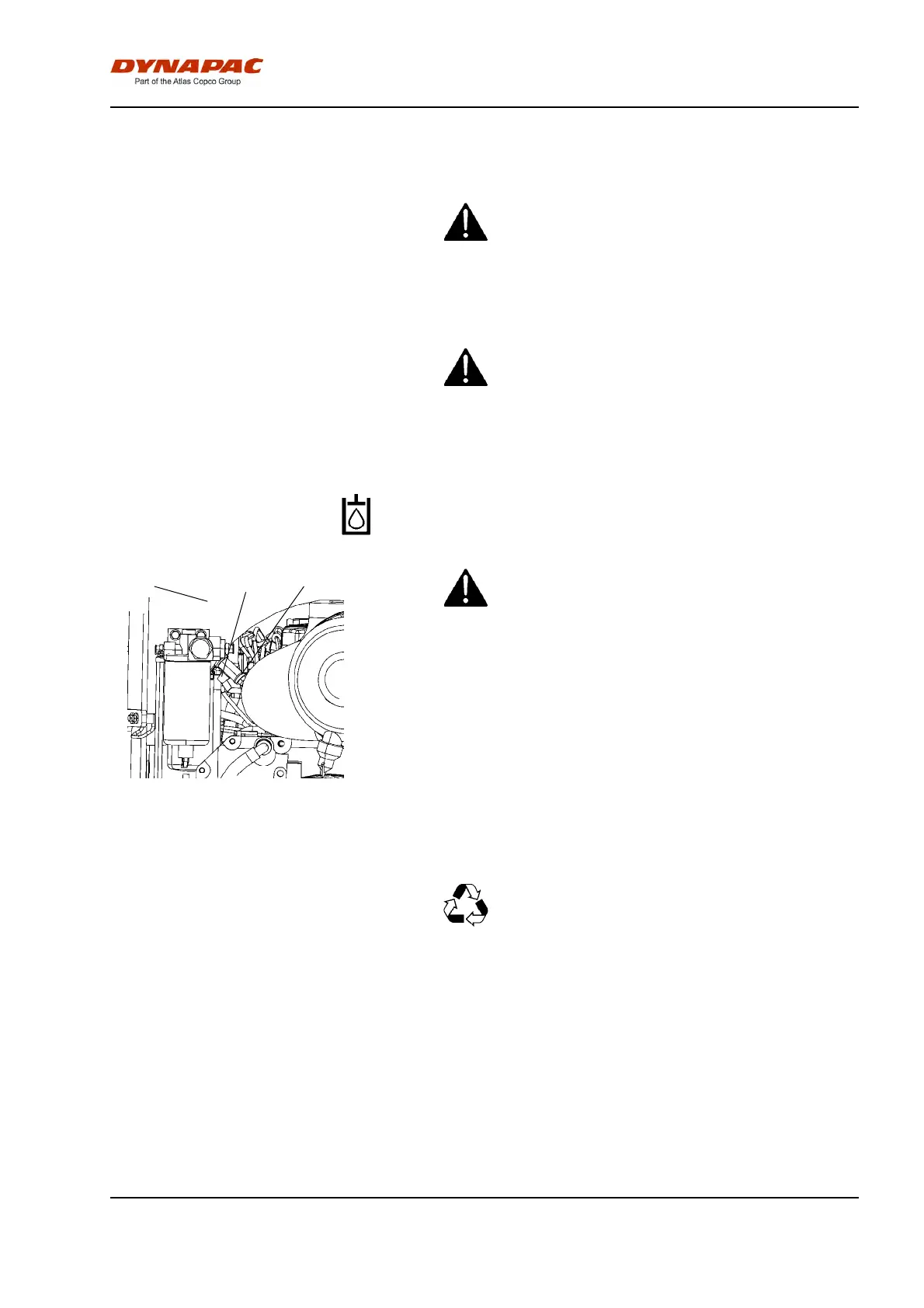

Figure. Engine compartment under
hydraulic tank (via left side)
1. Oil drain
2. Hydraulic tank
3. Valve
1
2
3
Take care when draining the hydraulic fluid. Wear
protective gloves and goggles.
Take care when draining the hydraulic fluid. Wear
protective gloves and goggles.
Open left engine compartment. The drain plug/valve is
in the area under the hydraulic tank.
Place a receptacle that holds at least 50 liters (13.2
gal) under the engine compartment.
Make sure that the valve (3) is closed.
Unscrew the oil drain plug (1), and connect a drain
hose out from the engine compartment.
Open the valve (3) and allow all the oil to run out.
Reset by closing the valve and refitting the plug (1).
Deliver the drained fluid to environmentally
correct handling.
Deliver the drained fluid to environmentally
correct handling.
Fill with fresh hydraulic fluid. Refer to the lubricants
specification for grade information.
Replace the hydraulic filter. See section "Maintenance
- 1000 hours".
Start the engine and operate the hydraulic functions.
Check the level in the reservoir and top off as required.
103
