Maintenance, 10h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensue that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Diesel engine - Check oil level
2

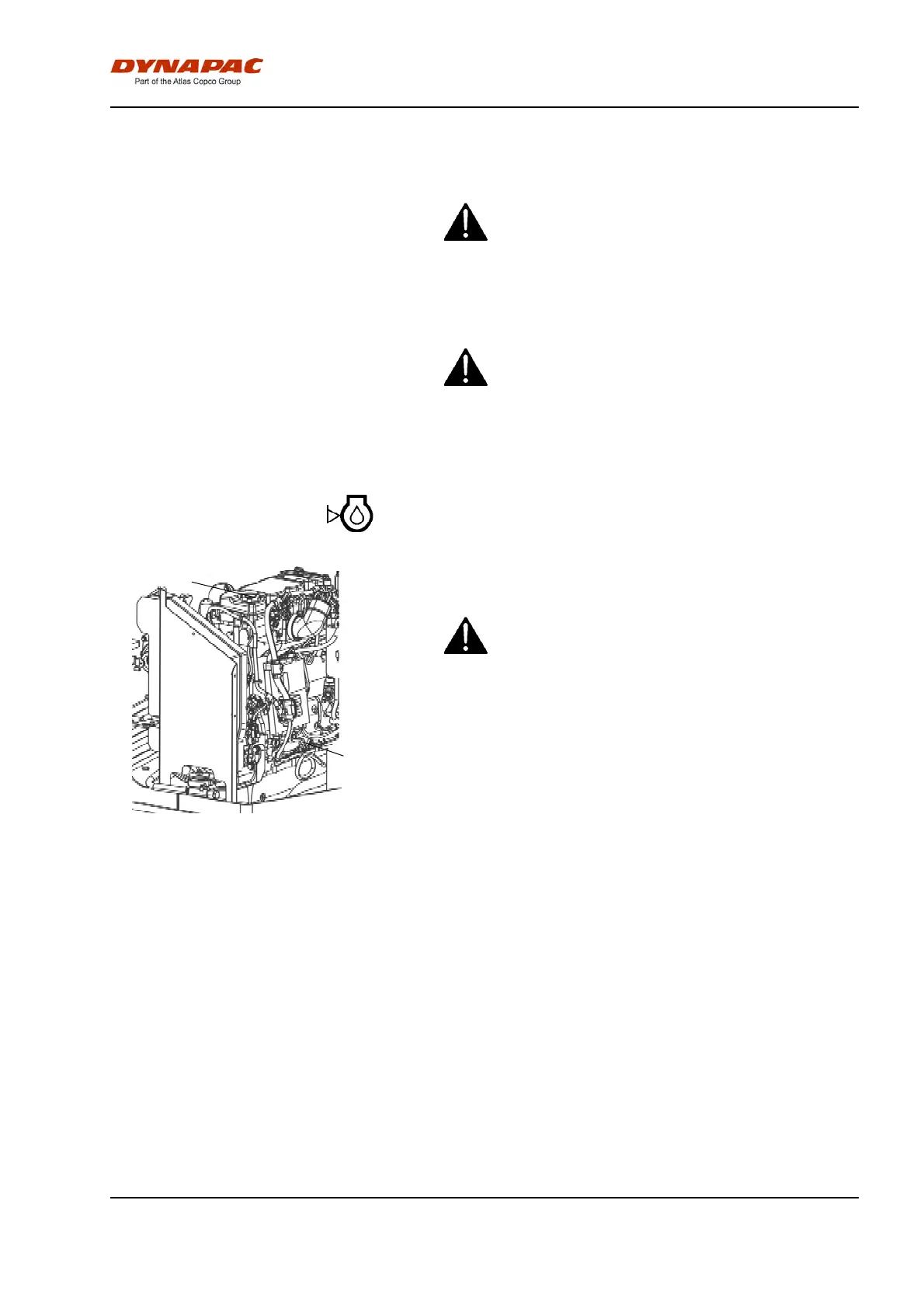

Fig. Engine compartment
1. Dipstick
2. Oil filler cap
1
The dipstick is accessed through the right door of the
engine compartment.
Take care not to touch any hot parts of the engine
or the radiator when removing the dipstick. Risk of
burns.
Take care not to touch any hot parts of the engine
or the radiator when removing the dipstick. Risk of
burns.
The dipstick is located down on the front of the engine.
Pull out the dipstick (1) and check that the oil level is
between the upper and lower marks.
For further details, refer to the engine's instruction
manual.
