Maintenance - 500h
ICC424HF-CN1EN2.pdf 2012-11-23
Engine
Replacing oil filter

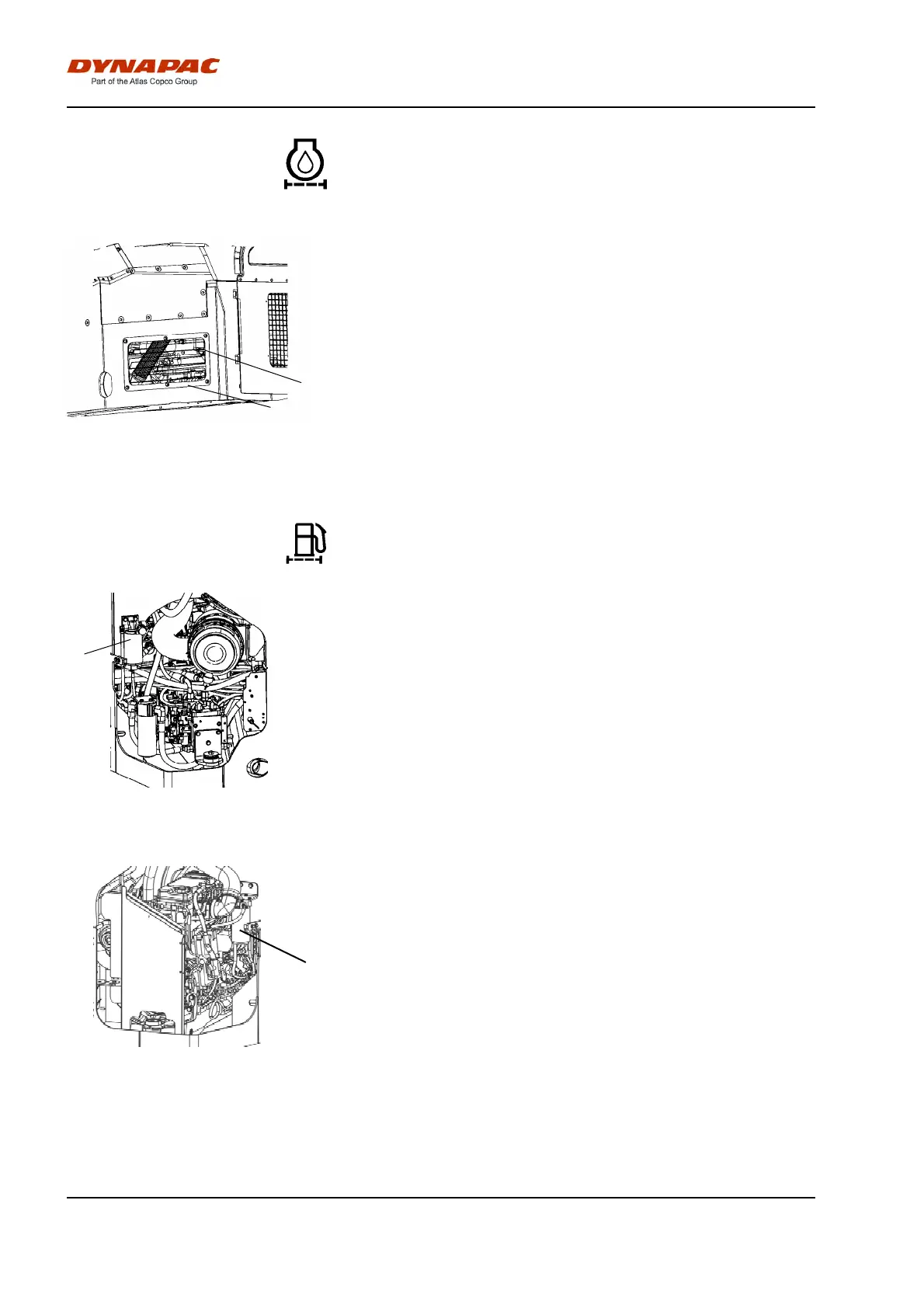

Figure. Engine compartment, right side
1. Oil filter
2. Service panel
2
1
The oil filter (1) is located at the back on the engine
and can easily be accessed by removing the service
panel on the right side between the rear frame and
drum.
See the engine manual for information about replacing
the filter.
The engine fuel filter - replacement/cleaning
1
Figure. Engine compartment, left side
1. Prefilter
The fuel filter is placed on the left side of the engine
compartment.
Unscrew the bottom and drain off any water, and then
replace the filter unit.
Figure. Engine compartment, right
side.
1. Fuel filter
1
Replace the fuel filter, located on the right side of the
engine compartment.
Start the engine and check that the filter is well sealed.
