Dynapac CC424HF - Machine Alarm

Machine description
ICC424HF-CN1EN2.pdf 2012-11-23

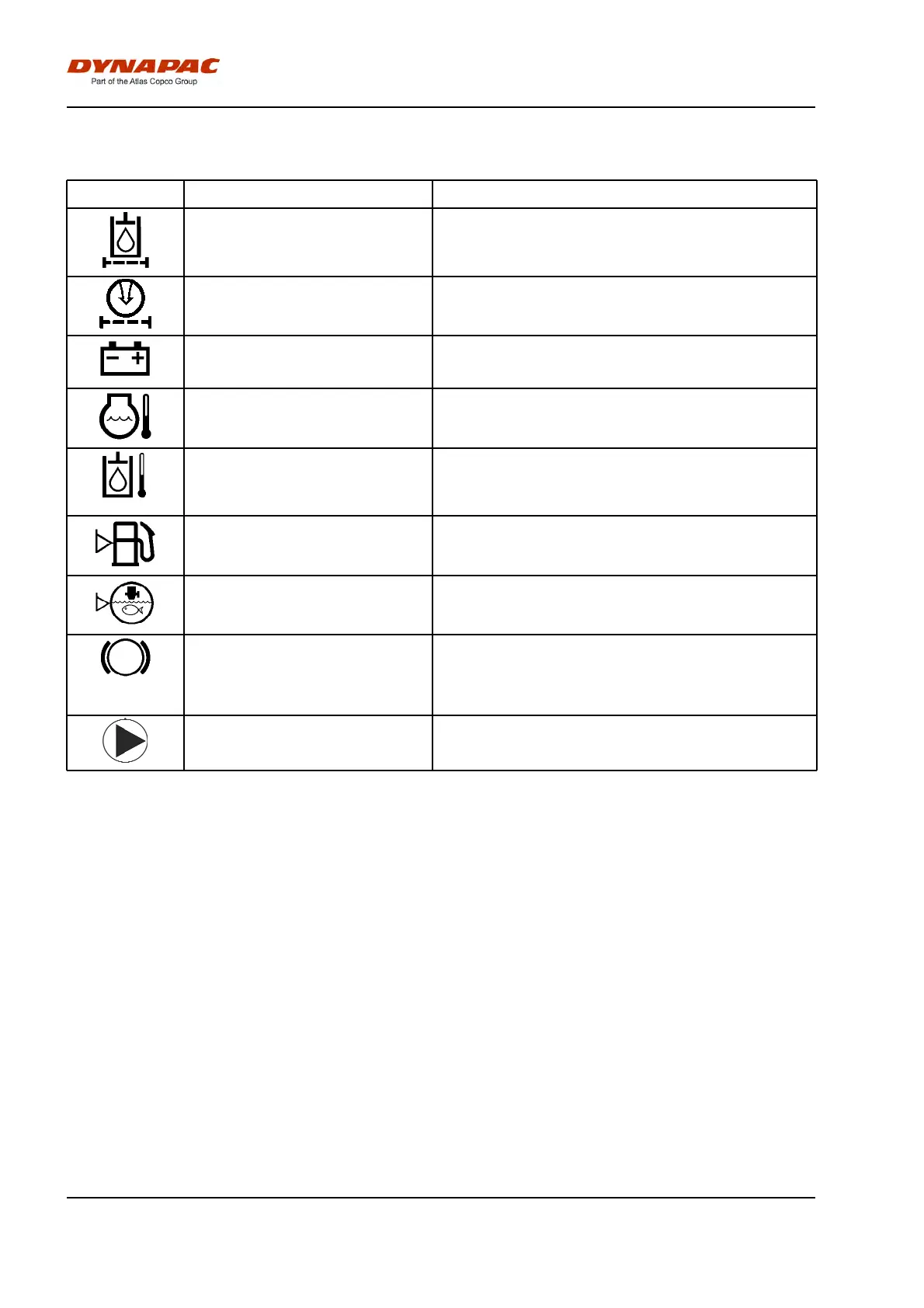

Machine alarm
Symbol Designation FunctionSymbol Designation Function
Warning symbol, hydraulic fluid filter If the symbol is shown when the diesel engine is running at
full speed, the hydraulic fluid filter must be changed.
Warning symbol, hydraulic fluid filter If the symbol is shown when the diesel engine is running at
full speed, the hydraulic fluid filter must be changed.
Warning symbol, air filter If the symbol is shown when the engine is running at full
speed, the air filter must be cleaned or replaced.
Warning symbol, air filter If the symbol is shown when the engine is running at full
speed, the air filter must be cleaned or replaced.
Warning symbol, battery charging If the symbol is shown when the engine is running, then
the alternator is not charging.
Stop the engine and locate the fault.
Warning symbol, battery charging If the symbol is shown when the engine is running, then
the alternator is not charging.
Stop the engine and locate the fault.
Warning symbol, engine temperature If this symbol is shown, the engine is too hot. Stop the
engine immediately and locate the fault.
Refer also to the engine manual.
Warning symbol, engine temperature If this symbol is shown, the engine is too hot. Stop the
engine immediately and locate the fault.
Refer also to the engine manual.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool by running the
engine on idle, and then locate the fault.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool by running the
engine on idle, and then locate the fault.
Warning symbol, low fuel level This symbol is shown when the fuel level is 10%.Warning symbol, low fuel level This symbol is shown when the fuel level is 10%.
Warning symbol, low sprinkler water
level
This symbol is shown when the sprinkler water level is
10% in the main tank.
Warning symbol, low sprinkler water
level
This symbol is shown when the sprinkler water level is
10% in the main tank.
Warning symbol, low braking
capacity
This symbol is shown when the oil level for the brakes is
low and/or if there is low brake pressure.
If this alarm is shown and remains after starting the
machine, or is shown during operation, stop and switch off
the machine immediately and contact Service.
Warning symbol, low braking
capacity
This symbol is shown when the oil level for the brakes is
low and/or if there is low brake pressure.
If this alarm is shown and remains after starting the
machine, or is shown during operation, stop and switch off
the machine immediately and contact Service.
Warning symbol. Error: [xx] This symbol is shown when there is an alarm from the
H1-AC unit. Error codes as per table H1-AC Alarm.
Warning symbol. Error: [xx] This symbol is shown when there is an alarm from the
H1-AC unit. Error codes as per table H1-AC Alarm.
32
