Dynapac CC424HF - Air Conditioning (Optional) - Inspection; Air Conditioning (Optional) - Cleaning

Maintenance - 50h
ICC424HF-CN1EN2.pdf 2012-11-23
Air conditioning (Optional)
- Inspection
Park the roller on a level surface, chock the wheels
and depress the parking brake control.
Park the roller on a level surface, chock the wheels
and depress the parking brake control.

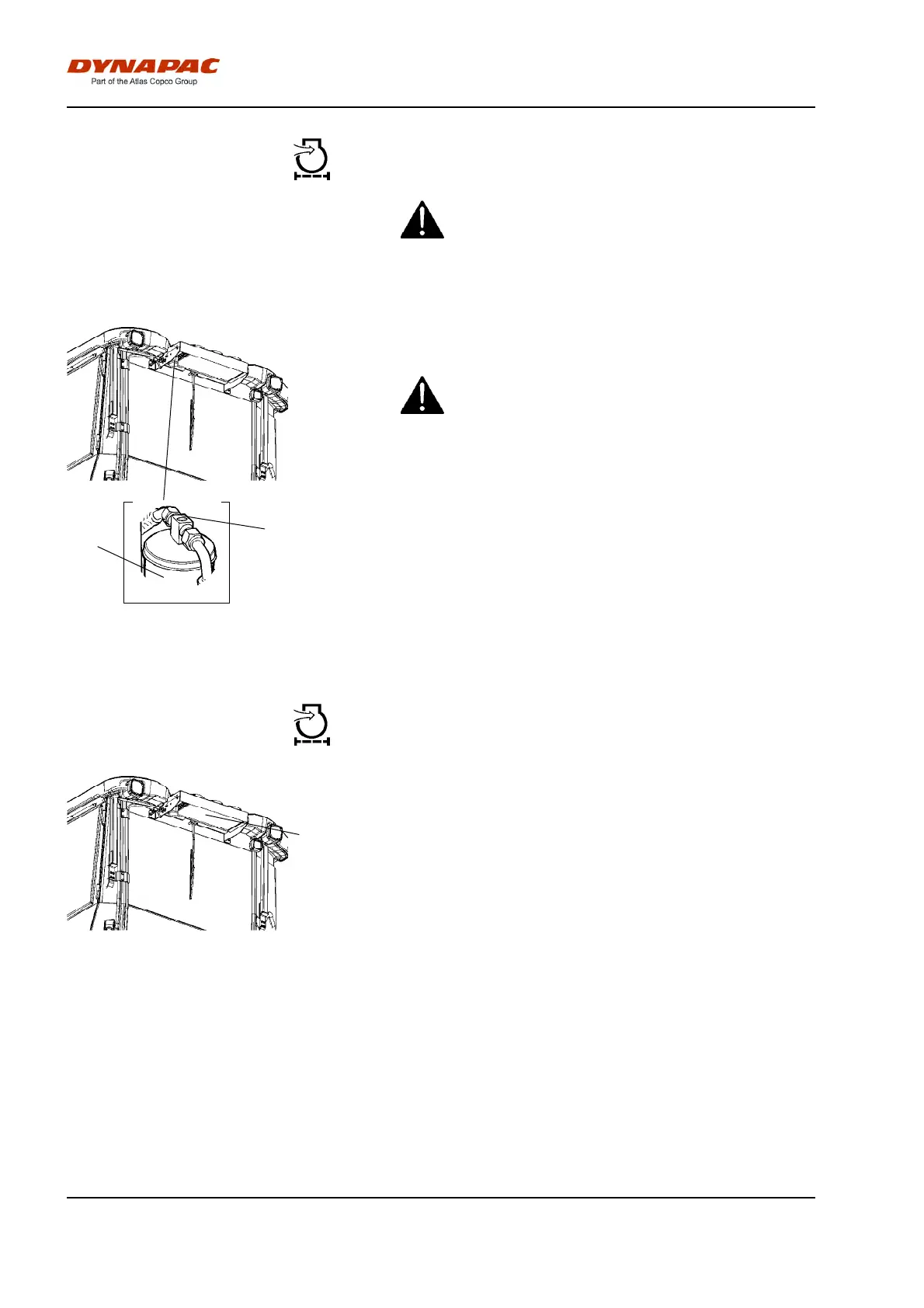

Fig. Drying filter
1. Sight glass
2. Filter holder
1
2
With the unit in operation, check using the sight glass
(1) that bubbles are not visible on the drying filter.
Always depress the parking brake knob.Always depress the parking brake knob.
The filter is located on the top of the rear part of the
cab roof. If bubbles are visible through the sight glass,
this is a sign that the refrigerant level is too low. Stop
the unit to avoid risking damage. Fill up with refrigerant.
Air conditioning (Optional)
- Cleaning
Fig. Cab
1. Condensor element
1
If there is a signifcant loss of cooling capacity, clean
the condensor element (1) on the rear edge of the cab
roof.
