Maintenance - 1000h
ICC424HF-CN1EN2.pdf 2012-11-23
Hydraulic filter
Change
Remove the filter (1) and deliver to special waste
handling. This is a single-use filter and cannot be
cleaned.
Remove the filter (1) and deliver to special waste
handling. This is a single-use filter and cannot be
cleaned.

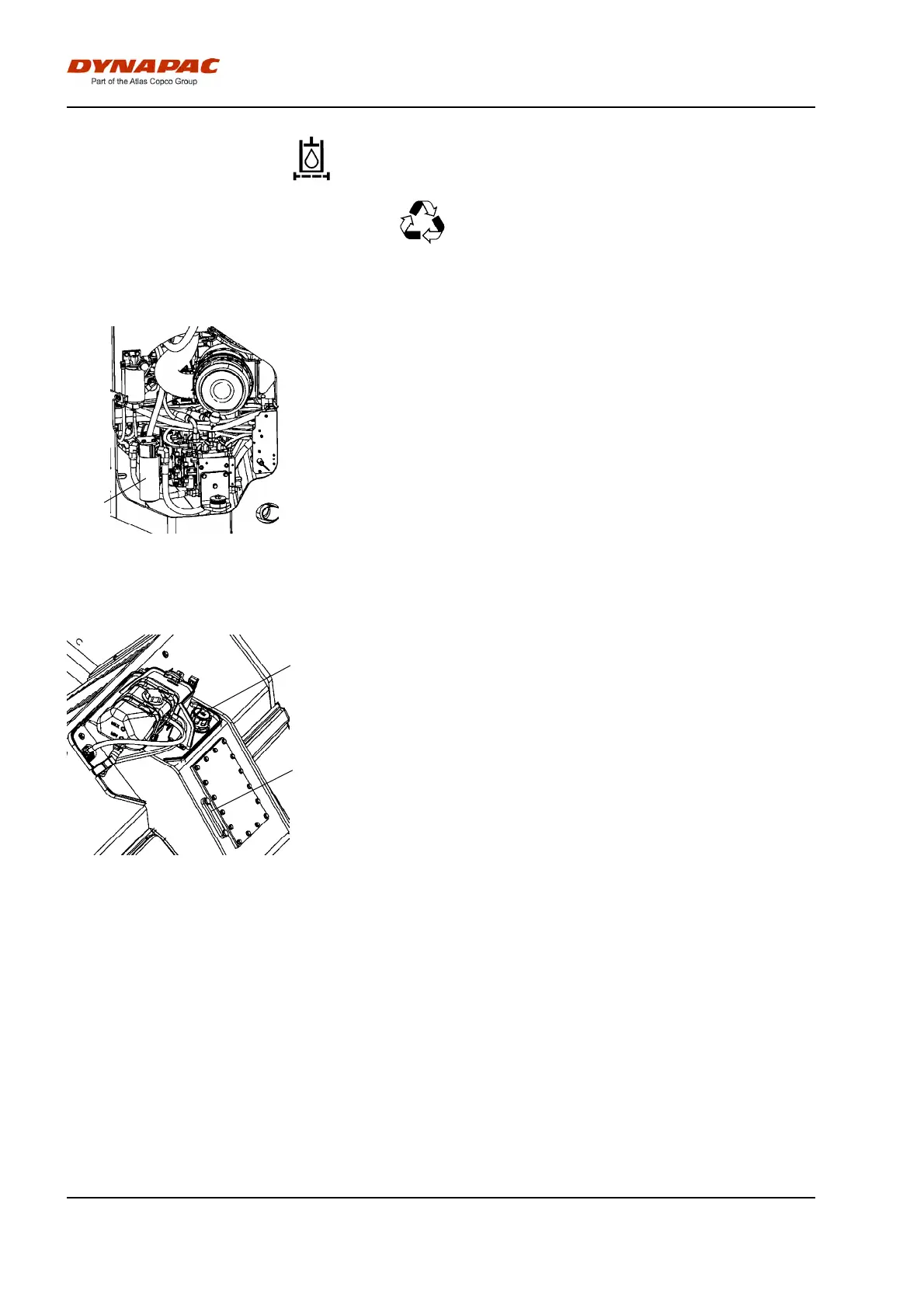

Figure. Engine compartment, left
1. Hydraulic fluid filter
1
Thoroughly clean the filter holder sealing surface.
Apply a thin coat of fresh hydraulic fluid to the rubber
gasket on the new filter.
Screw the filter on by hand, firstly until the filter gasket
makes contact with the filter base. Then rotate a
further ½ turn.
3
2
Figure. Hydraulic tank
2. Hydraulic reservoir cap
3. Sight glass
Check the hydraulic fluid level in the sight glass (3)
and top off as required. See under the heading 'Every
10 hours of operation' for more information.
Start the engine and check that the filter does not leak.
