Miscellaneous
ICC424HF-CN1EN2.pdf2012-11-23

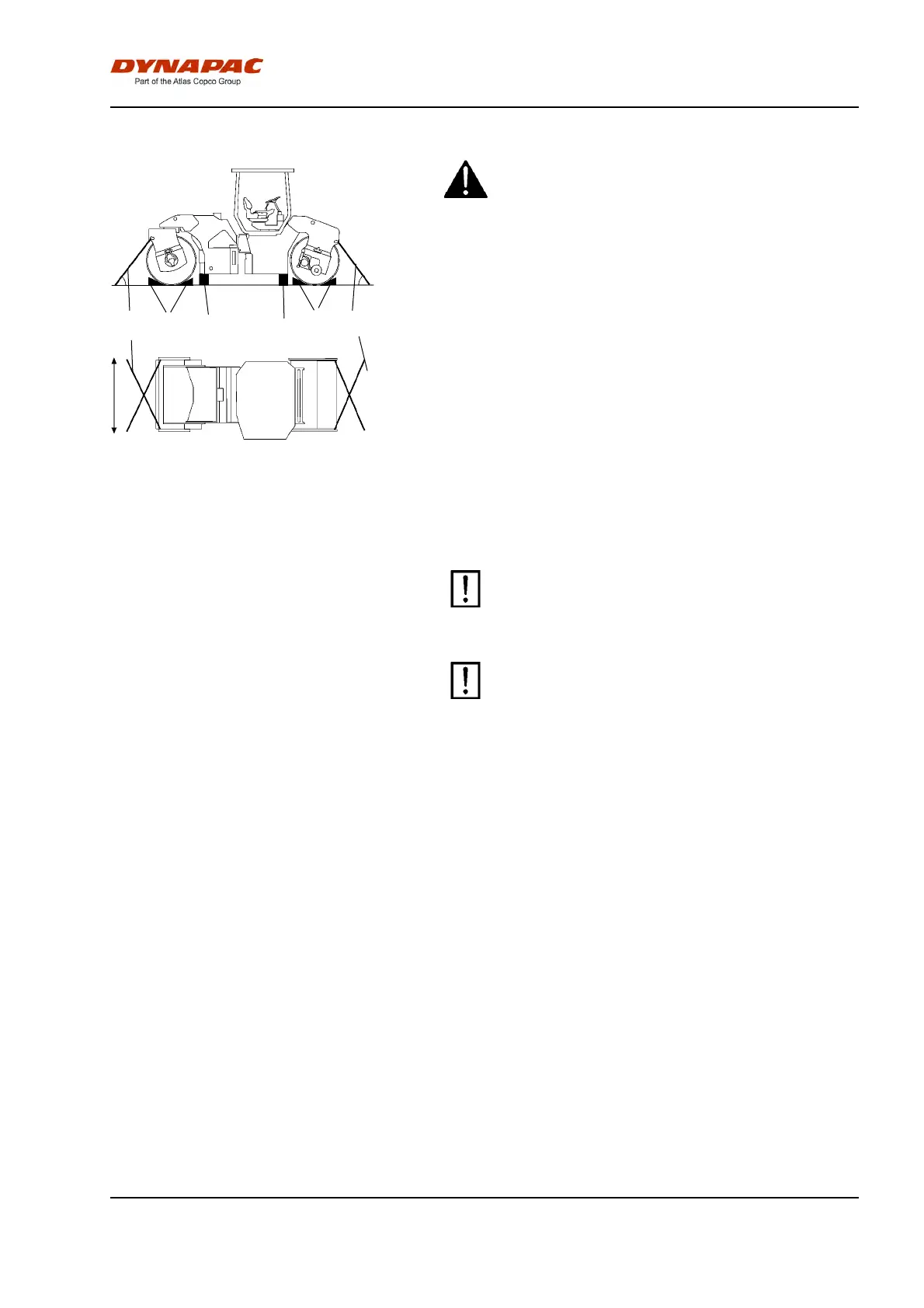

Roller prepared for transport
Fig. Positioning
1. Chocks
2. Blocks
3. Straps
1
1
2
3
3
2
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Activate the parking brake.
Make sure that the machine is in a neutral position, i.e.
that the drums are in line.
Chock the drums (1) and secure the chocks to the
transport vehicle. The chock should have an angle of
37° and minimum height of 25 cm (9.9 inches). The
drums should be chocked both forwards and
backwards.
Block up under the drum frame (2), to avoid
overloading on the rubber suspension of the drum
when lashing. Block up the machine as shown in figure
Secure the roller with chains in all four corners. The
attachment points are shown on the decals. Place the
chains in symmetrical pairs crossing each other.
Make sure that the chains, blocks and
attachments in the transport vehicle are approved
and have the requisite breaking strain. Check at
regular intervals that the chains are not slack.
Make sure that the chains, blocks and
attachments in the transport vehicle are approved
and have the requisite breaking strain. Check at
regular intervals that the chains are not slack.
Remember to return the articulation to its
unlocked position before starting the roller.
Remember to return the articulation to its
unlocked position before starting the roller.
65
