Assembling the DryExx®-Advanced-ETH
Personnel:
n
Mechanic
Protective equipment:
n
Protective work clothing
n
Protective gloves
n
Safety shoes
Tool:
n
Drill
n
Spirit level
n
Suitable hoist
– Install the control unit in close proximity to the associated metering station.
– Make sure there is adequate access for maintenance to be carried out!
Requirements:
n The suitability of the wall for wall mounting has been tested.
n The required clearances and distances are maintained.
n The required supply lines (power
, signal cables etc.) are present at the installation site.
For wall mounting, the following parts are supplied:
Quantity Description Article no.
4 Wood screw, 8 x 60 mm 413110926
4 Wall fixing plugs 417200005
4 Spacer 38631302
4 Washer 413500313
When installing on a mounting frame, attach the welding bolts supplied with the
equipment to the intended surface as specified in
Fig. 6 .

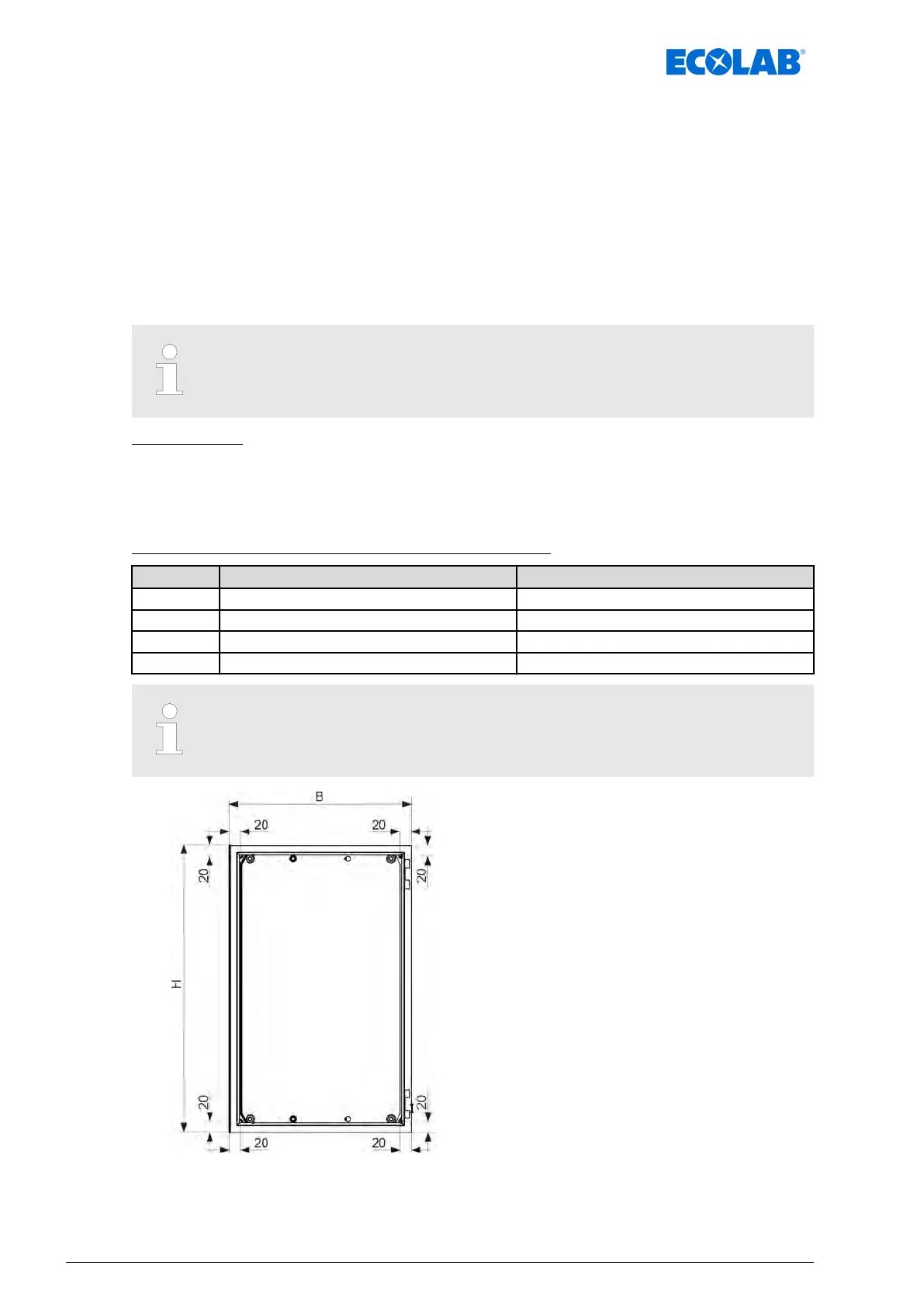

Fig. 6: Wall mounting: DryExx
®
control unit
Assembly and connection
34Ver. 08-04.2024
