Emulex Fibre Channel - Figure 7-24 Adapter Information Screen

Boot for the Fibre Channel Protocol User Manual P010096-02A Rev. A
7. Configure EFIBoot via UEFI HII (Human Interface Infrastructure) in a UEFI 2.1 System
Display Adapter Information
104
2. From the Adapter configuration Main menu, select Display Adapter Info and press
<Enter>. A screen appears displaying information about the selected adapter.

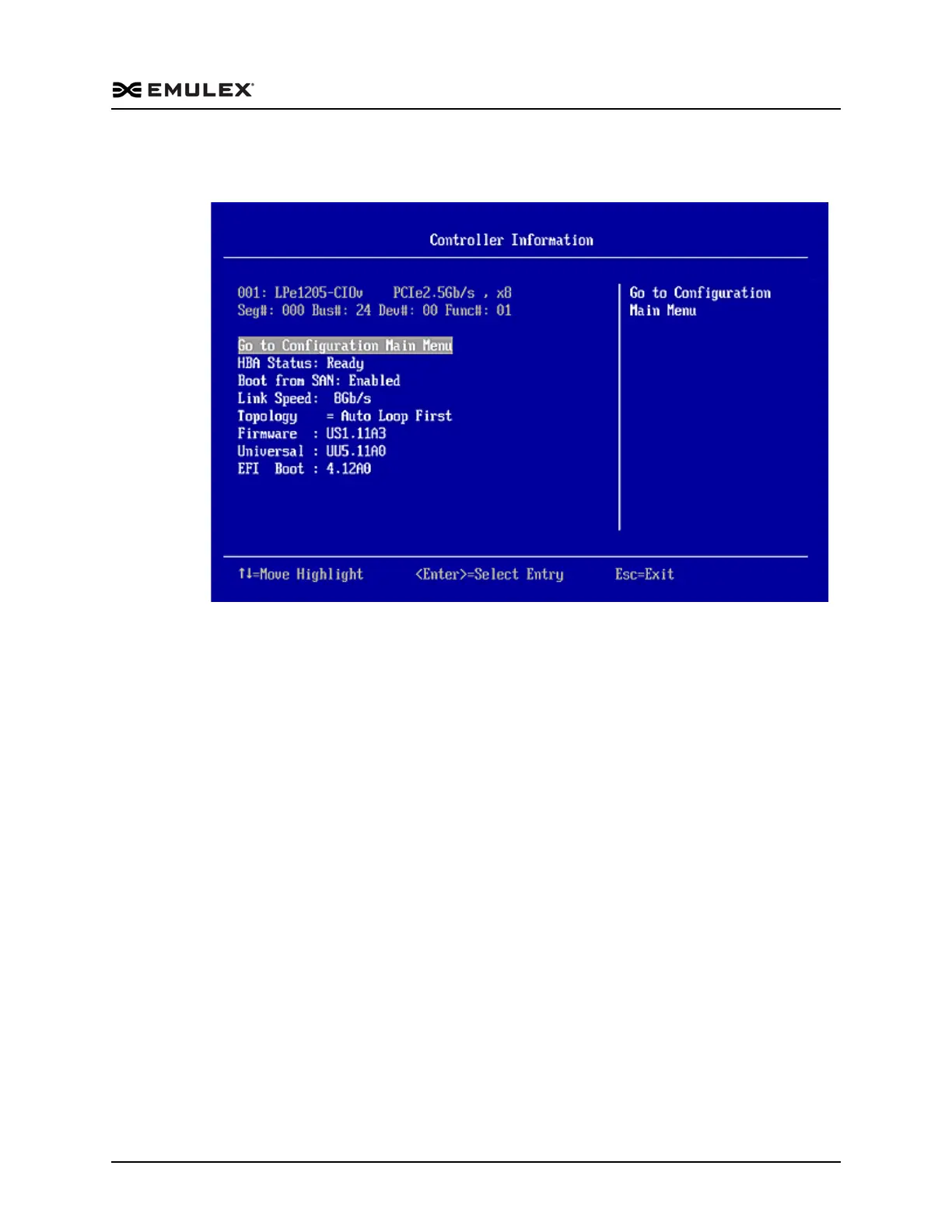

Figure 7-24 Adapter Information Screen
Note: This screen is different for LPe16000 adapters, but the functionality is the same.
