8. Troubleshooting
Run Adapter Diagnostic Tests
112
As tests are performed a screen similar to the following is displayed:

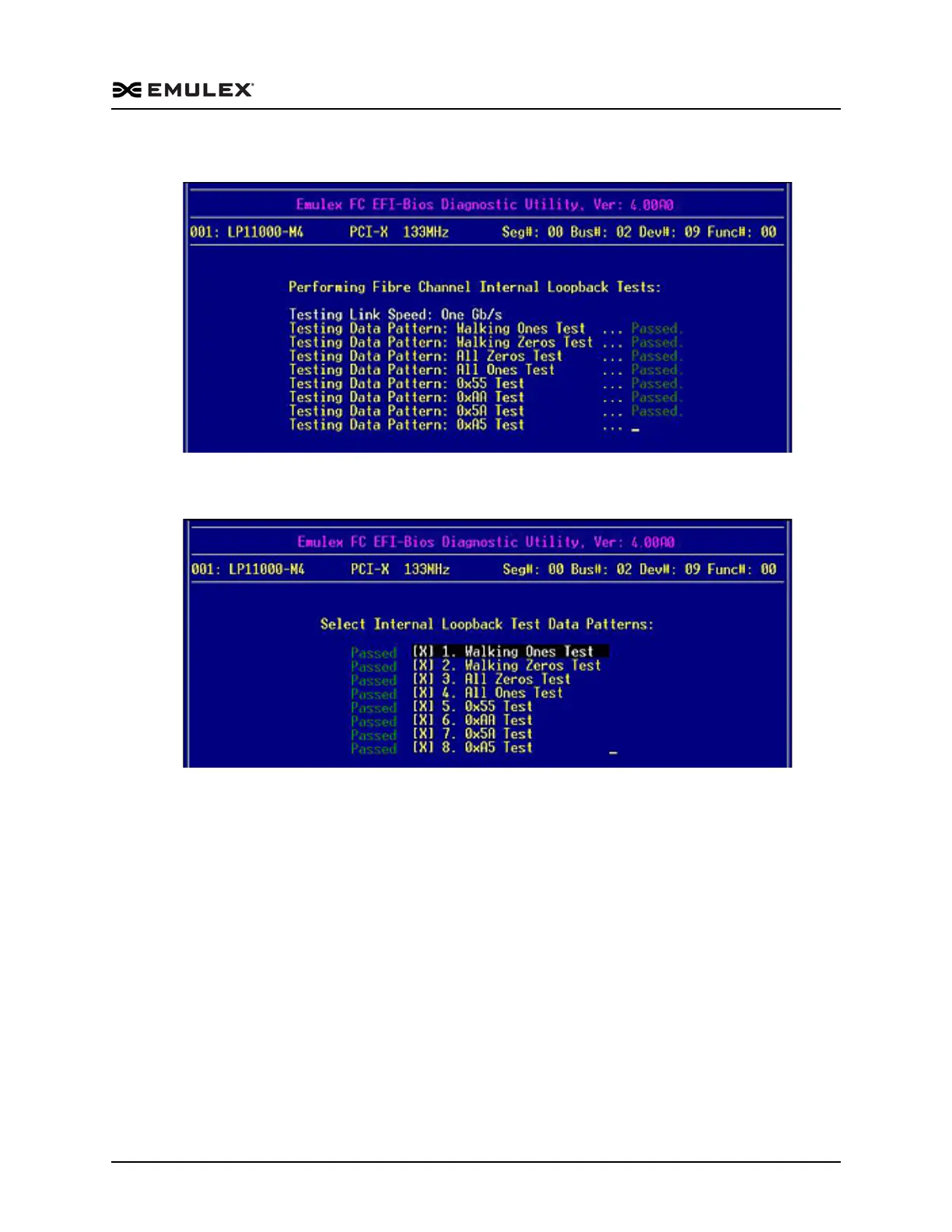

Figure 8-8 Internal Loopback Test Progress Screen
Test results are displayed on the Test Data Pattern menu and saved to results log.
Figure 8-9 Internal Loopback Test Data Pattern Results Screen
Run Adapter Diagnostic Tests
The Adapter Diagnostic Tests include adapter restart, display of some configuration
parameters, results of linkup and target login. These actions cannot be selected
individually. If any one of these tests fail, Failed is displayed on the Diagnostic Test
menu (Figure 8-3).
