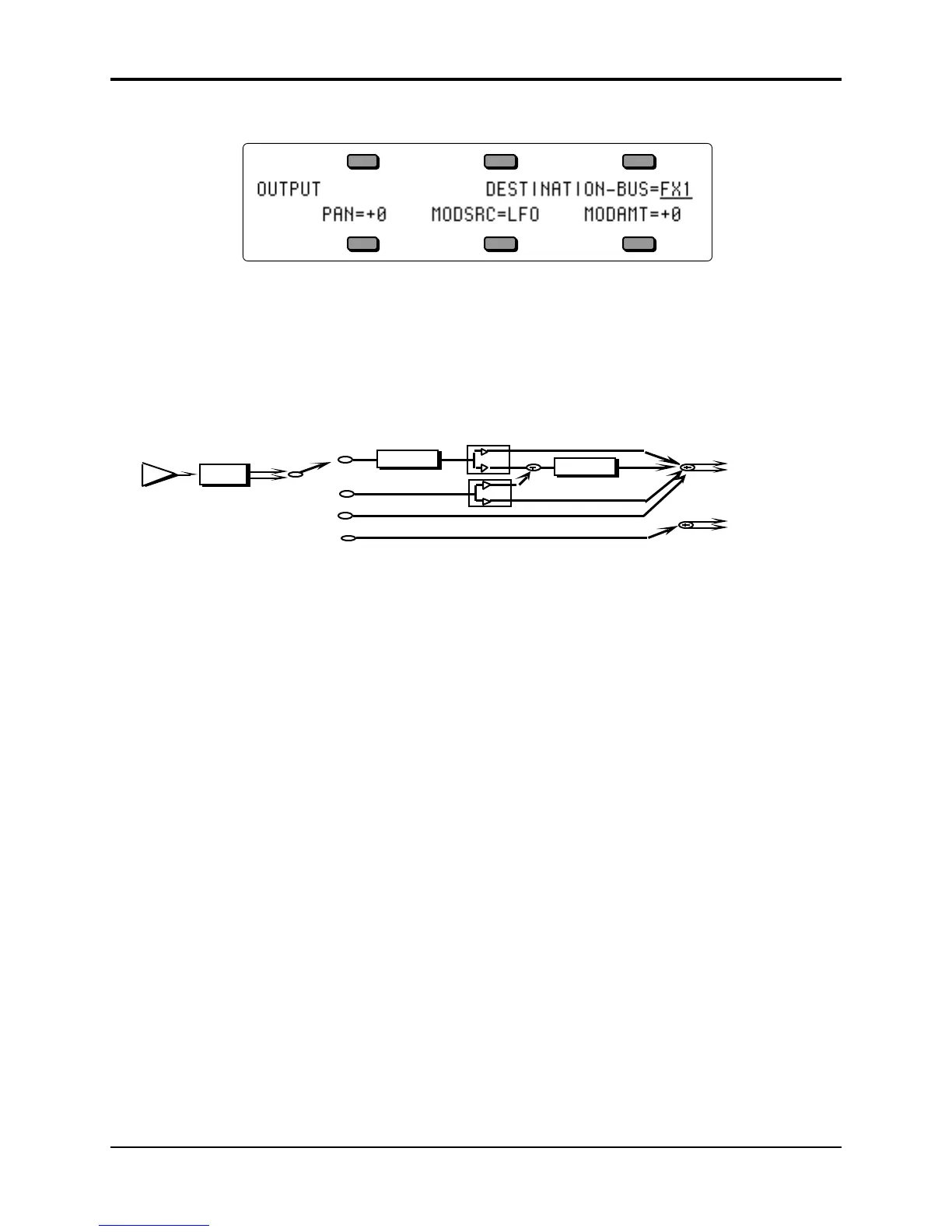

Press the Output button again. The display shows the second OUTPUT sub-page:
DESTINATION-BUS Range: FX1, FX2, DRY, or AUX
Each WaveSample within a Sampled Sound can be routed to one of four stereo “busses:”
• FX1, FX2, and DRY feed the main stereo outputs of the TS-10.
• AUX sends the voice directly to the AUX Outputs. Note that voices sent to the AUX Outputs
are always dry; that is, they bypass the effects processor.
The diagram below shows a common routing of the signals for each bus. See the sections on
“Effects” for more on programming specific effects.
AUX
Vol
Pan
L
R
L
R
Effect 2
FX1
FX2
Mix1
Mix2
Effect 1
WaveSample Output
Destination Bus
Main Outputs
DRY
L
R
AUX Outputs
PAN Range: -99 to +99
Pans the WaveSample within the stereo field. A setting of -99 is panned hard left, and +99 is
panned hard right. A value of +00 pans the voice center. The effect of a pan modulator (below)
will be added to this.
MODSRC Range: various
Selects a modulation source for the WaveSample pan from among the 15 available modulators.
This will cause the WaveSample’s location in the stereo field to vary with the output level of the
modulation source.
MODAMT Range: -99 to +99
Determines the amount by which the assigned volume modulator will affect the pan of the
WaveSample.
