Section 15 — Sampled Sound Parameters TS-10 Musician’s Manual
14
FILTER 1 Page

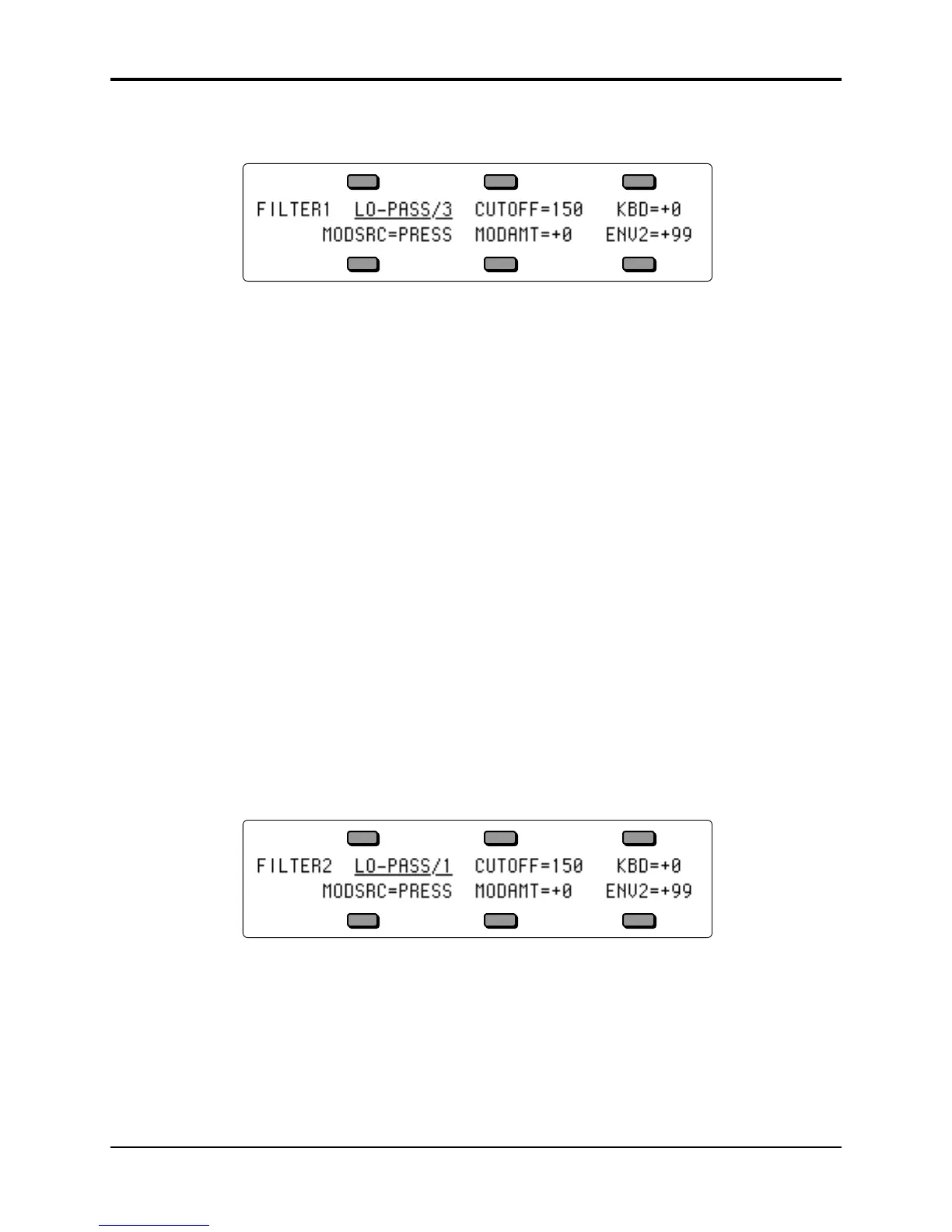

Press the Filters button. The display shows the FILTER1 page.
FILTER1 Mode Range: LO-PASS/2 or LO-PASS/3
Determines whether Filter 1 will be a 2-pole or a 3-pole low-pass filter.
CUTOFF Range: 0 to 150
Determines the initial filter cutoff frequency for each of the two filters. With a low-pass filter, a
setting of 150 lets all the original signal pass through the filter. With a high-pass filter, a setting of
0 lets through all of the original signal. This setting represents the “filter floor,” or manual level.
The effect of any selected modulators will be added to (or subtracted from) this level.
KBD Range: -99 to +99
Sets the amount by which the location of a note on the keyboard will modulate the filter cutoff
frequency (filter keyboard tracking). To have the filter track the keyboard exactly set KBD=+50.
MODSRC Range: various
Selects a modulation source for the filter cutoff frequency from among the 15 available
modulators.
MODAMT Range: -99 to +99
Determines the amount by which the assigned filter modulator will affect the filter cutoff
frequency.
ENV2 Range: -99 to +99
Determines the amount by which Envelope 2 will affect the filter cutoff frequency.
FILTER 2 Page
Press the Filters button again. The display shows the FILTER2 page:
FILTER2 Mode Range: HI-PASS/2, 1 or LO-PASS/2, 1
FILTER 2 can be configured as a 2-pole or 1-pole high-pass filter, or a 2-pole or 1-pole low-pass
filter.
The remaining parameters and ranges are the same as for FILTER1.
