C8 Maintenance 2. General Maintenance
C Series Maintenance Manual Rev.2 195

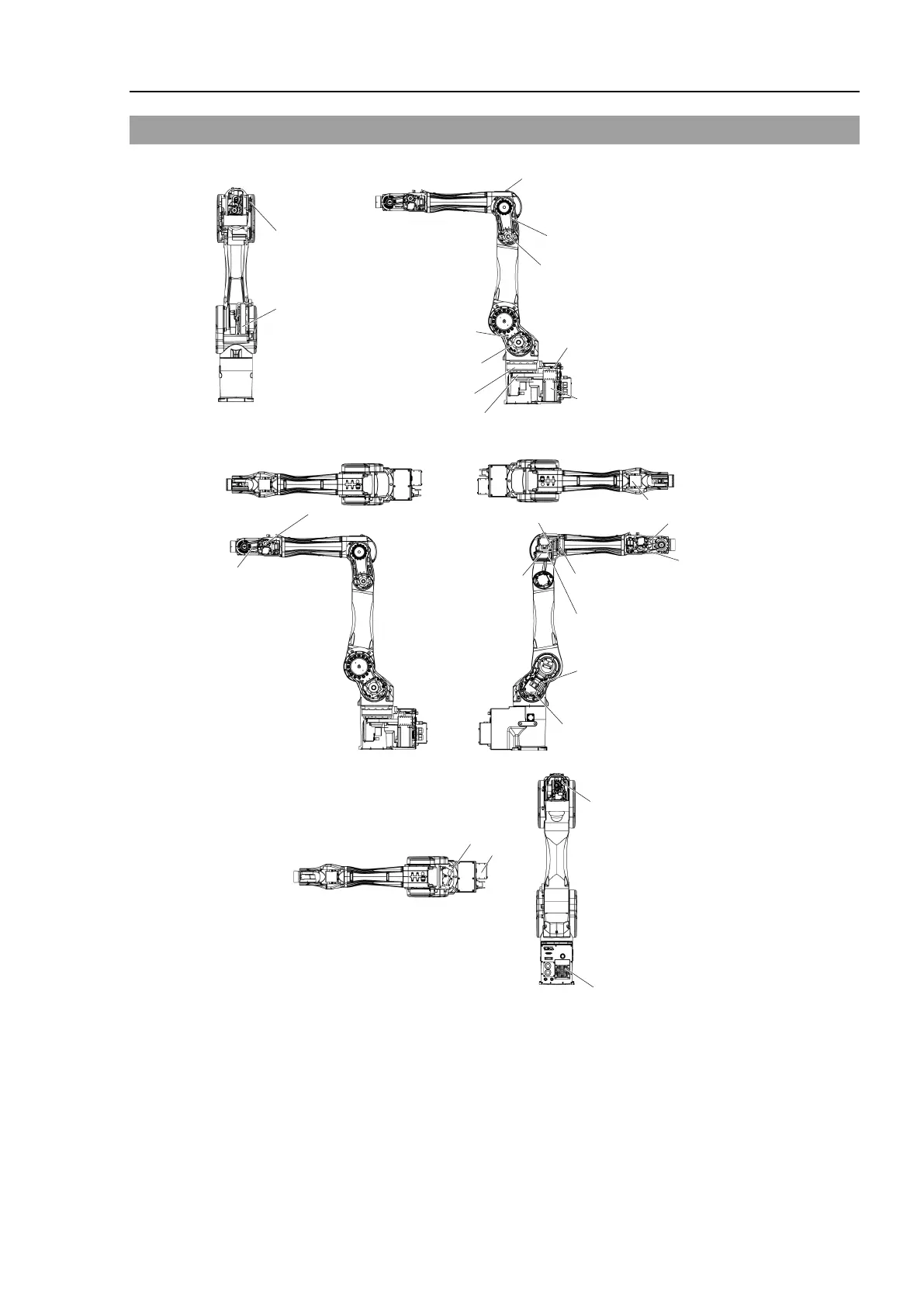

2.5 Layout of Maintenance Parts
Joint #2 Reduction gear unit
Joint #2 Motor +
Electromagnetic brake
Joint #2 Timing belt
Joint #1 Electromagnetic brake
Joint #1 Motor
Joint #1 Timing belt
Joint #1 Reduction gear unit
Joint #3 Reduction gear unit
Joint #3 Motor +
Electromagnetic brake
Joint #3 Timing belt
LED lamp
Joint #5 Motor
+Electromagnetic brake
Joint #5 Timing belt
Joint #6 Motor
+Electromagnetic brake
Joint #6 Timing belt
Joint #5, #6 Reduction Gear Unit Set
Joint #4
Electromagnetic brake
Joint #4
Motor
Joint #4
Reduction gear unit
Joint #4 Timing belt
Battery board
Battery
Control board 2
Control board 1
Fan
Fan
(Figure: C8-A1401* (C8XL))
