C4 Maintenance 3. Covers
C Series Maintenance Manual Rev.2 15

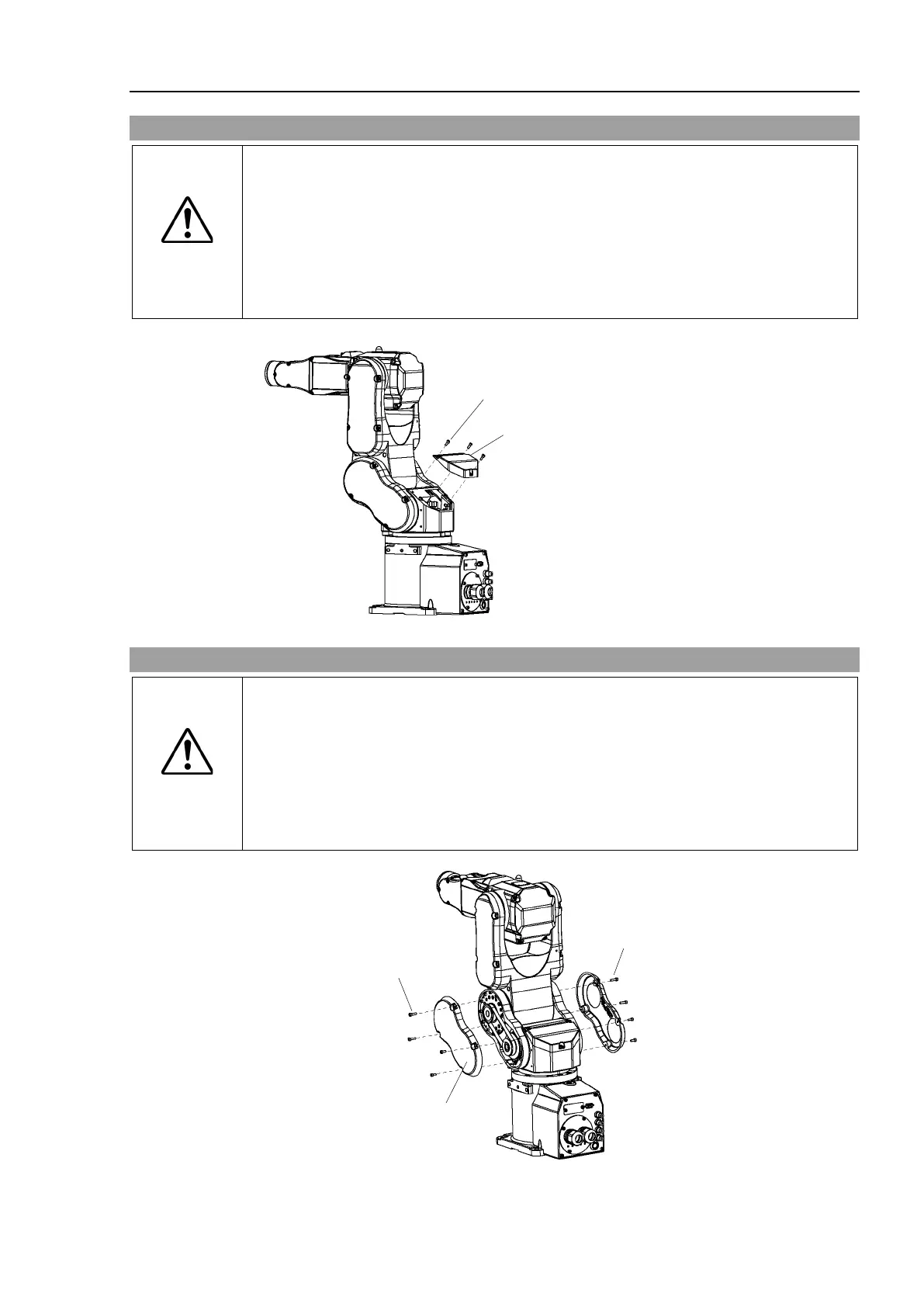

3.1 Arm #1 Top Cover
CAUTION
■
When mounting
the cover, be careful not to get the cables caught in it or bend
the
m forcibly to push into the cover.
Unnecessary strain on cables may
result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result in electric
shock and/or improper function of the robot system.
When
routing the cables, check the cable locations at removing the cover. Be
sure to
place the cables back to their original locations.
3-M3×8
(Cross recessed truss head small screws)
Tightening torque: 0.45±0.1 N·m
Arm #1 top cover
3.2 Arm #1 Side Cover
CAUTION
■
When
mounting the cover, be careful not to get the cables caught in it or bend
the
m forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure.
These are extremely hazardous and may result in electric
shock and/or improper function of the robot system.
When
routing the cables, check the cable locations at removing the cover. Be
sure to
place the cables back to their original locations.
Arm#1 side cover
4-M3×8
(Cross recessed truss
head small screws)
Tightening torque: 0.45±0.1 N·m
4-M3×8
(Cross recessed truss
head small screws)
Tightening torque: 0.45±0.1 N·m
