C8 Maintenance 3. Covers
200 C Series Maintenance Manual Rev.2
3.2 Arm #1 Side Cover
CAUTION
■
When
mounting the cover, be careful not to get the cables caught in it or bend
them forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure.
These are extremely hazardous and may result in electric
shock and/or improper function of the robot system.
When
routing the cables, check the cable locations at removing the cover. Be
sure to place the cables back to their original locations.

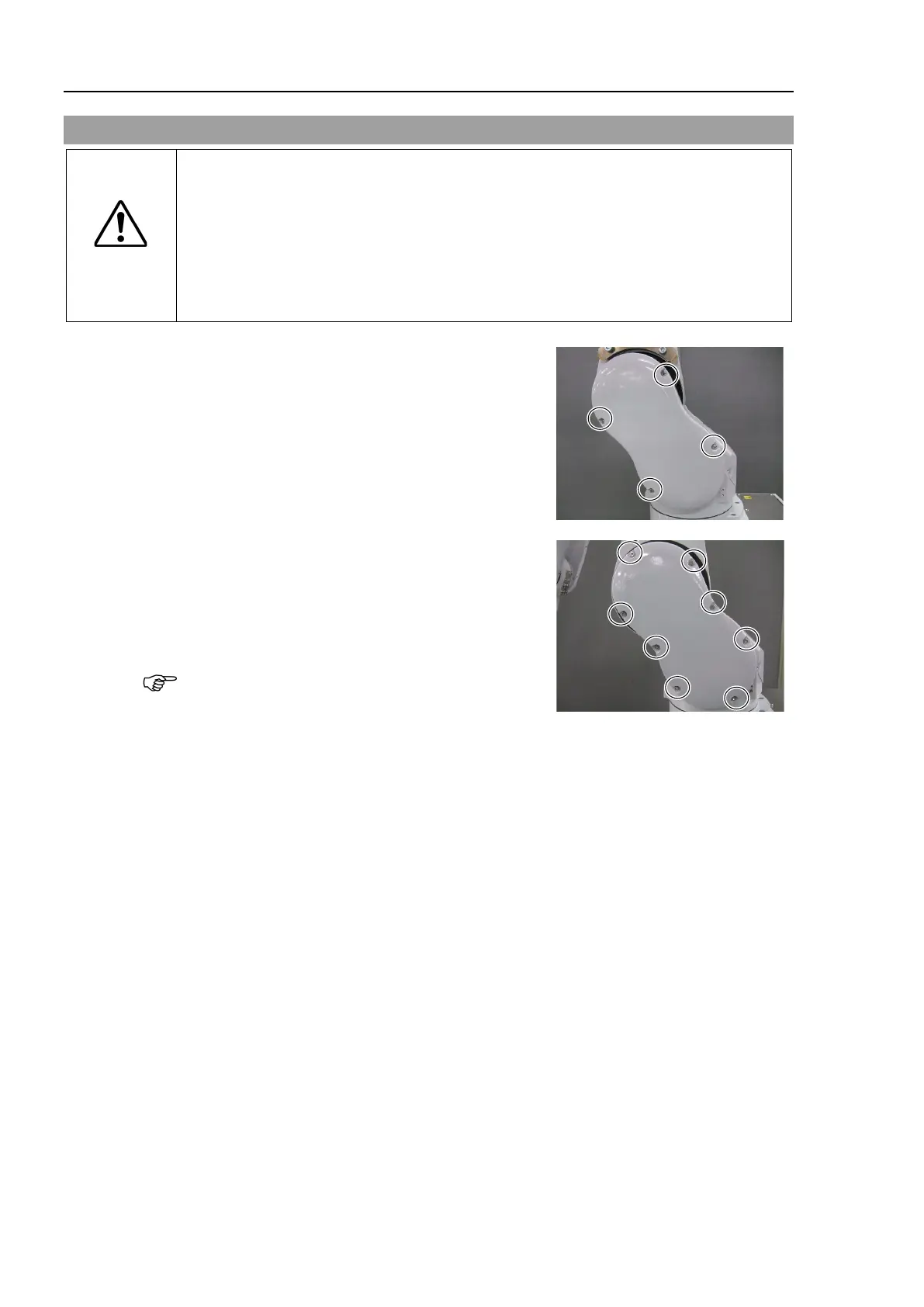

Removal
Remove the screws and then remove the Arm #1 side
cover.
S, C models:
Cross recessed truss head small screws:
4-M4×10 (one side)
P model:
Hexagon socket head cap bolts with captive
washer: 8-M4×12 (one side)
Remove the Arm #1 side gasket together.
The A
rm #1 side covers and Arm #1 side gaskets
are
the same
between right and left.

NOTE
