C8 Maintenance 3. Covers
204 C Series Maintenance Manual Rev.2
3.5 Arm #3 Maintenance Cover
CAUTION
■
mounting the cover, be careful not to get the cables caught in it or bend
them forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure.
These are extremely hazardous and may result in electric
shock and/or improper function of t
he robot system.
routing the cables, check the cable locations at removing the cover.
Be sure to place the cables back to their original locations.

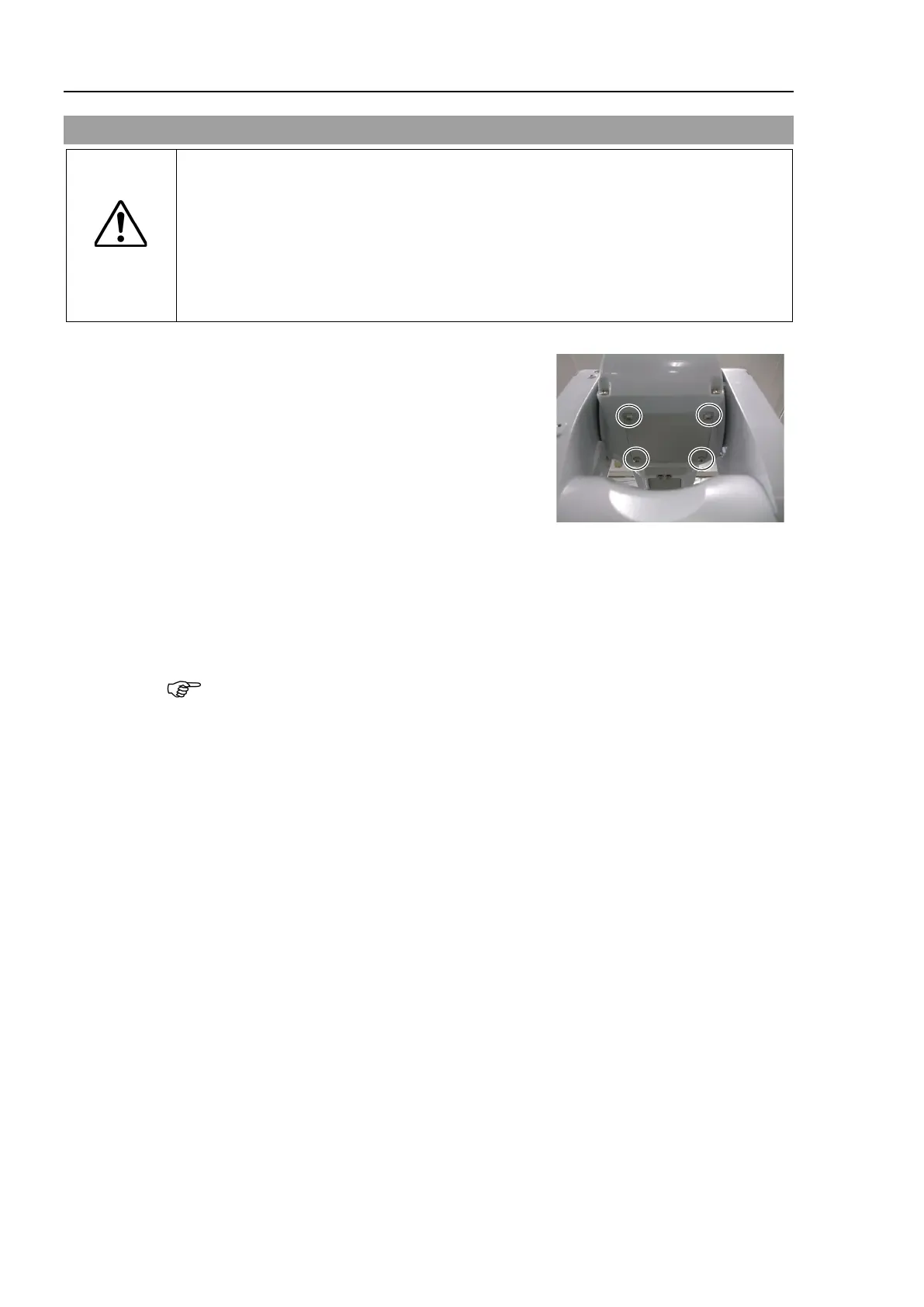

Before removing the Arm #3 maintenance cover,
move the arm to the position where you can
remove the cover easily.
Remove the screws and then remove the Arm #3
maintenance cover.
S, C models:
Cross recessed truss head small screws: 4-M4×8
P model:
Hexagon socket head cap bolts: 4-M4×10
Remove the Arm #3 maintenance gasket together. The gasket has the spacers.
Be careful not to lose them.
To Next Page
