3.9.2 M/C Cable Downward
CAUTION
■
When
mounting the cover, be careful not to get the cables caught in it or bend
them forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result
in electric
shock and/or improper function of the robot system.
When routing the cables, check the cable locations at removing the cover.
Be sure to place the cables back to their original locations.
The base cover of the M/C cable downward model is located on the backside of the base.
C8-A701*B* (C8), C8-A901*B* (C8L)
Removal

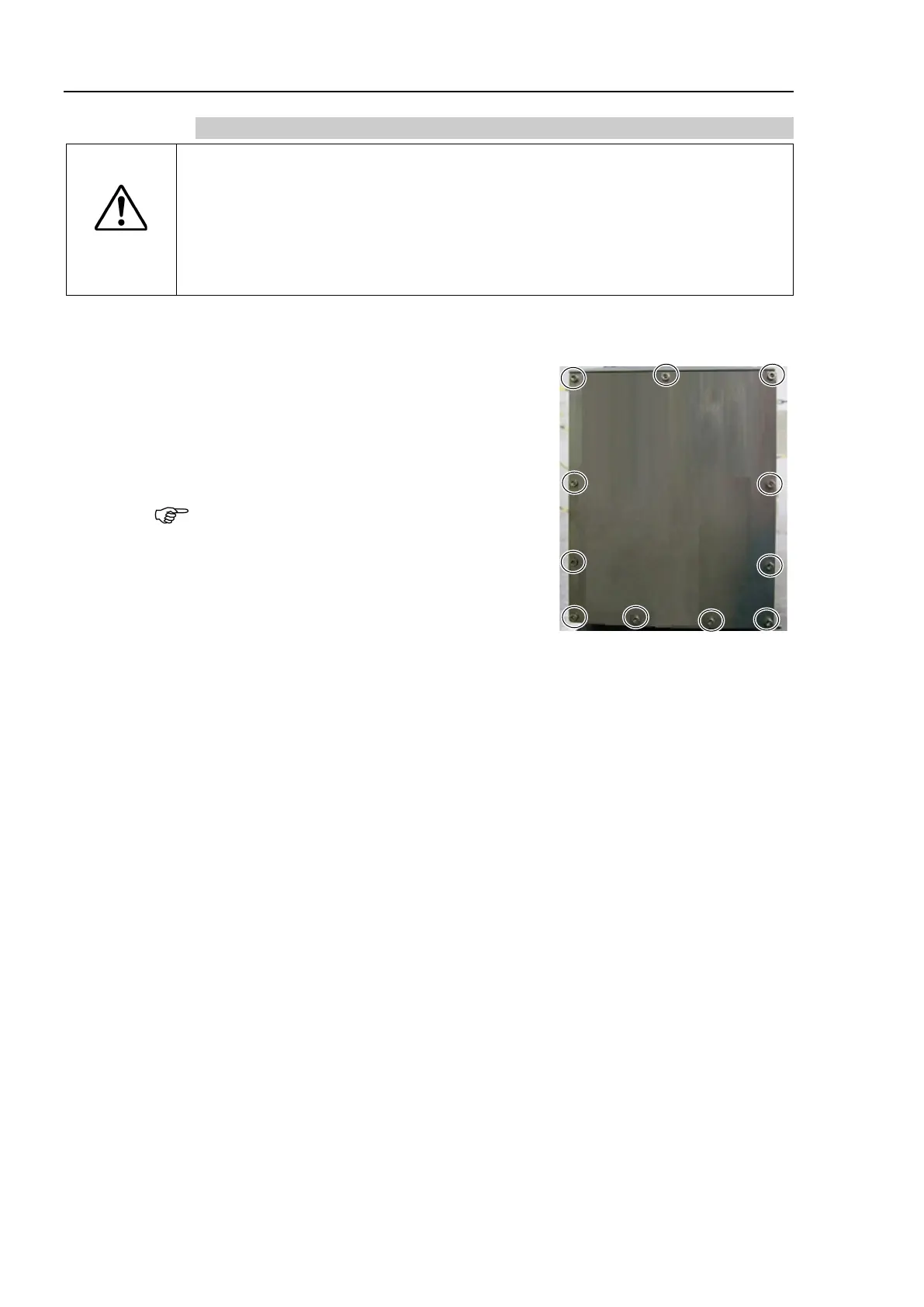

Remove the bolts and then remove the base cover.
Hexagon socket head cap bolts: 11-M4×10
P mode
l:
Remove the base rear gasket together.
The gasket has the spacers. Be careful not to lose
them.

NOTE
