C8 Maintenance 4. Cable Unit
268 C Series Maintenance Manual Rev.2

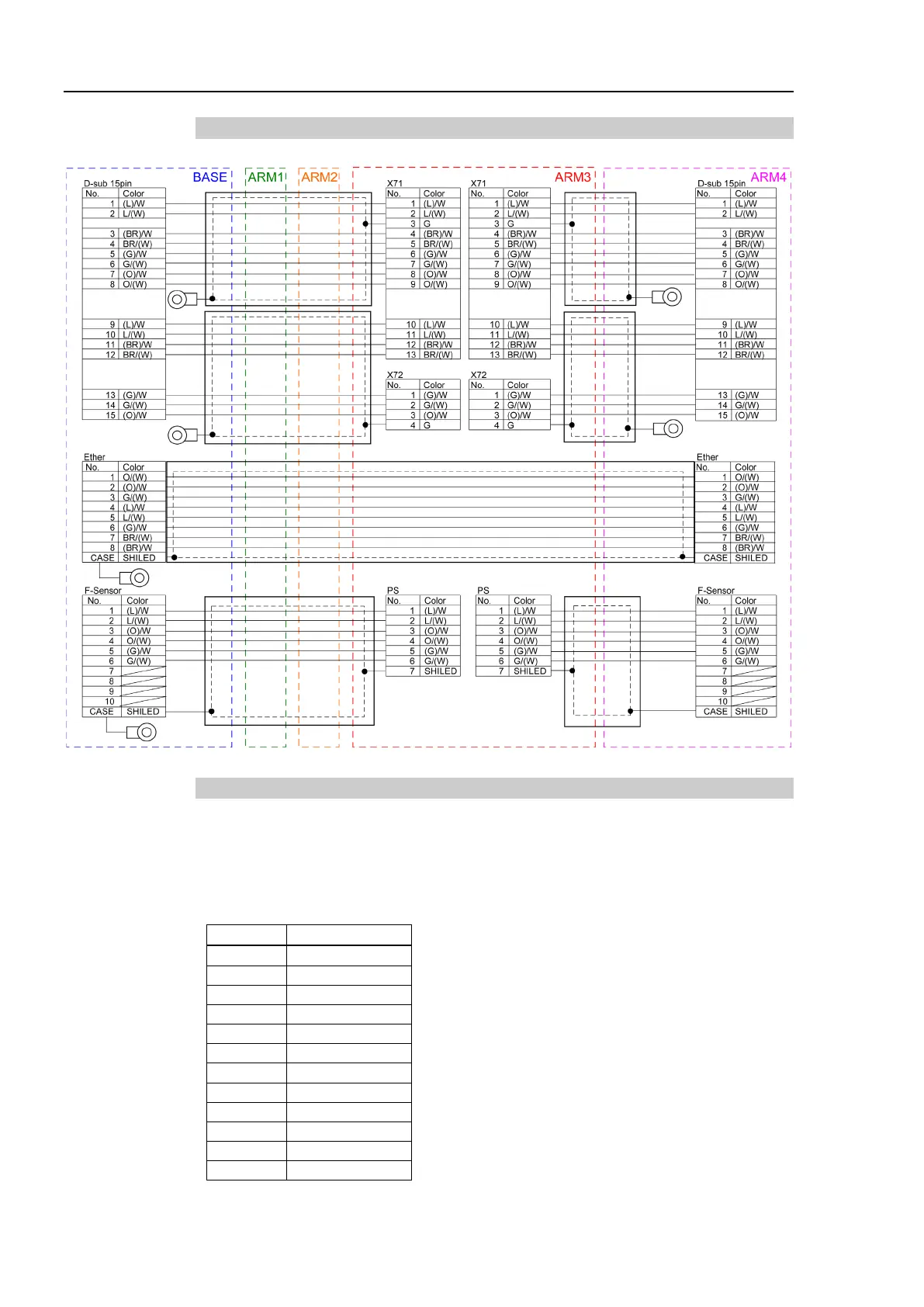

4.2.3 User Cable
4.2.4 Color of Cables
The following table shows the codes and cable colors indicated in the pin assignments
4.2.1 Signal Cable
4.2.2 Power Cable
4.2.3 User Cable
Code
Cable color
B
Black
W
White
R
Red
G
Green
Y
Yellow
BR
Brown
L
Blue
V
Violet
A
Azure
O
Orange
GL
Gray
P
Pink
