C8 Maintenance 3. Covers
C Series Maintenance Manual Rev.2 207
Installation
Insert the connectors.
RJ45 connector:
Insert the RJ45 connector to the connector on the cover.
F-sensor connector:
Insert the metallic connector to the connector on the cover.
S, C models:
Install the Arm #4 side cover to the Manipulator.
Cross recessed truss head small screws: 7-M4×10 (one side)
Tightening torque: 0.9 ± 0.1 N·m

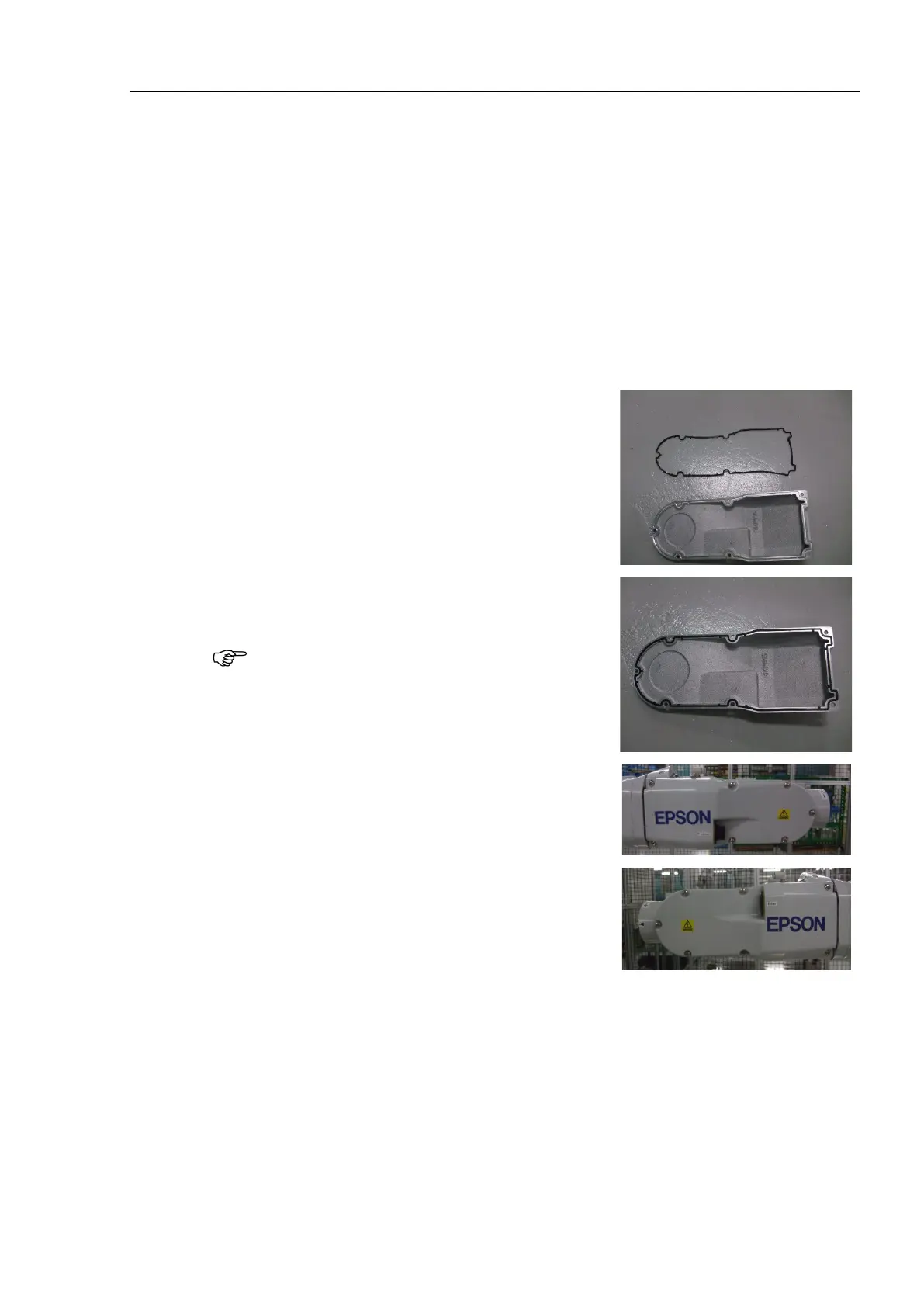

P model:
Install the Arm #4 side gasket to the grove on the
Arm #4 side cover. Install the Arm #4 cover to
the Manipulator.
Cross recessed truss head small screws:
7-M4×12 (one side
)
Tightening torque: 4.0 ± 0.2 N·m
Be careful not to get the gasket and cables caught
between the cover and the Manipulator.
Replace the gasket if there are
flaws or
deteriorations.
When replacing the cover, attach the electrical
shock warning label and other labels to the places
indicated in the photos.

NOTE
