C8 Maintenance 5. Joint #1
C Series Maintenance Manual Rev.2 299
Removal: Joint #1 Reduction gear unit (M/C cable downward)
CAUTION
■
This procedure has possibility of hands and fingers being caught
and/or damage
or malfunction
to the Manipulator.
Be very careful when performing
maintenance.
■
Do not loosen
the bolts while the Arm #2 is not tilted.
It may cause the belt come off and the Arm #2 falls down, and it is extremely
hazardous. Be sure to do the Removal steps (1) and (2) in
C8 Maintenance 6.1
Joint #2
- Replacing the Motor before removing the motor.
■
When
removing the Arm #1, there must be two or more people to work on it so
that at least one of them can support the arm while the others are
removing the
bolts.
Removing the bolts without supporting the arm may result in the arm
falling, bodily injury, and/or malfunction of the robot system
.
1. Remove the following parts.
Connector plate
Connector
Brake power supply
For details, refer to C8 Maintenance 5.2.3 Joint #1 - Replacing the Timing Belt (M/C Cable Downward),
Removal steps (1) to (8).

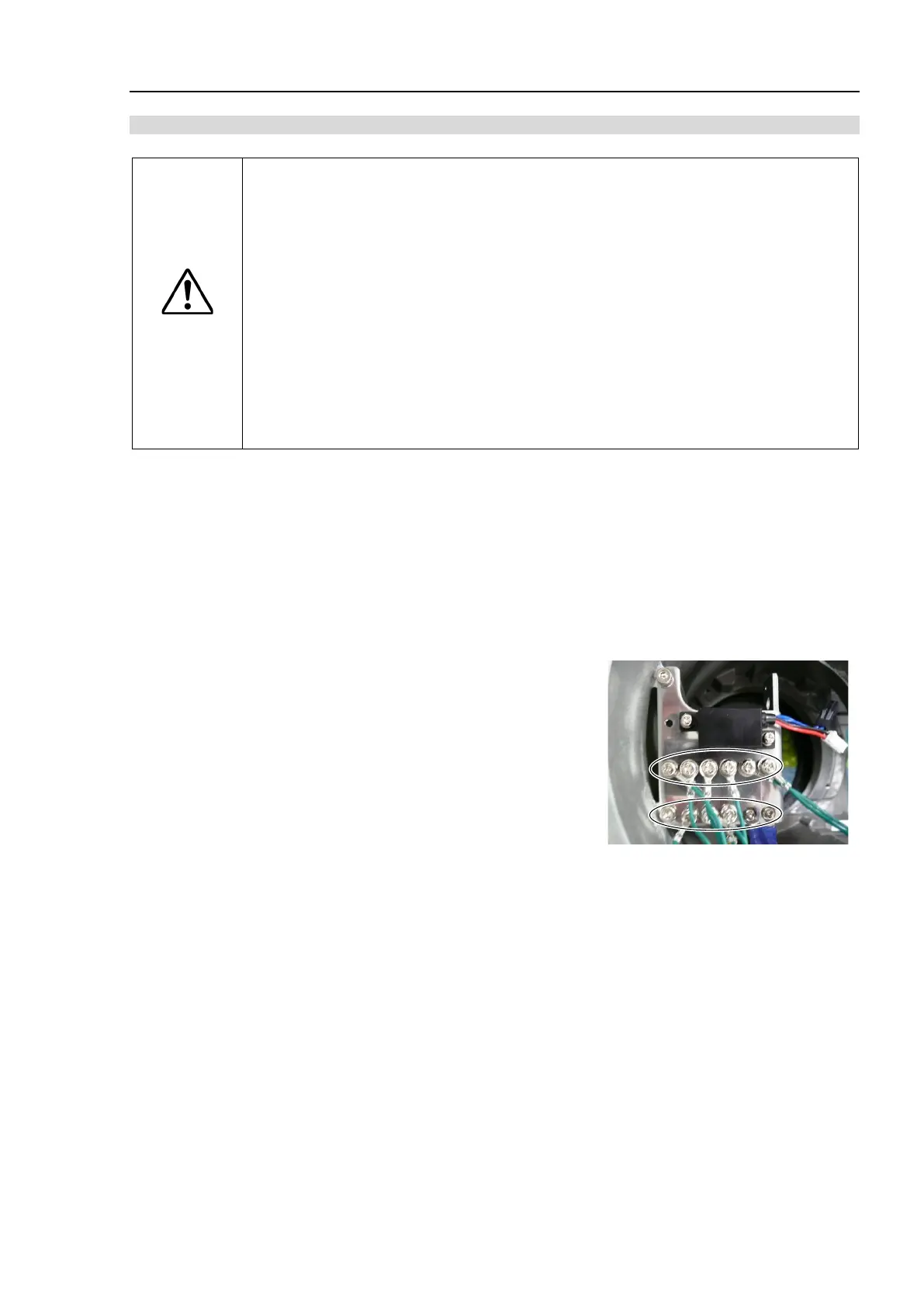

2. Remove the ground terminals.
Cross recessed head screws with washer
S, C models : 9-M4×8, 2-M3×6
P model : 10-M4×8, 2-M3×6
3. Remove the Joint #1 reduction gear unit.
For details, refer to C8 Maintenance 5.1.2 Joint #1 - Replacing the Reduction Gear Unit (M/C Cable
Backward), Removal steps (4) to (14).
