C8 Maintenance 6. Joint #2
C Series Maintenance Manual Rev.2 317
9. C8-A701** (C8), C8-A901** (C8L)

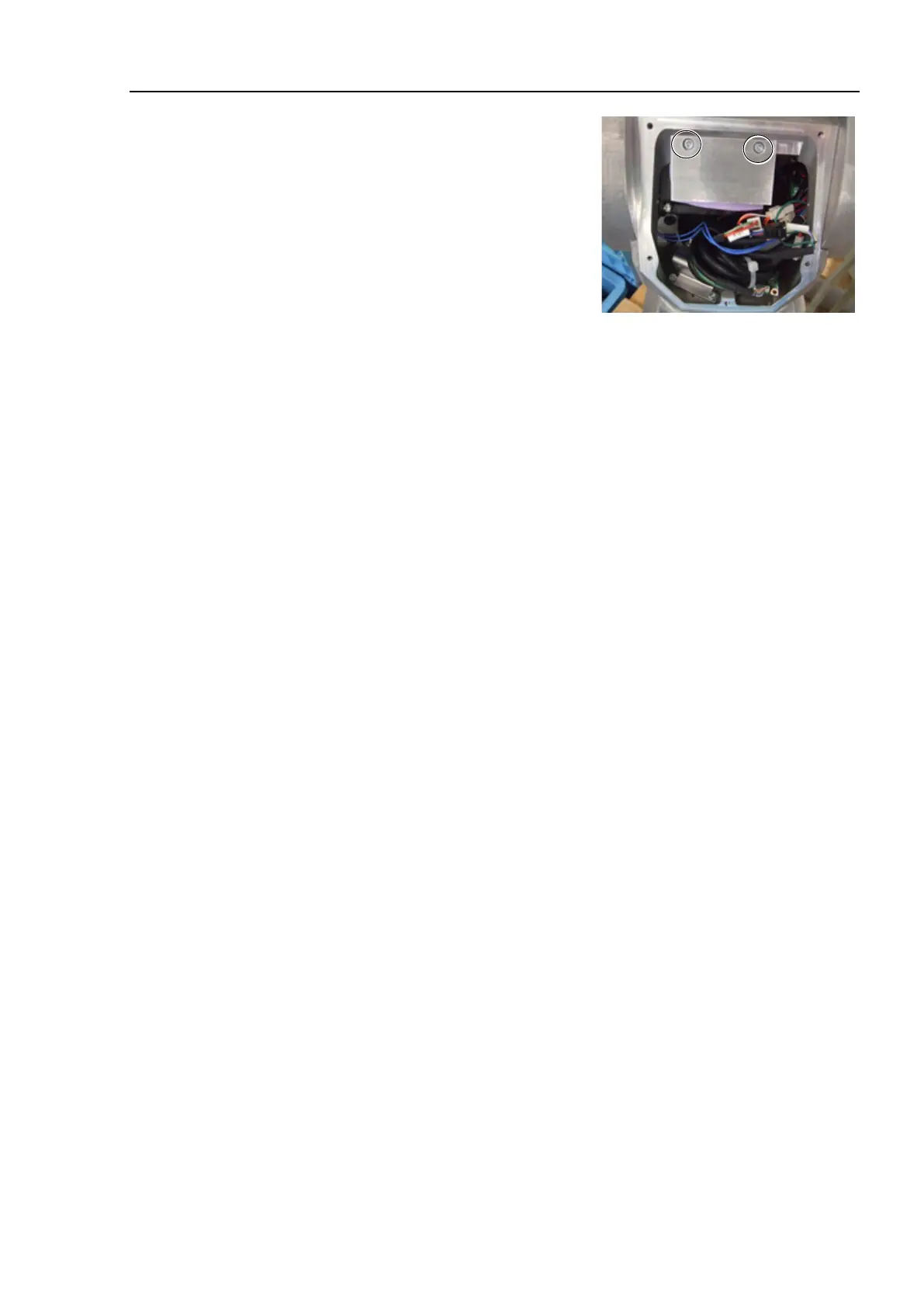

Mount the heat dissipation block and the heat dissipation sheet
to the Arm #1.
Hexagon socket head cap bolts: 2-M4×10
Tightening torque: 4.0 ± 0.2 N·m
C8-A1401** (C8XL)
C8-A1401** does not have the heat dissipation block and the
heat dissipation sheet, go on to the next step.
10. Mount the Arm #1 cover and the Arm #1 side cover.
For details, refer to C8 Maintenance: 3. Covers.
11. Perform calibration.
For details, refer to C8 Maintenance: 16. Calibration.
