C8 Maintenance 9. Joint #5
C Series Maintenance Manual Rev.2 369

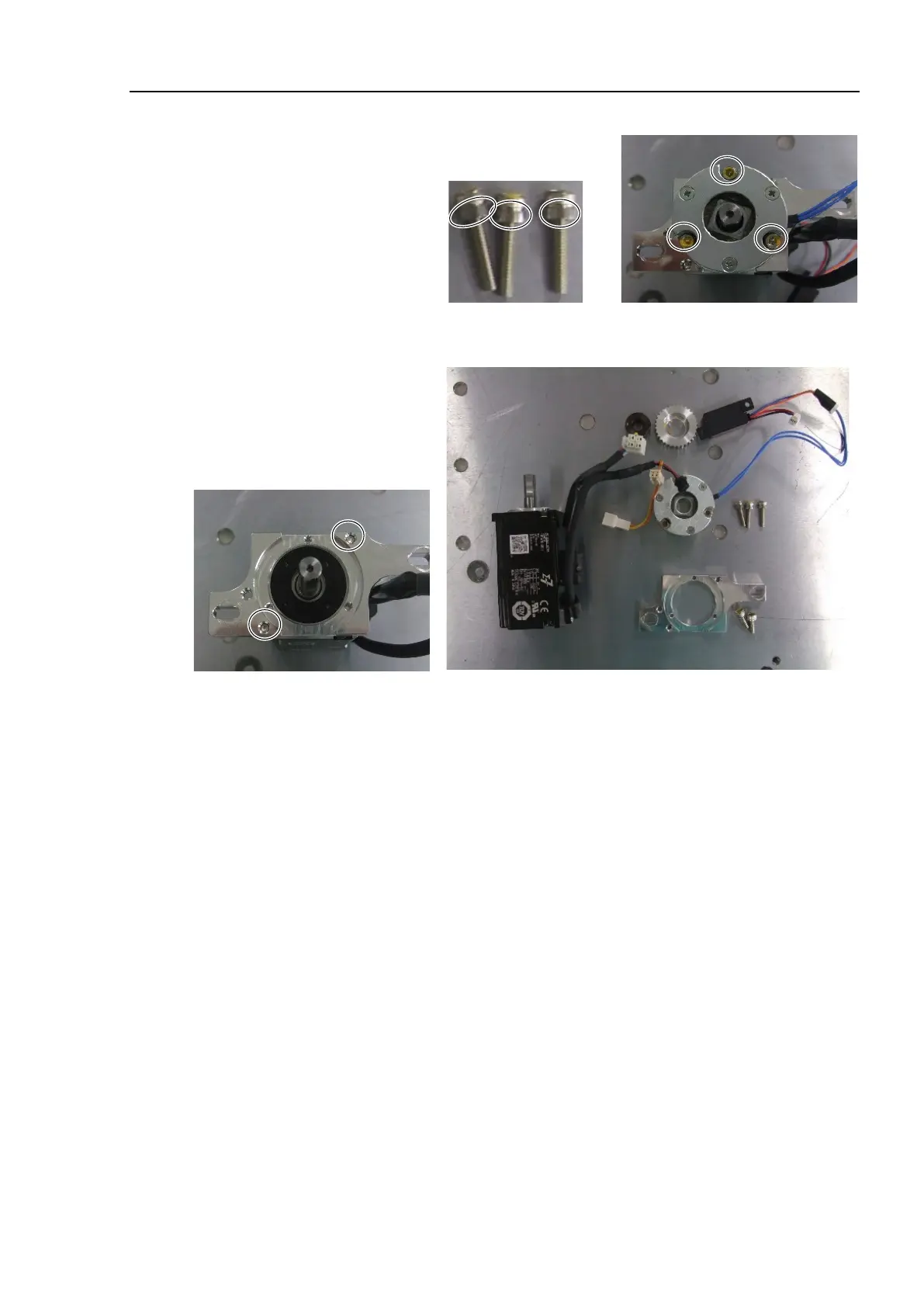

10. Remove the Joint #5 electromagnetic brake.
Hexagon socket head cap bolts: 3-M3×15 (with a spacer)
Be careful not to lose the spacers.
11. Remove the motor plate from the Joint #5 motor.
Hexagon socket head cap bolts: 2-M4×10
