Epson RC700 Series User Manual

Safety 3. Installation
RC700 / RC700-A Rev.23 25
Included items of the wall mounting option
WALL FIXING BRACKET 2 brackets
LED DISPLAY FIXING PLATE 1 plate
LED DISPLAY PLATE 1 plate
Screw (M3 × 6 mm) 4 screws
Screw (M4 × 8 mm) 4 screws
WARNING
■
B
efore installing the controller with this option, always make sure that the main
power
of the Controller is turned OFF and that the power plug is disconnected.
Performing any installation procedure while the main power is ON or the high
voltage charged area is not
discharged completely is extremely hazardous and
may result in electric shock and/or cause serious safety problems.
■
When opening the front side,
make sure to disconnect the power plug.
Touching the power supply terminal block inside the Controller while the power
supply is ON is extremely hazardous and may result in electric shock and/or
cause serious safety problems.
- Be careful not to damage the cables.
- Be careful not to drop any screws into the Controller.

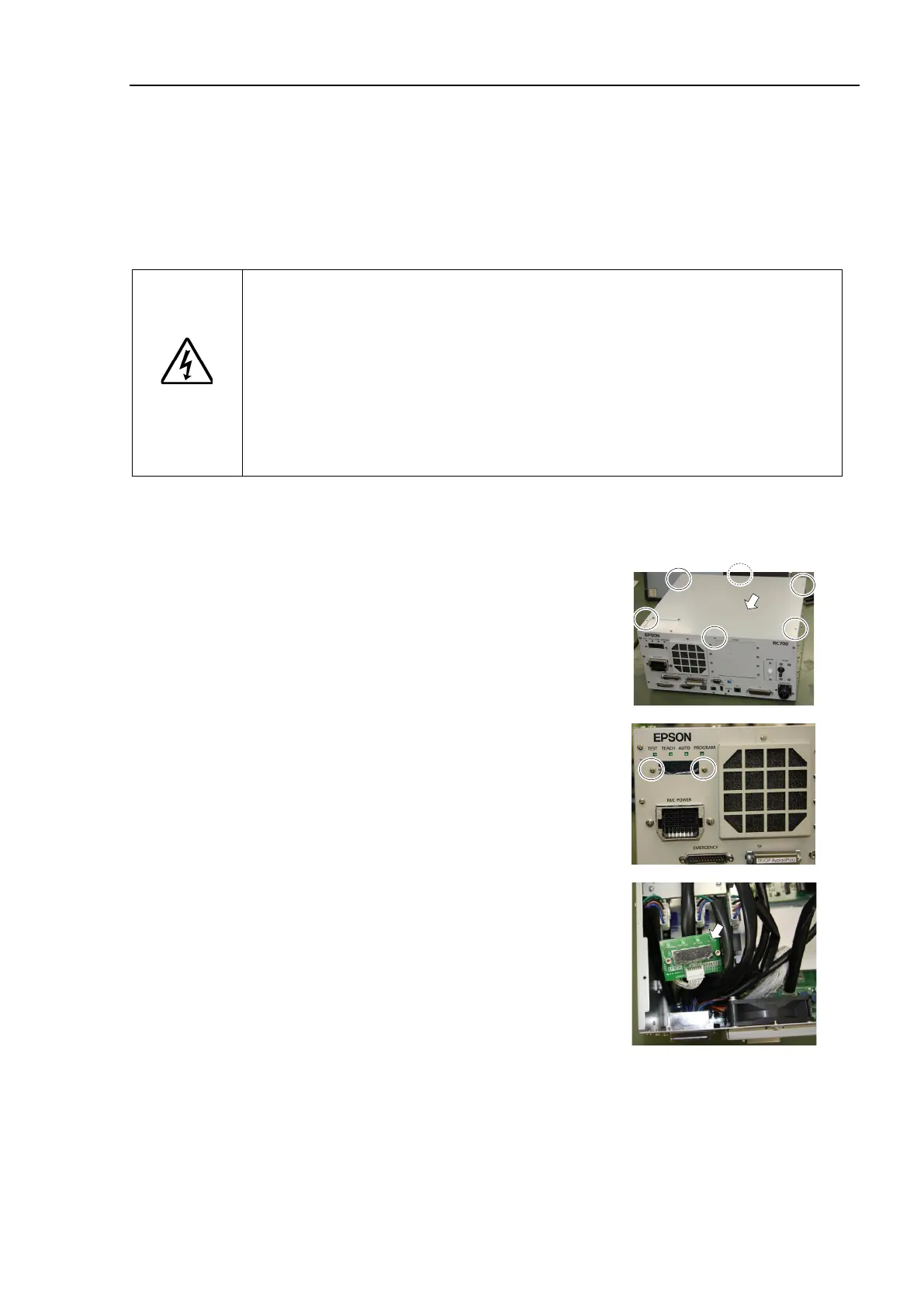

(1)
Remove the Top Cover Mounting
screws of the
controller
(Mounting screw
×6)
(2)
Remove the Top Cover.
(3)
Remove the screws fixing the
seven segment
display.
(
Controller front side: Mounting screw×2)
(4)
Remove the LED/7 segment board from the
controller.
For
RC700-A:
The
LED/7 segment board has the ferrite code
(
Reference: Maintenance
7.8.2 DMB-LED Board (RC700-A))
If the LED DISPLAY PLATE is installed with
“
wall mounting with the front side up” described
in the step
(7) below, the cable which passes the
ferrite core will be an opposite direction.
Remove the latch of the ferrite core and
change
the cable
direction, and then install the ferrite
core again.

NOTE

NOTE

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
