Epson RC700 Series User Manual

Safety 3. Installation
26 RC700 / RC700-A Rev.23
(5)

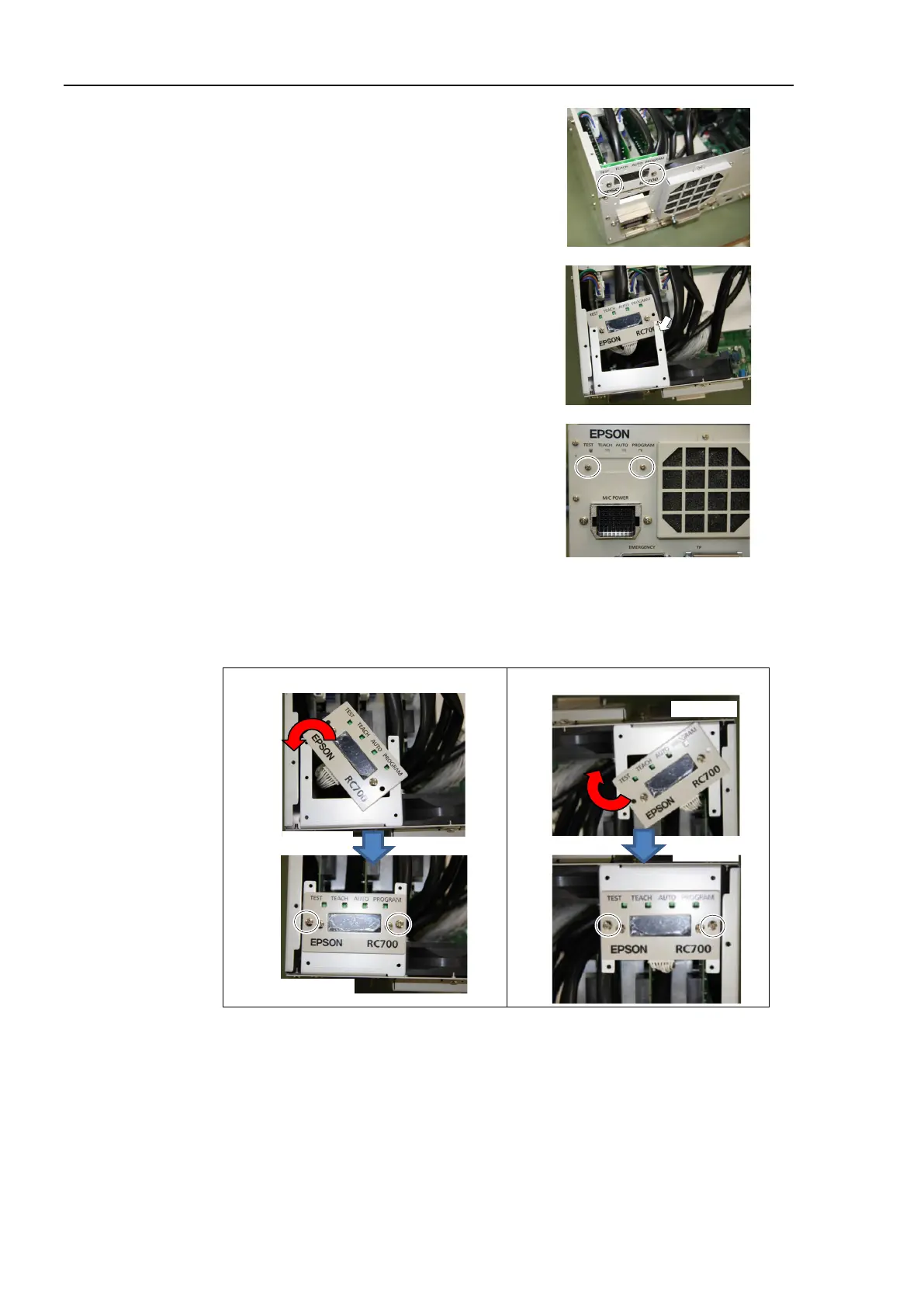

Mount the LED
DISPLAY PLATE to the LED/7
segment board. (Mounting screw
×2)
When installing the LED DISPLAY PLATE, be
careful not to drop any screw inside the
controller.
(6)
Mount the LED DISPLAY FIXING PLATE to
the controller.
(Mounting screw×2)
(7)
Mount the LED DISPLAY PLATE to the LED DISPLAY FIXING PLATE.
(Mounting screw
×2)
There are two installation methods.
Turn the LED DISPLAY PLATE horizontally to the
Top Cover in the direction
indicated by a red arrow.
Wall mounting with the front side down
Front side
Front side
(1)
(2)
Wall mounting with the front side up
Fron
t
side
Front side
(1)
(2)
Be careful not to pull the cable.

NOTE

NOTE

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
