ER1 User Guide A-11

Assembling Your Unassembled ER1

STOP!!! Have you read the Getting to Know the Parts section? This section gives you the

necessary information on the robot parts. Remember to refer to this section if you need

further clarification on the assembly instructions. Remember to check your parts against

the Getting to Know the Parts section to make sure you have received all of the parts you

will need to build your ER1.

Step 1.

You need:

• Two 8'' XBeams

• 4 U-clips (8 half U-clips)

•Set screws

Instructions:

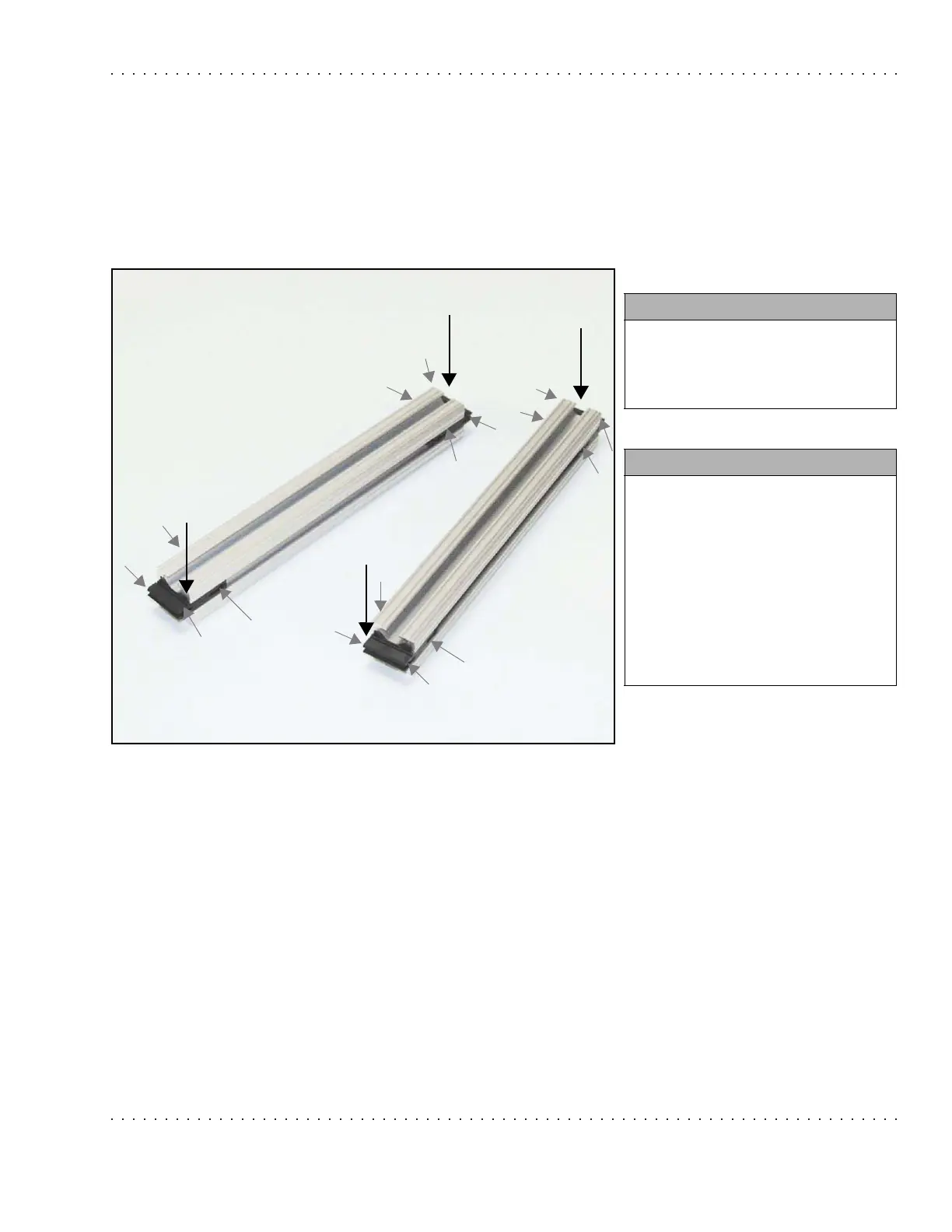

• Snap the U-clips halves together.

• Slide the U-clips into both ends

of the two beams. Make sure that

the U-clips are oriented in the

same plane as shown (see black

arrows).

• Screw in the set screws in the

positions indicated by the gray

arrows.
