Appendix A Assembly Instructions
A-12 ER1 User Guide

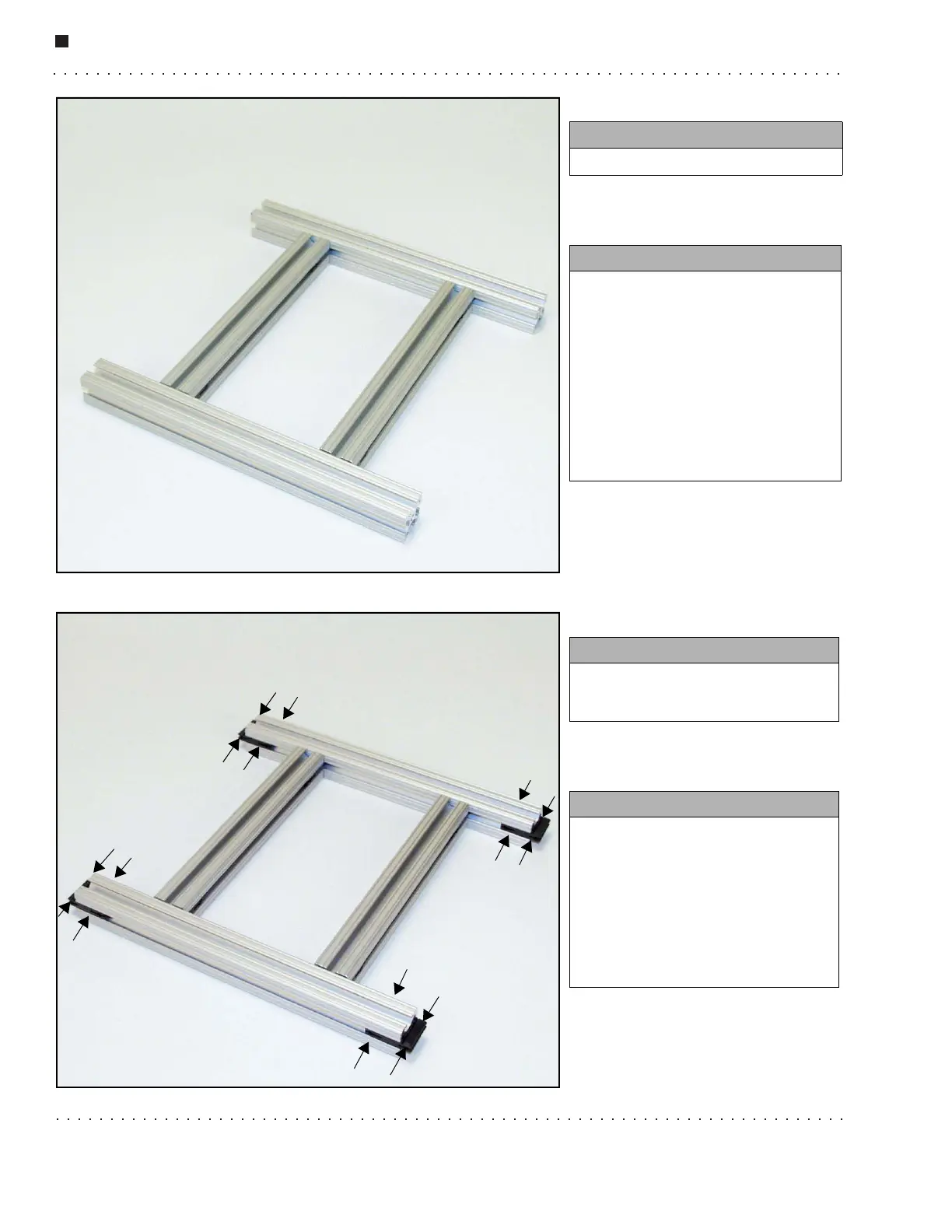

Step 2.
Step 3.
You need:
• Two 10'' beams
Instructions:
• Attach the 10'' beams to the 8''
beams as shown. The easiest way
to do this is by sliding the 10''
beams onto the U-clips.
• The 8'' beams should be placed 2''
from the ends of the 10'' beams.
You can use the 2'' beams to
measure this distance.
• Tighten the set screws as needed.
You need:
• 4 U-clips (8 half U-clips)
•Set screws
Instructions:
• Press the U-clip halves together
to form 4 U-clips.
• Slide the U-clips into the ends of
the beams.
• Screw in the set screws in the
positions shown. (See the
arrows.)
