ER1 User Guide A-19

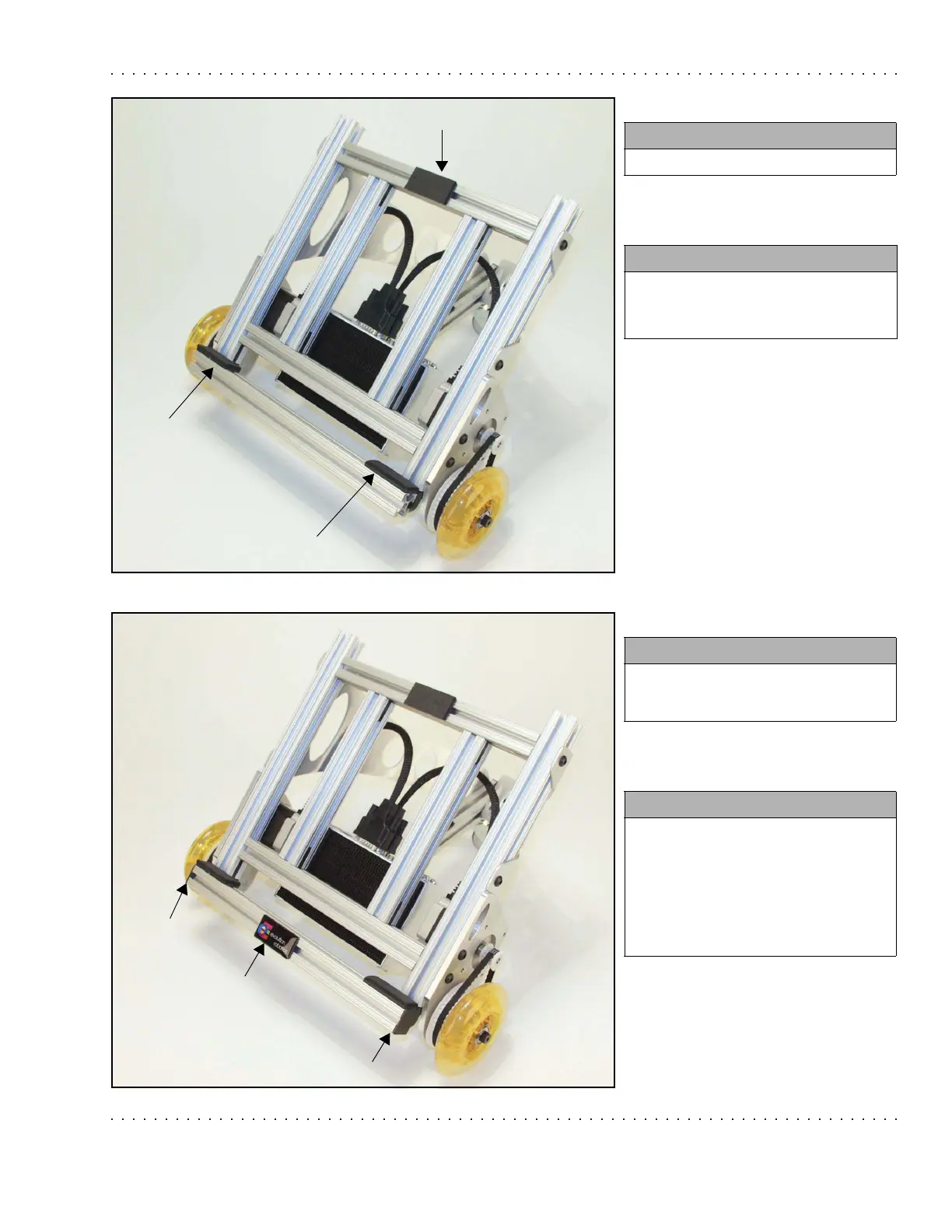

Assembling Your Unassembled ER1
Step 16.
Step 17.
You need:
• 3 1x2 mount plates with foam
Instructions:
• Apply the mount plates by sliding
them into the beams in the
positions shown.
You need:
• 2 endcaps
• Logo plate
Instructions:
• Slide the logo plate onto the
middle of the beam.
• Attach the endcaps to the ends of
the 12'' beam. You may need to
tap these with a small hammer to
get them to seat properly.
