ER1 User Guide A-21
Assembling Your Unassembled ER1

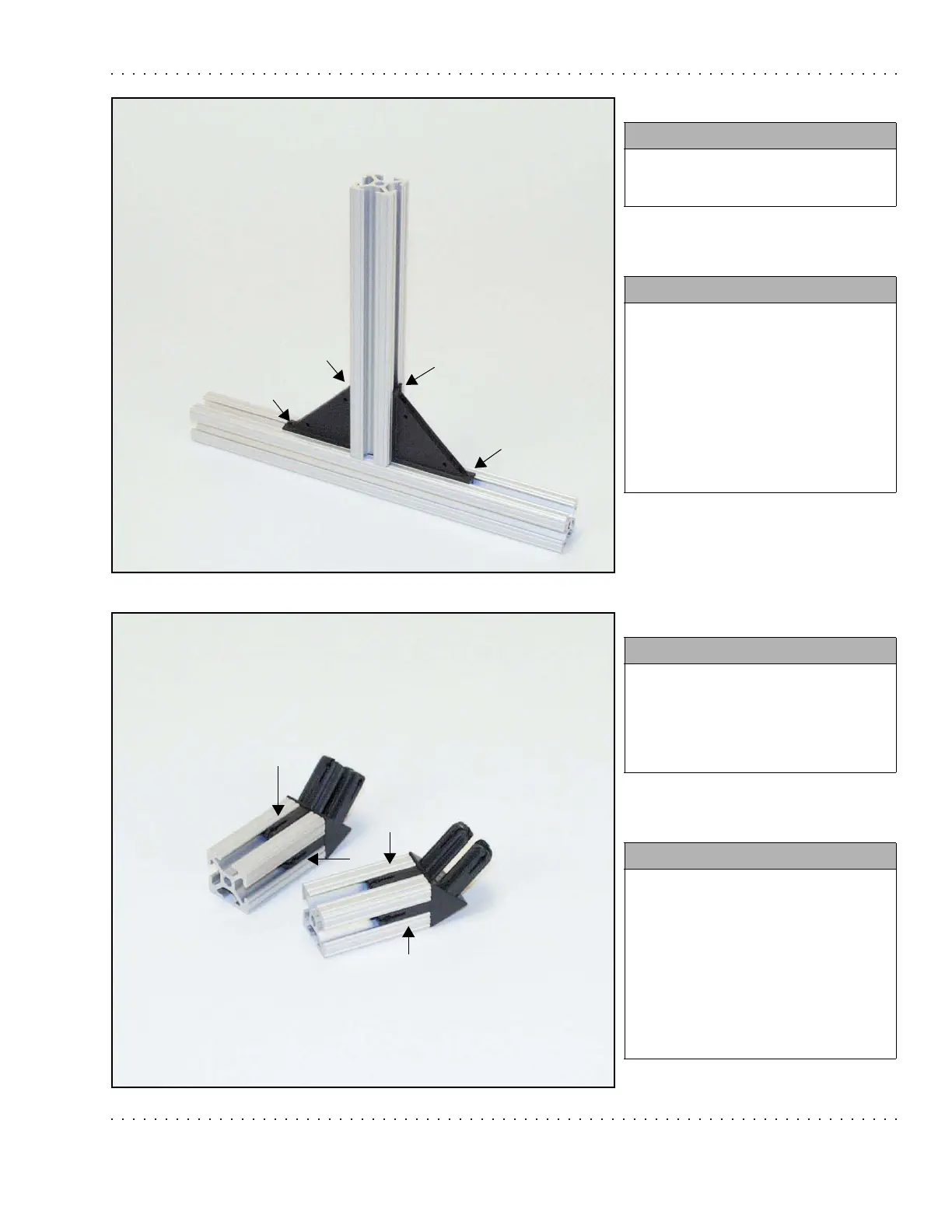

Step 20.
Step 21.
You need:
• 2 whole gussets (4 halves)
•Set screws
Instructions:
• Snap the gussets halves together
• Snap the gussets into place.
• Remember to add the set screws!
There will be some very small
holes toward the center of the
gusset. Do not put set screws in
these holes. Only place set screws
as shown (see arrows).
You need:
• 2 2'' beams
• 2 whole 135
o
connectors
(4 halves)
•Set screws
Instructions:
•Press the 135
o
connector halves
together.
• Slide the 135
o
connectors onto
the ends of the 2'' beams.
• Add the set screws to all four
sides of both of the connectors
(see arrows - not all set screws
are shown).
