ER1 User Guide A-25

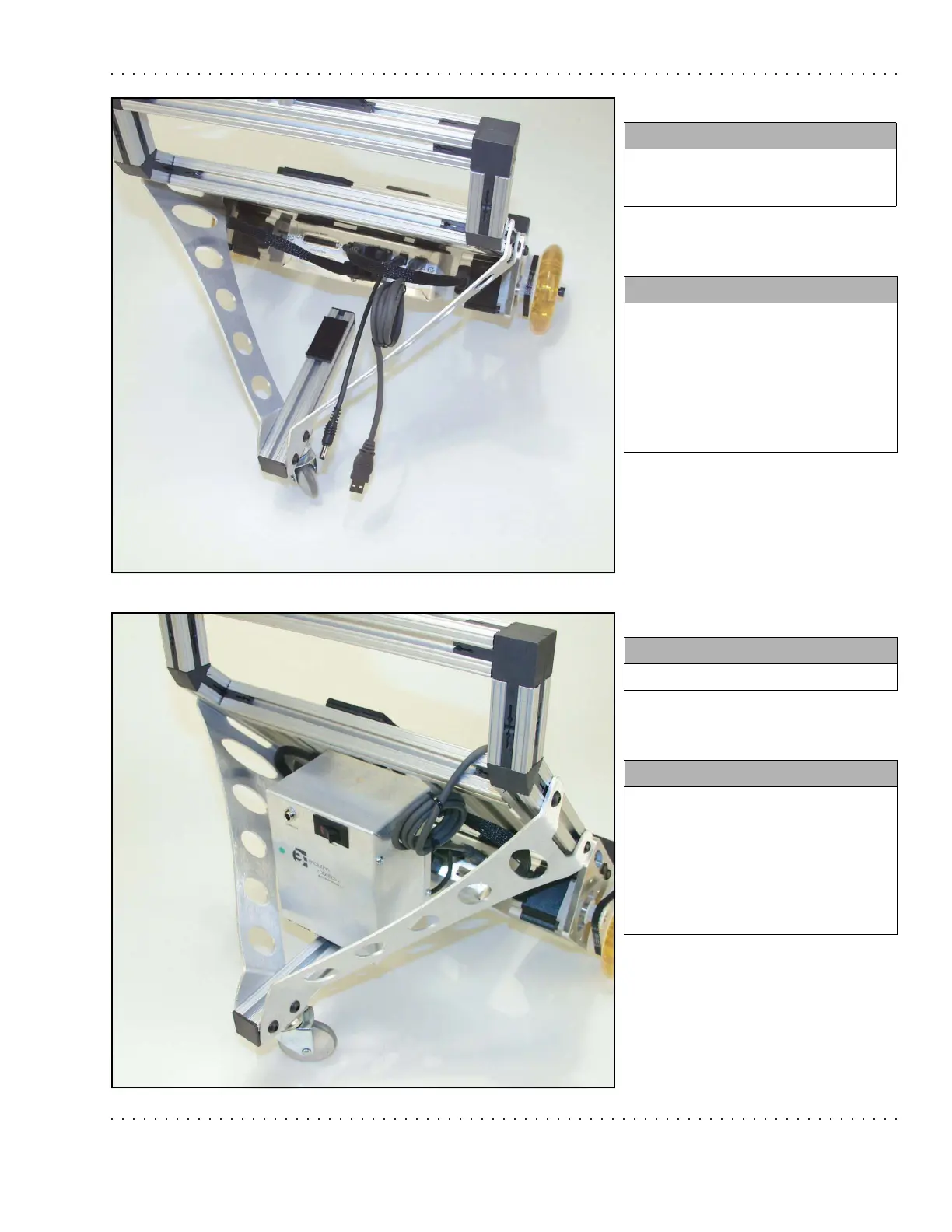

Assembling Your Unassembled ER1
Step 28.
Step 29.
You need:
• 1 power cord
• 1 USB cable
Instructions:
• Attach the power cord to the slot
in the RCM marked power.
• Attach the USB cord to the slot in
the RCM marked USB.
• Tidy up and tuck away all of your
cables.
You need:
• 1 power module
Instructions:
• Secure the power module to the
robot by pressing down until the
the mushroom headed fastner
tape on the 1x2 mounting plate
and the mushroom headed fastner
tape on the bottom of the battery
are interlocked.
